| Type | 3 axle Cargo Semi-trailer | |
| Parameter
|
Overall Dimension (mm) | Length×width×height:13000*2500*600mm（600 is the height of the fence） |
| kingpost | Upper 14mm, lower 16mm, middle 8mm, high 500mm | |
| plate spring | 90mm*13mm*10 pieces | |
| Tare Weight (kg) | 6,500 kg（±5%） | |
| Payload (kg) | 33,500 kg（±5%） | |
| Gross weight (kg) | 40,000 kg（±5%） | |
| Tire | Type: 12R22.5, equip 12pcs per chassis, famous brand from China, optioned by factory | |
| Configuration | Rim | Type: 9.0-22.5, equip 12pcs per chassis |
| Axle | FUWA 13T, 3 sets | |
| Suspension | enforced mechanical suspension | |
| Landing Gear | FUWA 28T | |
| Kingpin | JOST brand 50#or 90# | |
| Brake System | 30/30 type on rear two axles, WABCO brake valve | |
| ABS | Non | |
| Electrical System | 24V, LED lamp | |
| Tool box | 1 set | |
| socket | 7-port socket | |
| side beam | 16# channel steel | |
| Spare tire carrier | 2 set | |
| Air chamber | WABCO 4 pairs 2 single | |
| baseplate | 3mm pattern plate | |
| Mode of transport | Bulk carriers or ro-ro ships, or 40-foot containers | |
PRODUCT DETAIL:

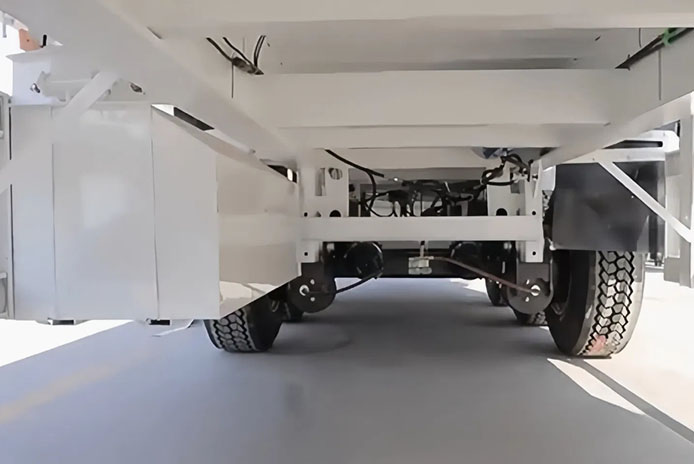

A three-axles semi-trailer is a type of heavy-duty vehicle. It typically has a long and sturdy trailer body that is connected to a tractor unit. The three axles are designed to evenly distribute the weight of heavy cargo loads, allowing it to carry a significant amount of freight. It is commonly used in the transportation industry for hauling various goods over long distances on highways and major roads. This configuration provides enhanced stability and load-bearing capacity compared to trailers with fewer axles, making it suitable for transporting bulky and heavy items such as construction materials, industrial machinery, and large containers.
