Outdoor Stage Promotion Performance Show Dance Speech Stage Truck with LED Screen Mobile Performance Truck

Outline dimension (mm) 11950*2500*3950
Wheel base(mm) 1900+5400
Loading capacity (kg) 4000
GVW (kg) 19500

FEATURES

Product Details



Vehicle main dimension Overall dimension(LxWxH)mm 11950*2500*3950
wheel base(mm) 1900+5400
Overhang(front/rear)(mm) 1495/3155
Approach/Departure angle 17/20
Weight in KGS GVW 19500
Curb weight 17370
Loading capacity 4000
Chassis model HFC1251P2K3D54S1V
Max driving speed(km/h) 98
Engine Brand Wuxi Diesel engine
Model CA6DLD-22E5
Displacement/power 6600/164
Emission standard Europe 3
Transmission 8gear box ,8 forward ,2 reserve
brake Airbrake
Tire 10.00-20
Power steering
Body Cargo body Dimension LxWxH *

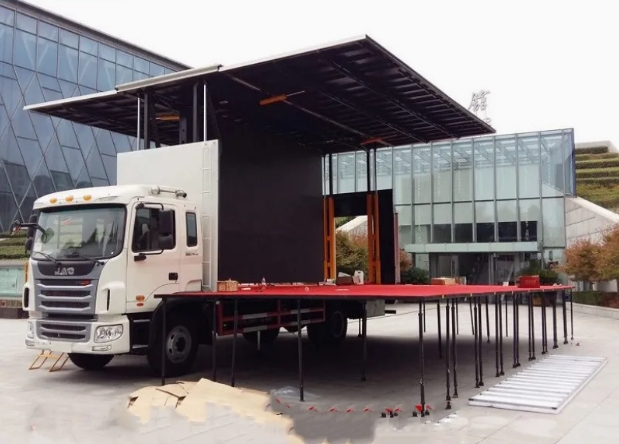

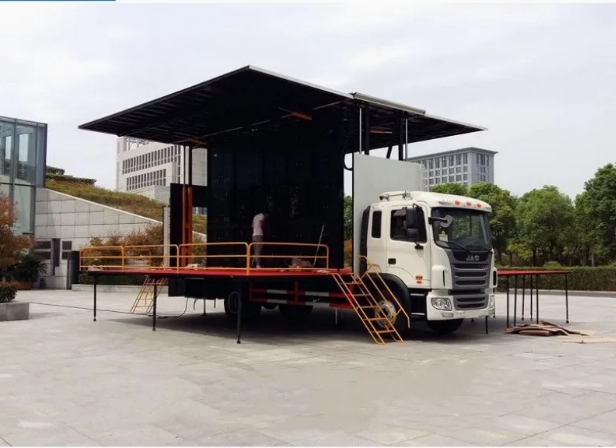

Open method Sided start the car on both sides of the plate can be expanded, with the top stage of the formation of the vehicle roof, side panels for folding box, after the show through the hydraulic system and the vehicle compartment floor forming stage mesa, chassis frame section has a supporting device
Accessory Hydraulic outrigger, power distribution box ,step ladder
Side plate open method One side open, two side open, three side open for option
