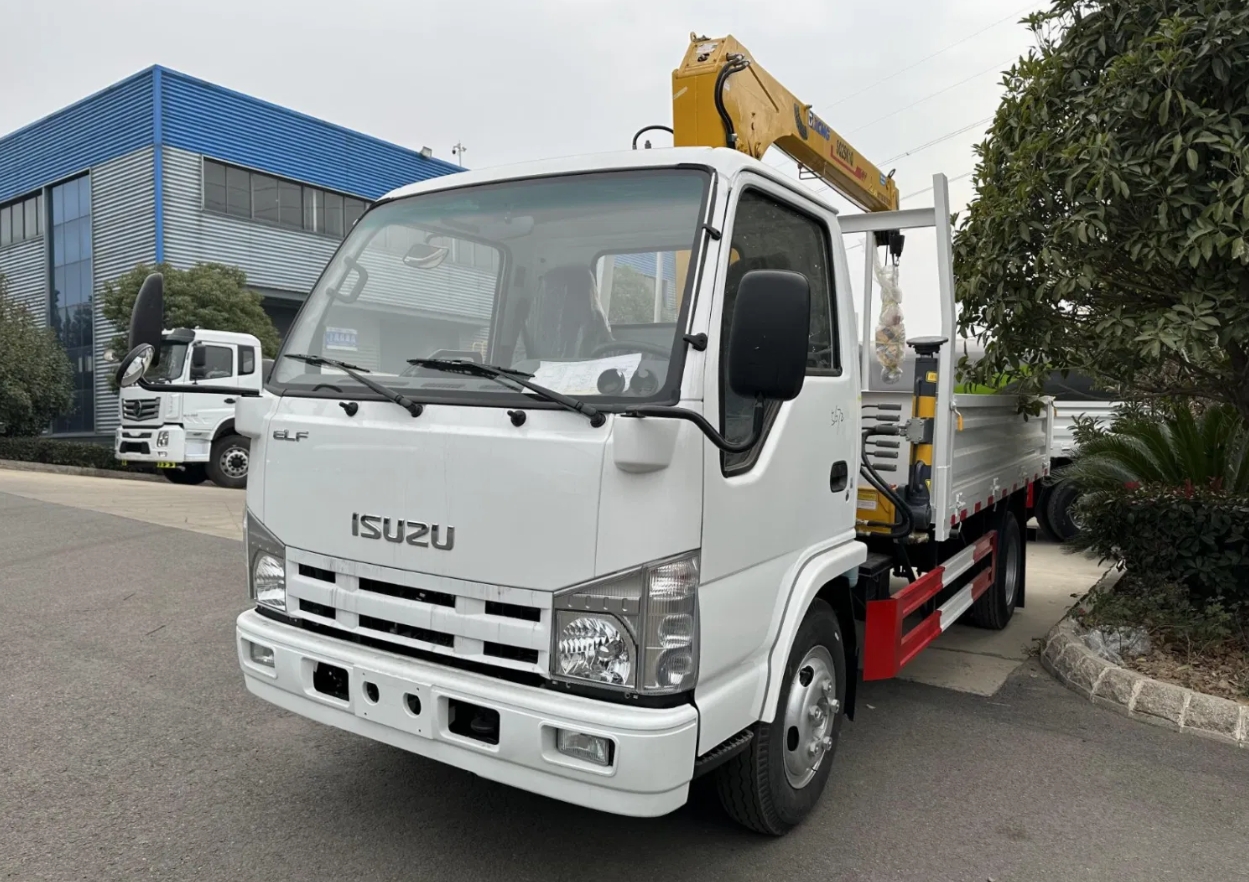

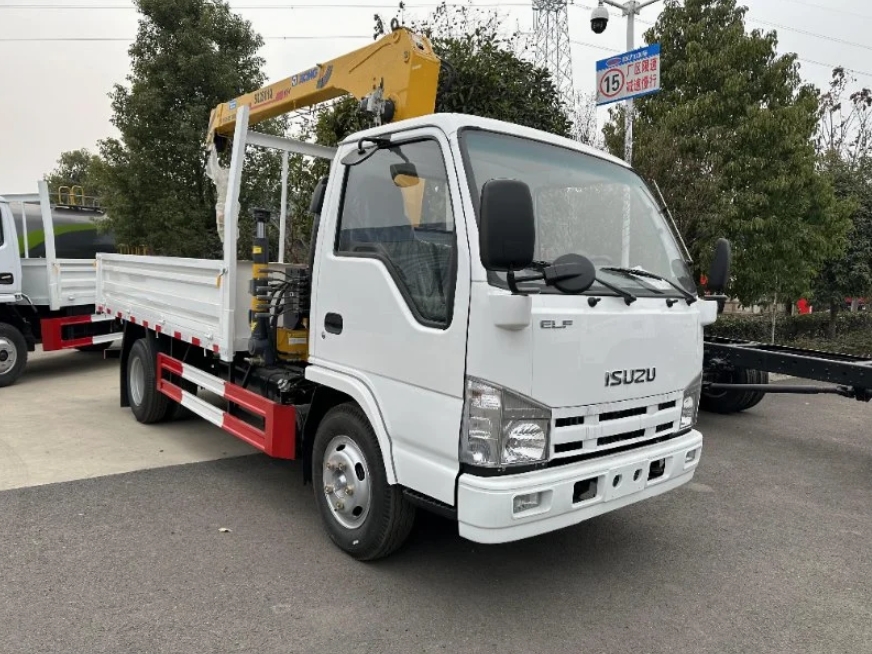

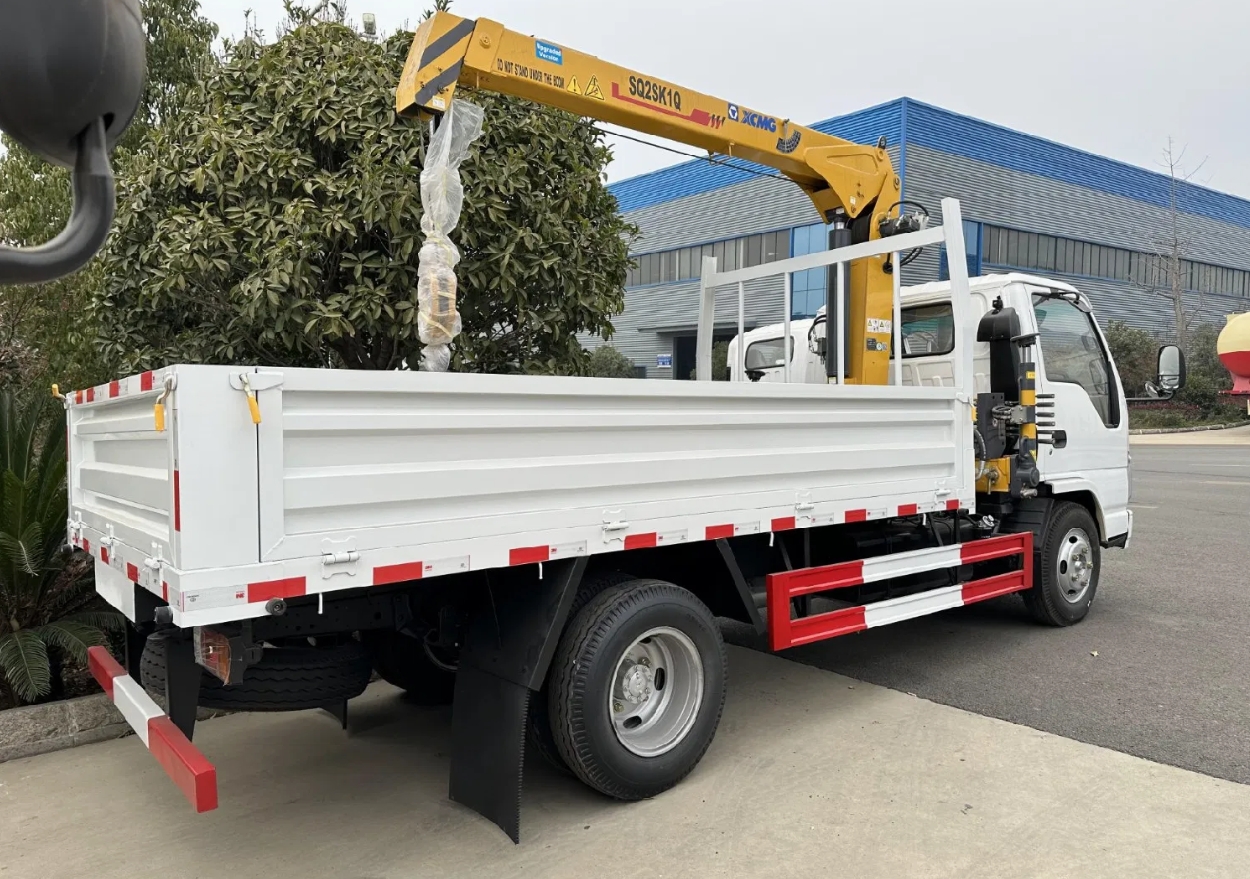

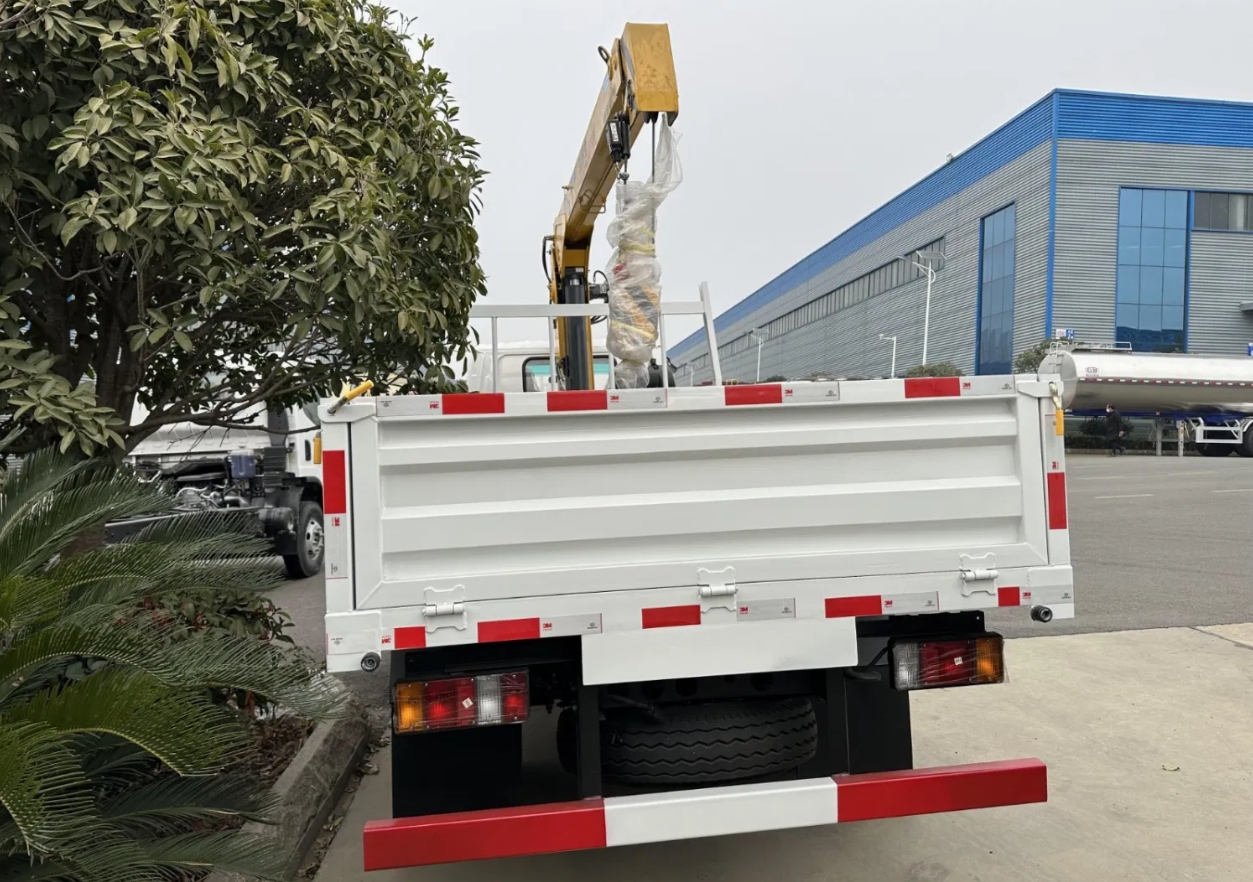

Folding Crane One Cargo 3.2tons ISUZU Truck for sale

Product Name 3.2ton boom crane on ISUZU cargo truck
Maximum Lifting Weight 2-4t
Laoding Weigh 5 Tons
Crane Jib Three-Arm

FEATURES

Product Details

Main Technical Parameter
Product Name 3.2ton boom crane on ISUZU cargo truck Overall Dimension(L*W*H)(mm) 6000*2500*2700
Wheelbase(mm) 3360 Compartment Dimension(L*W*H)(mm) 4000×2294×550
F/ R suspension(mm) 1250/2650 Front/Rear tread(mm) 1940/1860
Number of Axles 2 Curb weight(kg) 8980
Approach/ departure angle (° ) 32/15 Max Speed (km/h) 85
Cab capacity 3 Cab Type Flat proof, one and half row
Chassis Parameter
Chassis Model QL1050 Chassis manufacturer QING LING Motor Co., Ltd
Gear Box 8JS105TA Transmission type Manual
Steering Type LHD Traction Type 4*2
Brake System Number of Tire 6 with a spare
Axle loading 5.5tons/10tons Tire size/type 7.00R16
Engine parameter
Engine Model isu zu Engine manufacturer Yuchai Engine
Fuel type diesel Displacement(ml) 7250
Emission stand Euro 2 Power(kw) 176(240hp)
Operation System Electrically Hydraulic Control Electric system 24V

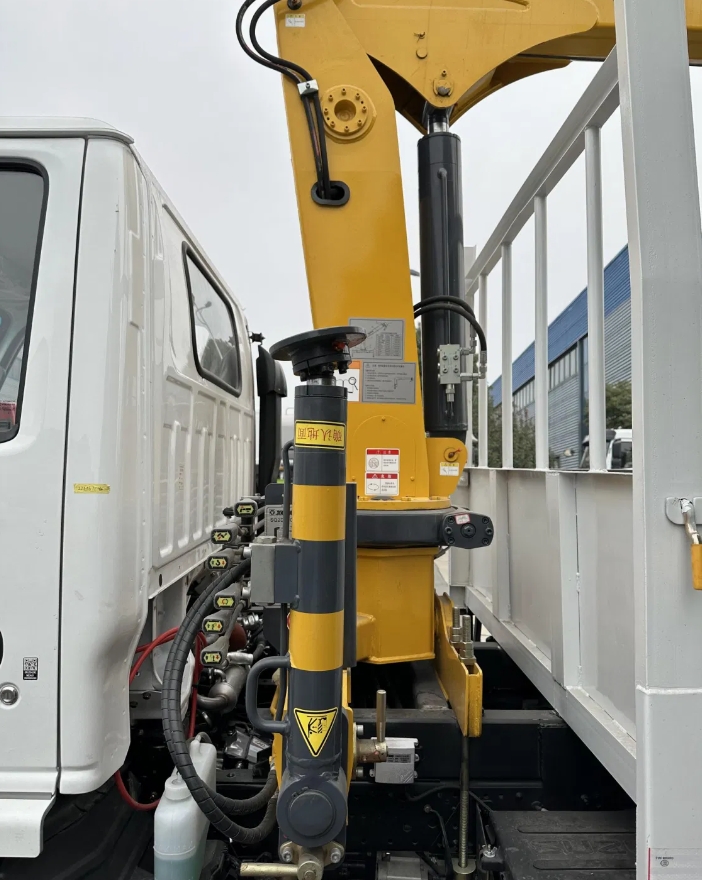

Equipment & Performance 1 .Equipped with straight arm SQ3.2SK3Q 4 arms Crane, optional other
2. Max lift quality:6300kg, Max Lifting Moment:20(T.M)
3. Work radius:11.5m, Max lift height:13.5m, span:5.8m; stella 0086 13297255  87
4.Operate left or right, up or down, and 360° rotation ,reliable quality, long service life, work fast.
5. H- type front hydraulic outrigger
6. Designed different form truck of crane as per the customer’ request ,as water truck with cranesuSU

    Message:

    Custom FAQs

    China sepcial truck is an enterprise with extensive influence and outstanding achievements in the field of special vehicles..We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

    The types of special-purpose vehicles we export are extremely rich and varied, covering dump trucks, sprinkler trucks, oil tank trucks, advertising vehicles, engineering operation vehicles and many others. This wide range of products can fully meet the diverse needs of different customers.

    We have a strict quality control system. Every link from raw material procurement to production and processing is subject to strict inspection. At the same time, our vehicles have passed a series of international certifications, such as ISO quality system certification, etc., to ensure reliable product quality.

    We usually use sea transportation for shipping.  According to customer requirements, railway transportation or road transportation can also be selected. We will cooperate with professional logistics companies to ensure that vehicles are safely and timely delivered to destinations. function. What’s more, the plasma cutting also is available.

    Delivery time depends on multiple factors including vehicle model, order quantity, transportation method, etc. Generally speaking, it takes several months from signing the contract to delivering the vehicle. We will clearly specify the delivery time in the contract and do our best to complete the delivery according to the agreed time.
