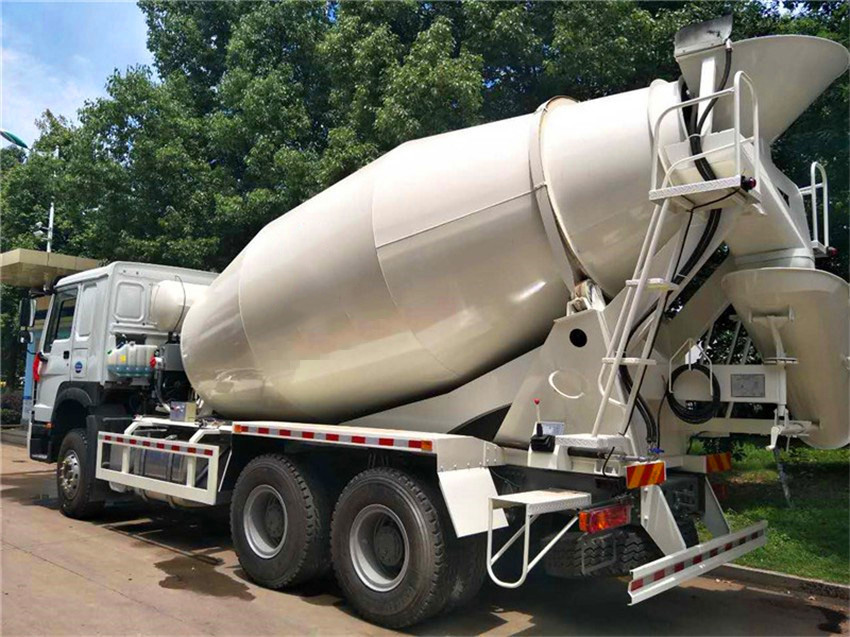

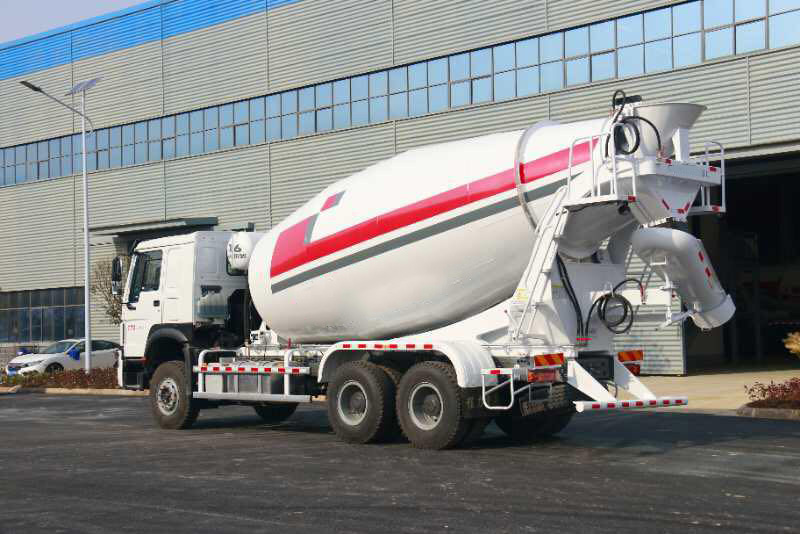

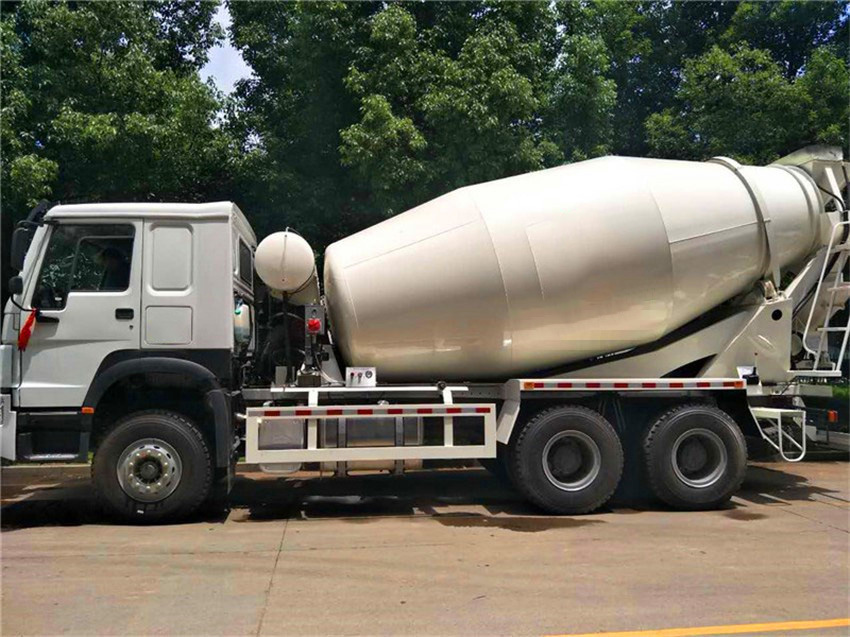

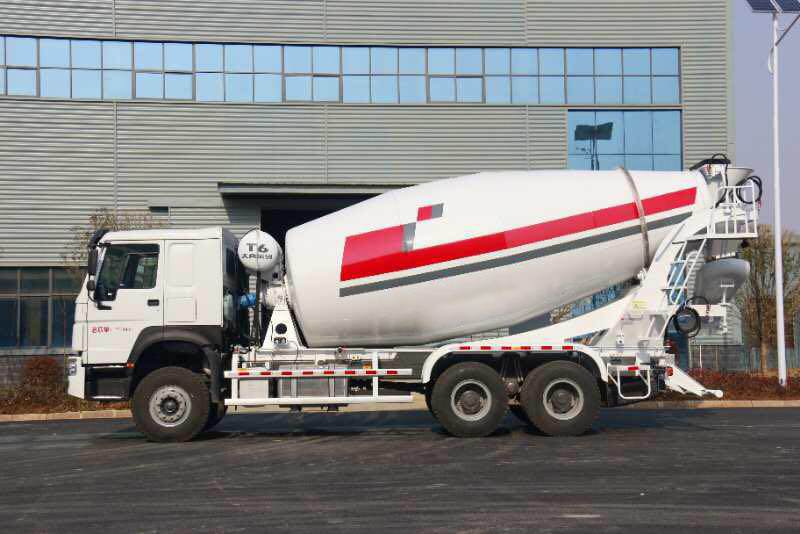

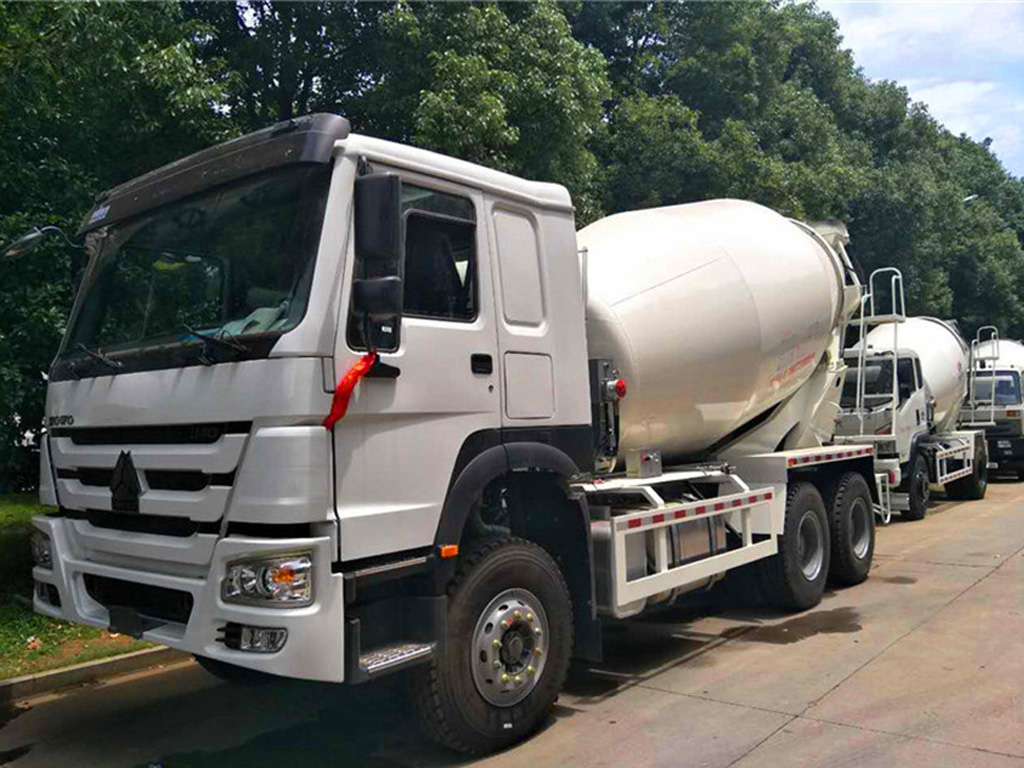

Specification of Sinotruk 6*4 12m3 Concrete mixer Truck
| Specification of Sinotruk 6*4 12m3 Concrete mixer Truck | ||
| Drive model | 6×4/LHD | |
| Max. Driving Speed(km/h) | 75 | |
| Cabin | Passengers Allowed in front row | 3 persons |
| Vehicle | Curb Weight(kg) | 12770 |
| Overall Dimensions(L x W x H)(mm) | 8600*2500*3700 | |
| Approach/Departure angle(°) | 21/15 | |
| Wheel Base(mm) | 3600+1350 | |
| Overhang (front/rear) (mm) | 1320/2330 | |
| Wheel Track (front/rear) (mm) | 1995/1820/1850 | |
| Axle charge(front/rear)(ton) | 43664 | |
| Tire | 12.00R20 ,10 wheels with one spare tire | |
| Engine | Model | WD615.69 |
| Air-in Type | TURBO, inter-cooling | |
| Engine Type | Vertical, In-line, water-cooling, 4 strokes | |
| Fuel | Diesel | |
| MAX Power(HP) | 336 | |
| Emission standard | Euro Ⅱ | |
| Cylinder Number | 6 | |
| Rated Speed(RPM) | 2200 | |
| MAX Torque(N.M) | 1350 | |
| Displacement(L) | 9.726 | |
| Gear Box | Model | HW15710 |
| Shift | 10manual | |
| Reverse shift | 2 | |
| Rated Speed(RPM) | 2600 | |
| MAX Torque(N.M) | 1500 | |
| Upper part | ||
| Mixing Drum | Capacity | 14cubic meters |
| Shell Material | Alloy steel(special wear-resistant material, | |
| enhance the service life of tank at least 3 times) | ||
| Lining Material | 16Mn 6mm alloy steel | |
| End plate Material | 8mm alloy steel | |
| Blade Material | Bao Steel 520 5mm alloy steel (equipped with | |
| wear-resistant strip, longer service time) | ||
| Feed Rate (m3/min) | ≥3 | |
| Discharging Rate(m3/min) | ≥2 | |
| Discharging Residual Ratio(%) | ≤0.5 | |
| Discharging Rage | 180° | |
| Operation mode | Control panel in cabin or on each side the | |
| mixer tank | ||
| Hydraulic system | Hydraulic pump | America Sauer or America Eaton |
| Hydraulic motor | America Sauer or America Eaton | |
| Radiator | Chinese brand | |
| Reducer | Italy PMP or Italy Bonfiglioli or Germany ZF | |
| Water Tank | Volume(L) | 400 |
| Supply system | Air-pressure | |
| Description | Provide water to concrete during transportation | |
| and to cool down the hydraulic system. With | ||
| wash-hand device. | ||
