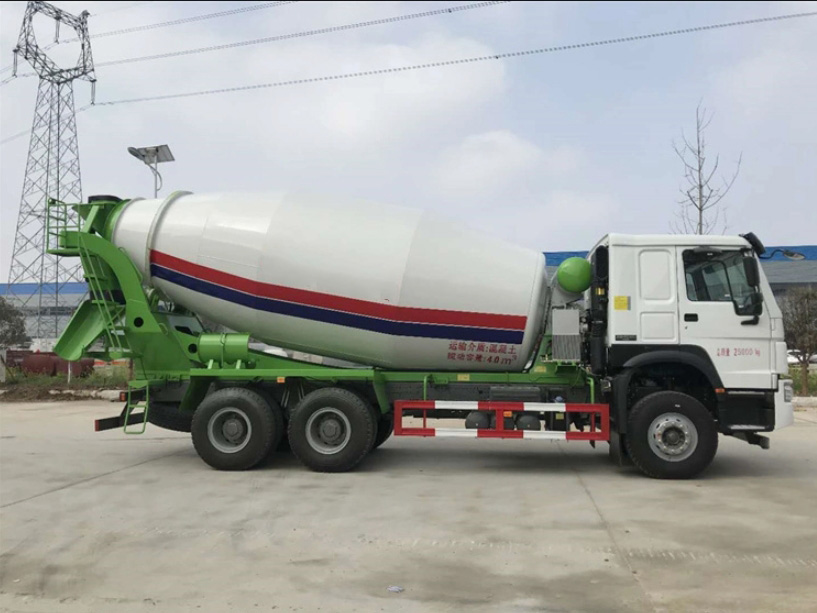

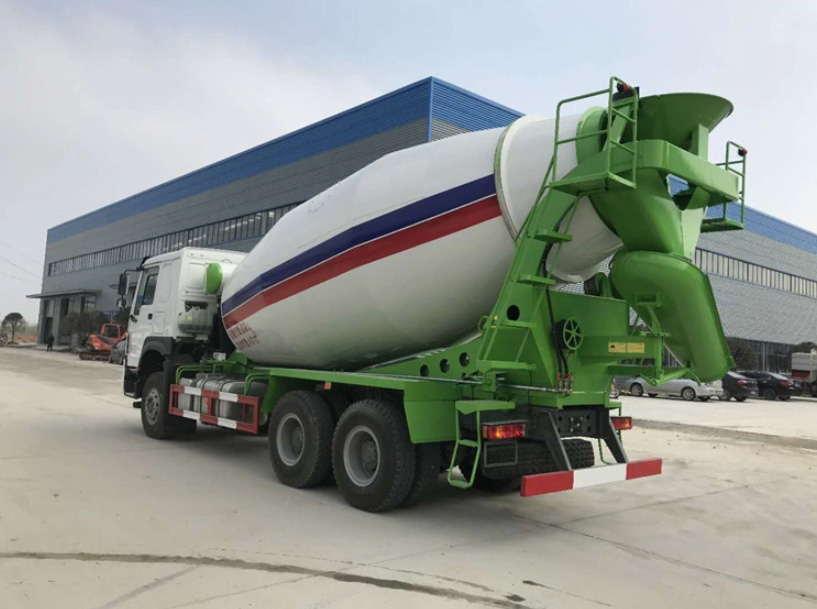

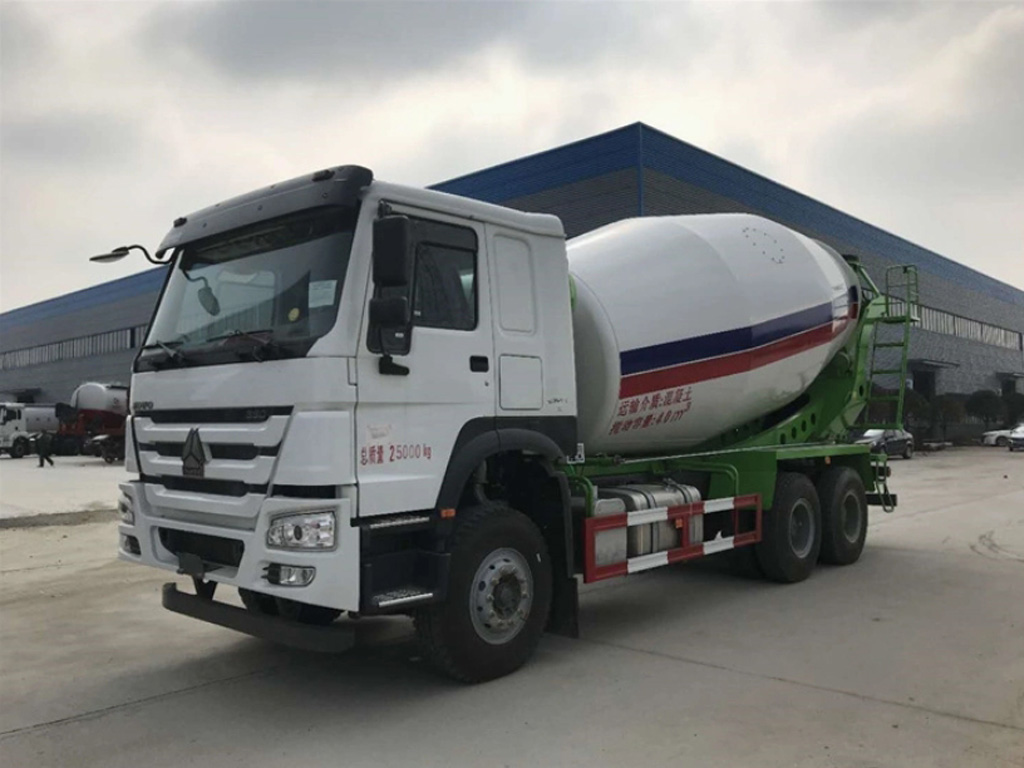

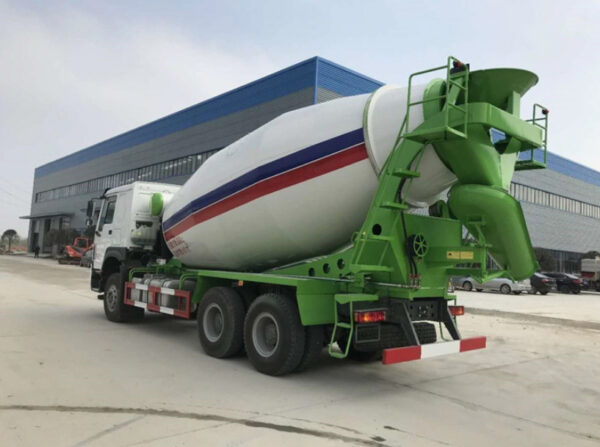

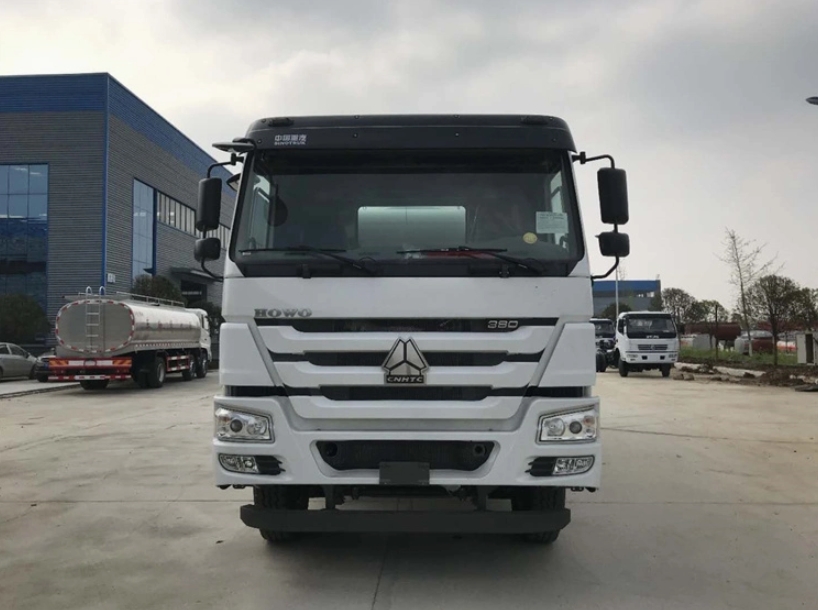

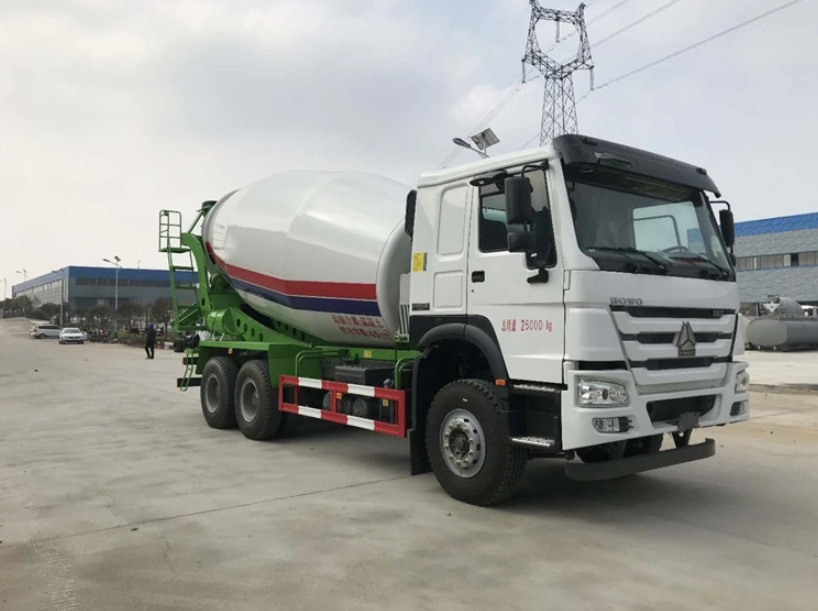

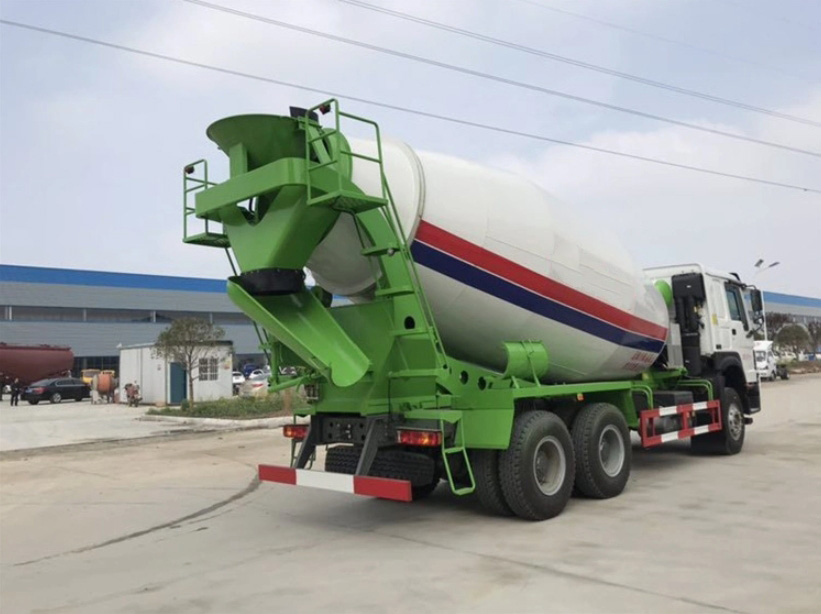

Concrete Cement Mixer Truck HOWO Sinotruck 6X4 Volume 12 Cubic Euro2 Mixer China Manufacturer



Vehicle Howo concrete mixer truck
Overall dimensions (mm) 9760x2500x3990
tank dimensions (m³) 12
Curb weight (kg) Appro×14370

FEATURES

Product Details

ITEM UNIT PARAMETER
Vehicle Howo concrete mixer truck
Overall dimensions mm 9760x2500x3990
tank dimention 12
GVW kg Appro×25000
Curb weight kg Appro×14370
Payload kg Appro×10630
Wheel base mm 4600+1350
F/R track base 2022/1830
F/R suspension 1250/2500
Approach/departure angle ° 18/15
Max speed km/h 90
Axle Load kg 7000/16000
Drive system 6×4 Emission standard Eu 3
Tire specification 12.00-20 Number of axles 3
Steering Power Transmission HF15710,  10F&2R
Cab passenger 3 Cab passenger 24V
Engine model Manufacturer China National Heavy Duty Truck Group Co ., Ltd
Model WD615.69
Emission/kw 9726ml/247Kw, 336hp
Gear box 10F&2R
type Diesel, 6 cylinder , direct-line, turbocharge and water cooling
Standard configuration 1. Water Tank for drum 500L washing,

2. Speed reducer: Italy PMP.

3. Hydraulic pump and Motor:Italy PMP.

4. Tank material: Q345
