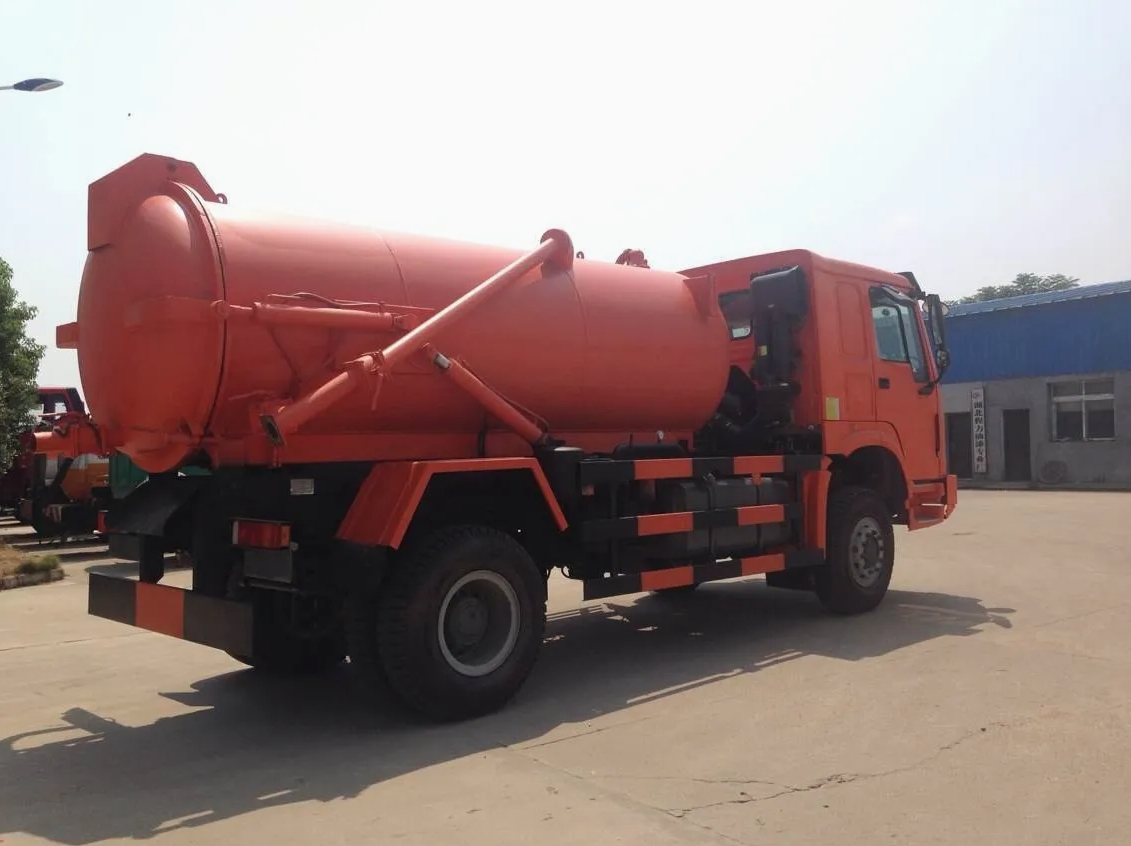

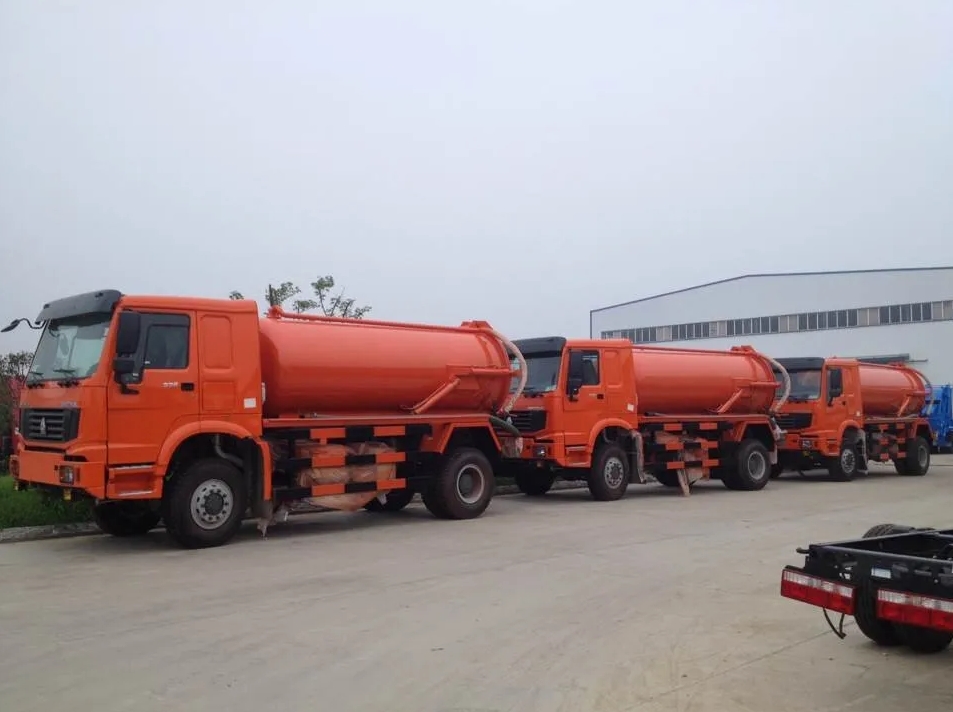

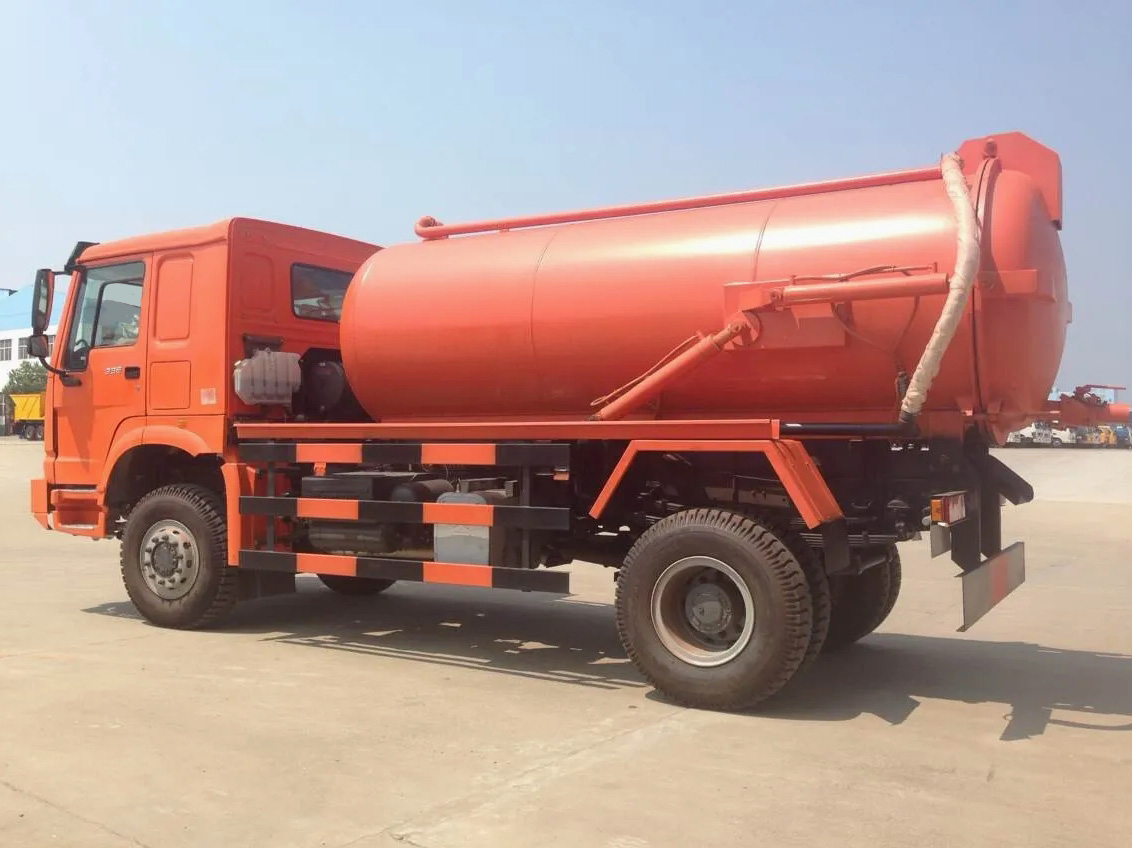

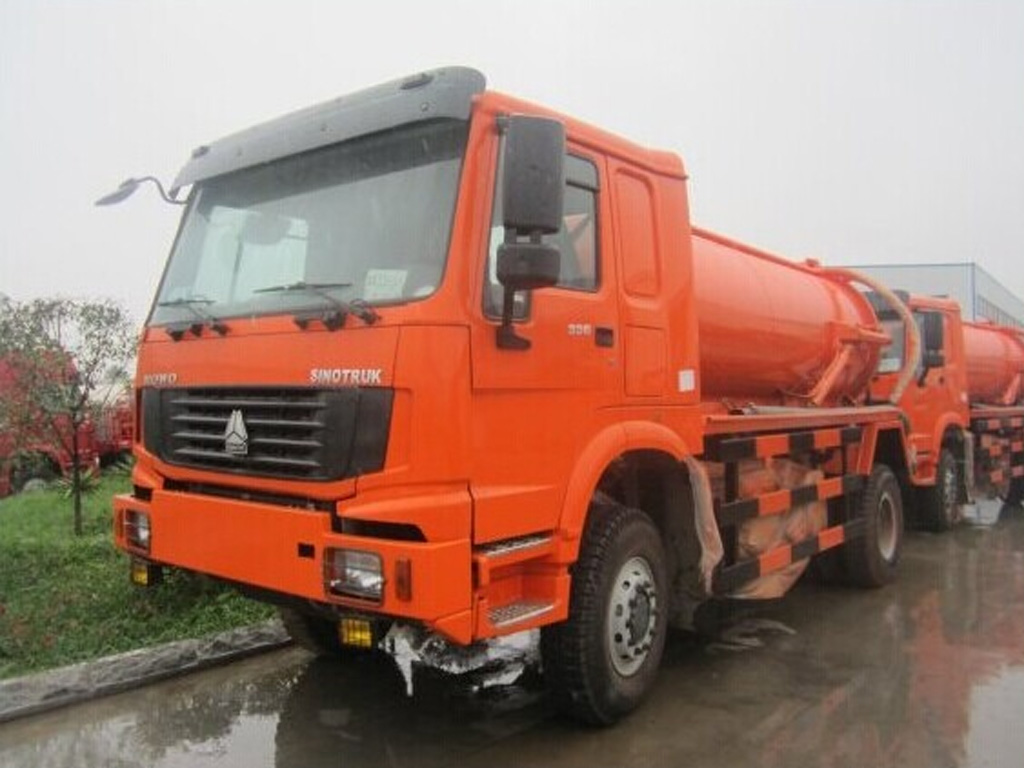

HOWO Suction Sewage Truck 4×2 8m3 High Suction Pressure Blower Drain Cleaning Toilet Truck

Tanker capacity (L)     8000
Wheelbase (mm) 4600
Overall Dimension (mm) 7700*2470*3300

FEATURES

Product Details

Mian Technology Parameter
Model Name HOWO 4×2 suction sewage truck 8m3
Driving Type 4×2,Left hand drive
Weights
Max loading (kg) 12000
Curb weight (kg) 7600
Dimensions
Wheelbase(mm) 4600
Overall Dimension(mm) 7700×2470×3300
Tanker capacity 8000L
 Max speed(km/h) 85
Engine
 Engine model WD615.92E (266HP)
Engine type 4 stroke water-cooled, inter-cooling
No. of cylinders straight-6 cylinders
Displacement(L) 9.726L
Max. output (kw) 196kw
Drive Line
Transmission HW13710CL,10 speeds ,10 forwards,2 reverse gear, manual operation
Steering Power steering
Brake Air brake
Cab
Cabin HW76
Standard configuration Sound, Air container
Axle
Front axle HF7
Rear axle MCY13
Tire specification
Tire specification 11R22.5  standard tire,6 tires+1 spare tire
Suction sewage truck
Vacuum pump Hangzhou Weilong vacuum pump:  68/7000

Rotate Speed:800r/min

Absolute Working pressure:7000pa(93%)

Theoretic Pump speed:68L/s

Shaft power:5kw

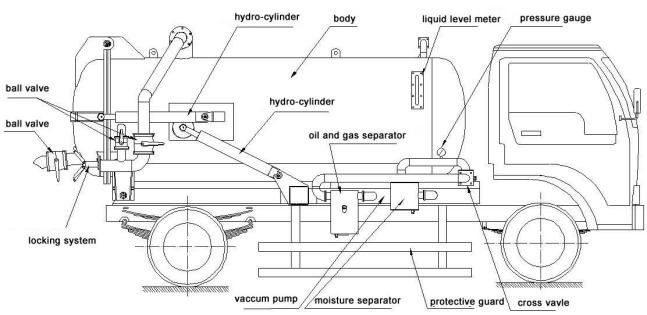

Introduction Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment, Time for full suction<5min
Other
Electric system 24V
Equipment A tool box
