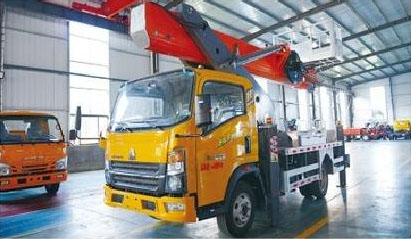

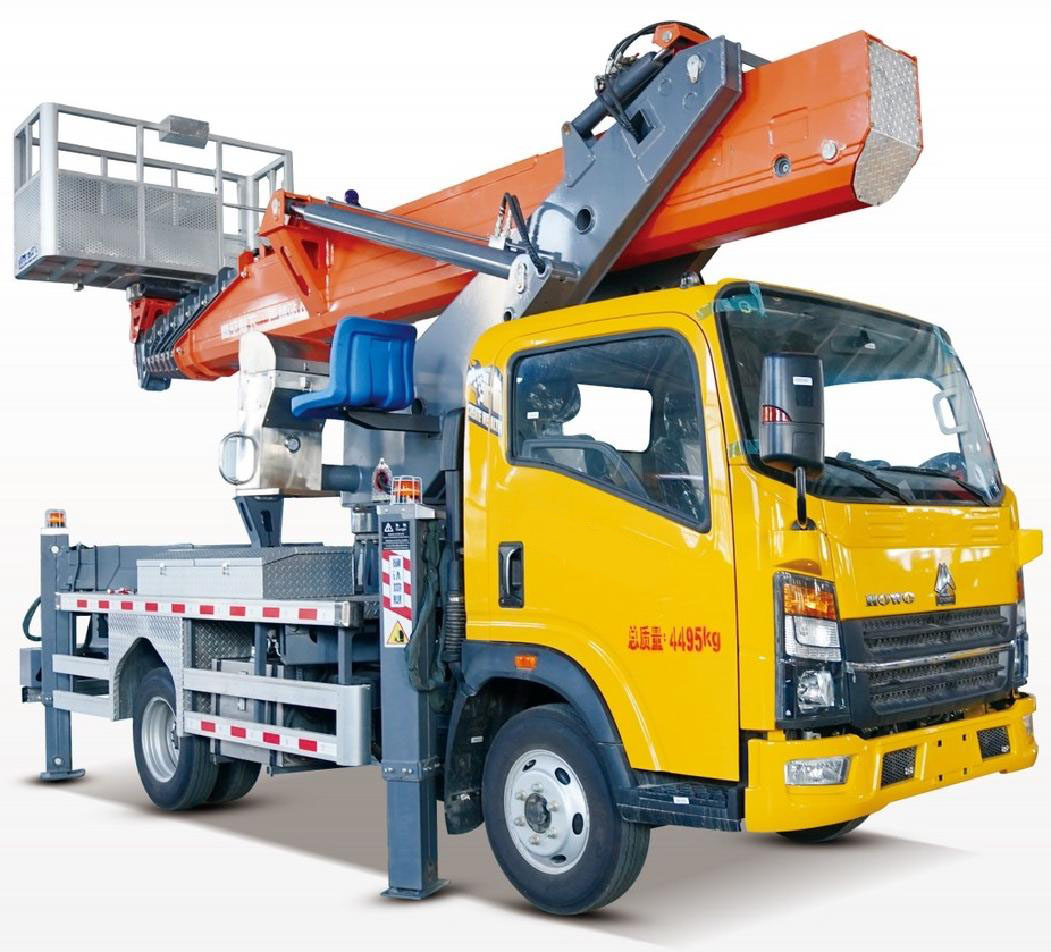

Driving state technical parameters
| Category | Item | Parameter |
| Dimension parameters | Total length (mm) | 5995 |
| Total width (mm) | 2060 | |
| Total height (mm) | 3150 | |
| Mass parameters | Number of occupants (including driver) (person) | 2 |
| Gross mass (kg) | 4495 | |
| Main performance parameters | Maximum load of working platform (kg) | 200 |
| Maximum working height (m) | 35.5 | |
| Maximum working range (m) | Single: 21; Double: 18 | |
| Working height at maximum working range (m) | 26.7 | |
| Working range at maximum working height (m) | 4.7 | |
| Leg span/longitudinal (mm) | 5500 | |
| Leg span/lateral (mm) | 5940 | |
| Rotation of working platform (°) | 360 | |
| Driving parameters | Front overhang (mm) | 1100 |
| Rear overhang (mm) | 1800 | |
| Wheelbase (mm) | 2800 | |
| Maximum traveling speed (km/h) | 100 | |
| Minimum ground clearance (mm) | 190 | |
| Approach angle (°) | 19 | |
| Departure angle (°) | 12 | |
Configuration description |
||
| Item | Parameter | |
| Chassis parameters | Engine model | WP2.3Q140E62 |
| Engine displacement (ml) | 2289 | |
| Power (kw) | 103 | |
| Tire model | 650R16 | |

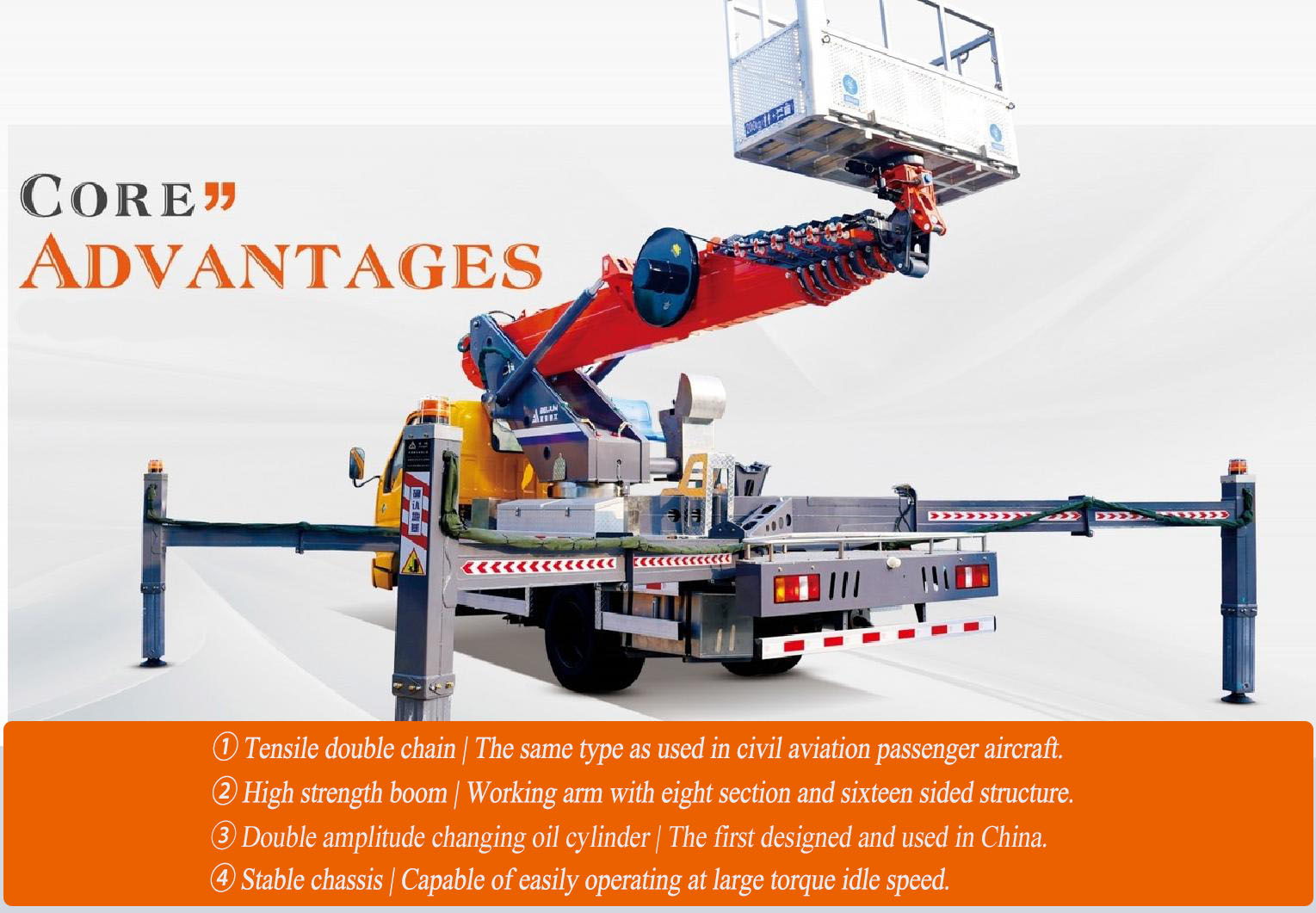

| boom | Boom form | Eight-section synchronous telescopic boom |
| Material | High-strength steel 3mm – 4mm | |
| Boom section | Hexadecagon | |
| Luffing | Double-cylinder luffing, more safe and stable | |
| Luffing angle | 0° – 78° (relative to horizontal plane) | |
| Safety device | Limit indicator light | |
| Support leg | Support leg form | Front and rear X-shaped: 2 sections horizontally. |
| Support leg material | High-strength steel/5mm – 6mm. | |
| Support leg span | Longitudinally 5500mm, laterally 5940mm | |
| hydraulic lock | All four support legs are equipped with two-way hydraulic locks. | |
| Support leg safety device | Detection switch, alarm indicator light, instrument, and level gauge. | |
| Support leg strobe light | Yellow; four in total at the front and rear. | |
| Working platform | Side and rear protection | There are two toolboxes on each side. |
| Turntable | Slewing bearing | Xuzhou Saiyue horizontal slewing. |
| Rotation | 360° rotation to the left and right. | |
| Reducer | Reducer，1 | |
| Hydraulic motor | 1 | |
| Hanging basket | Rated load | ≤300kg |
| Material | High-quality carbon steel square tube. | |
| Leveling form | Static hydraulic automatic leveling. | |
| Rotation | Electric 360° continuous rotation. | |
| Safety belt | Two pairs. | |
| Leveling device | Hydraulic cylinder leveling. | |
| hydraulic system | Hydraulic oil tank | 200L; with liquid level gauge. |
| Gear pump | Quantitative pump, flow rate 32ml/r. | |
| Working pressure | With pressure gauge; 20MPa. | |
| Hydraulic valve group | Electro-hydraulic proportional valve group, with manual emergency button. | |
| Emergency pump | Electric emergency pump. | |
| Oil cylinder | 13; with two-way balance valve or hydraulic lock to ensure safety. | |
| Operating system | Support legs | Manual operation. Each support leg can be adjusted independently. There is an interlock for getting on and off the vehicle. |
| Operation mode | Electric control and wireless remote control. | |
| Boom action | Operation from the comfortable seat in the operation room installed on the turntable and wireless remote control operation of the hanging basket. | |
| Engine start and shutdown | Dual-position operation on the turntable and in the hanging basket. | |
| Engine throttle | Remote electronic throttle. | |
| Paint | Famous brand paint; smooth color and beautiful lines. | |
| Markings and signs | Clear, eye-catching and permanent without fading. | |

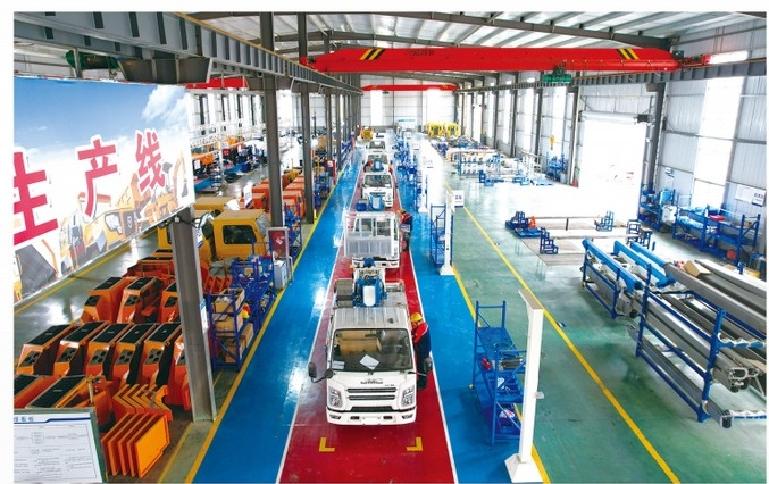

Excellent manufacturing process
① Whole vehicle powder spraying process
Through processes such as shot blasting, electrostatic spraying, high – temperature curing, and cooling, a hard coating film is formed on the vehicle body, with higher wear – resistance and anti – corrosion properties.
② High standard welding process
The boom adopts three dimensional flexible welding technology, with dense welding seams, beautiful formation, and no slag on the surface.
At the same time, the double – sided boring, milling, and planning process is used to improve the smoothness and integrity of the boom, and the high – precision processing and installation are seamless.

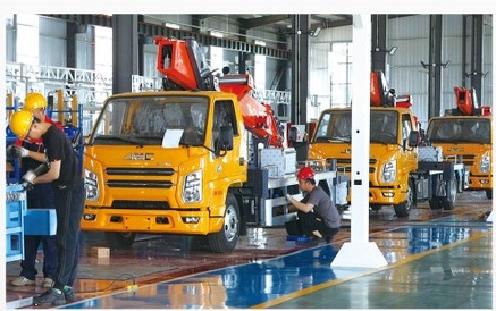

③ Assembly process
The torque of all bolts is measured by torque wrenches, effectively improving the reliability of component connections and enhancing anti – loosening ability.
Perfect safety devices
① Automatic interlocking device for getting off:
Prevent danger caused by incorrect operation.
② Second level safety early warning device:
When the vehicle has a virtual leg, the system will automatically issue a safety hazard alarm.
③ Horizontal detection function:
Detect the horizontal state of the entire vehicle in real time to ensure that the vehicle is always level.
④ Emergency braking system:
In case of sudden accidents, operations can be stopped urgently, improving operation safety in complex environments.
⑤ Manual emergency pump:
When the main pump of the main engine fails, the manual emergency pump will be activated to safely send the workers to the ground and retract the entire vehicle to the driving state.
⑥ Nighttime safety warning devices:
Each outrigger is equipped with an engineering strobe light to constantly remind passersby to keep away. In addition, it is also equipped with lighting lamps to facilitate operations at night.
