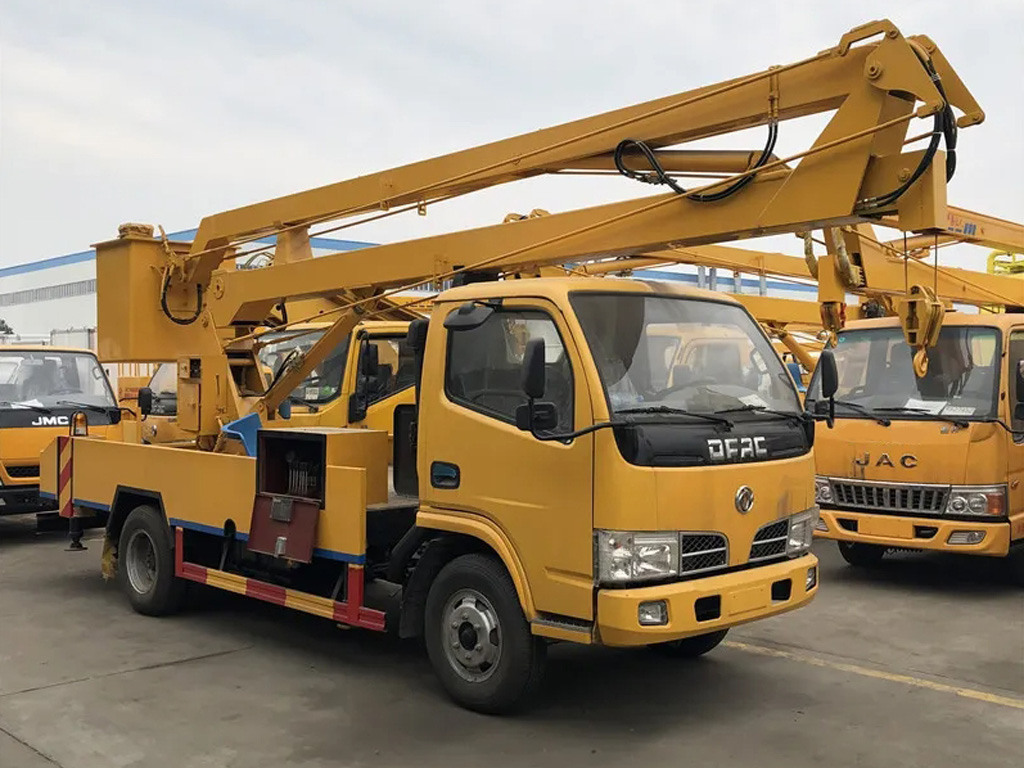

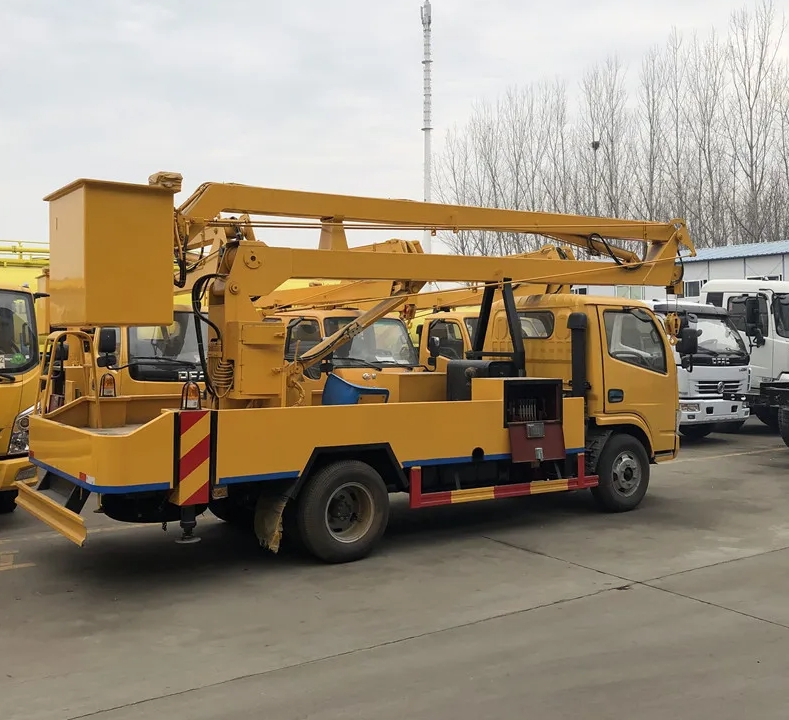

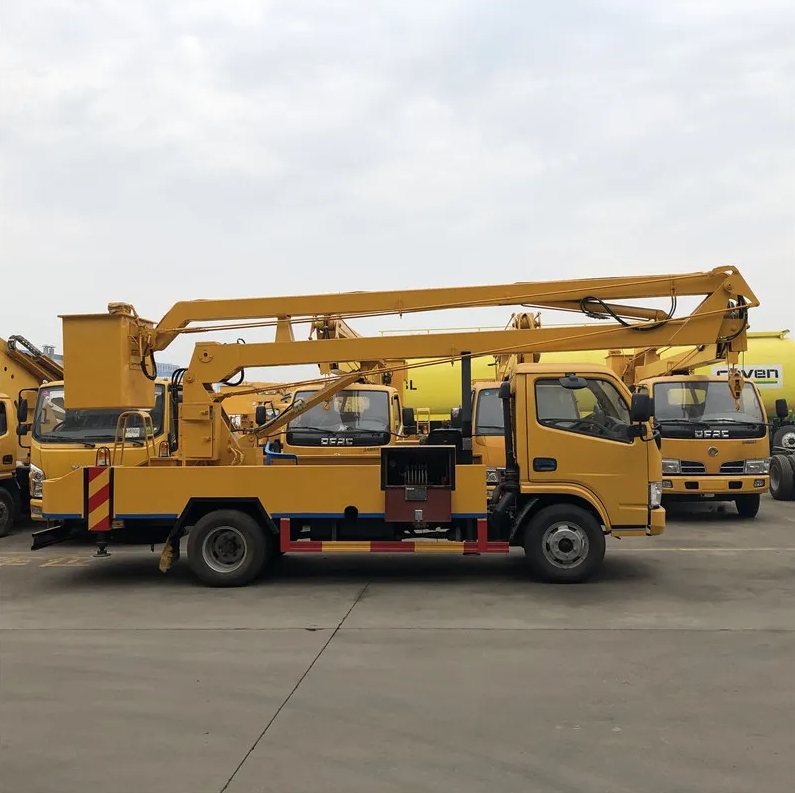

High Altitude Operation Aerial Work 12m Hydraulic Aerial Cage Lift Truck China Manufacturer

Vehicle High altitude work truck
Overall dimension (mm) 7400*1980*3110
GVW (kg) Appro×4325
Curb weight (kg) Appro×4000



FEATURES

Product Details

ITEM UNIT PARAMETER
Vehicle high altitude work truck
Overall dimension mm 7400x1980x3110
GVW kg Appro×4325
Curb weight kg Appro×4000
Payload kg Appro×325
Wheel base mm 3300
F/R track base 1506/1466
Approach/departure angle ° 19/11
Suspension mm 1032/1968
Max speed km/h 95
Drive system 4×2 Steel Power,
Tire specification 7.00-16/7 units Number of axles 2
Engine model Manufacturer Dongfeng Chaoyang Chaoyang Power Co., Ltd.
/ CY4100Q
Emission/kw 3707ml/66Kw, 90Hp
type Five gear transmission
Configuration 1, Double cabin

2, Air condition

3, With USB interface radio

4, Oil brake with vacuum booster pump

5, Working height 10m

    Message:

    Custom FAQs

    China sepcial truck is an enterprise with extensive influence and outstanding achievements in the field of special vehicles..We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

    The types of special-purpose vehicles we export are extremely rich and varied, covering dump trucks, sprinkler trucks, oil tank trucks, advertising vehicles, engineering operation vehicles and many others. This wide range of products can fully meet the diverse needs of different customers.

    We have a strict quality control system. Every link from raw material procurement to production and processing is subject to strict inspection. At the same time, our vehicles have passed a series of international certifications, such as ISO quality system certification, etc., to ensure reliable product quality.

    We usually use sea transportation for shipping.  According to customer requirements, railway transportation or road transportation can also be selected. We will cooperate with professional logistics companies to ensure that vehicles are safely and timely delivered to destinations. function. What’s more, the plasma cutting also is available.

    Delivery time depends on multiple factors including vehicle model, order quantity, transportation method, etc. Generally speaking, it takes several months from signing the contract to delivering the vehicle. We will clearly specify the delivery time in the contract and do our best to complete the delivery according to the agreed time.
