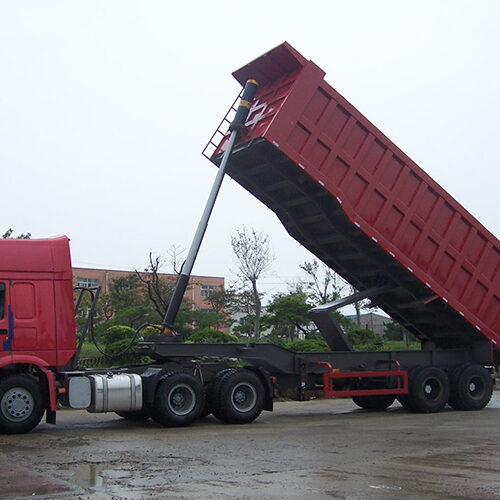

Type | Gooseneck Rear dumping trailer |
Weight | |
Tare Weight | 9600KG |
Payload | 30m³ |
Specification | |
Axle specs. | 3axles *13T FUWA |
Suspension | Common mechanical suspensions |
King Pin | JOST 2.00inch traction pin |
Dimensions | Out side dimension:10000*2500*3970 |
Rim | 9.00-22.5 |
Tire specs. | 12.00R22.5 |
Landing legs | JOST brand |
Lifting system | Full set of HYVA 196 hydraulic system |
Tire | |
Number of Tire | 12pieces |
Spare Tire Carriers | 2 pieces |
Frame: (specs. and materials) | |
Main frame | Main frame is height 500mm |
Frame Beam | Upper is16mm, and lower plate is 18mm;middle is8mm(Double+three plate).height is 500 mm |
Frame Floor | The platform thickness is 8mm, side wall plate thickness is 6mm. |
Brake: | |
ABS | 4S/2M |
Brake Chamber | Four double and two single chamber |
Electrical: | |
Voltage | 24V |
Receptacle | 7 ways(7 wire harness) |
Light color: | |
Side marker lamp | Orange |
Rear lamp | Red |
Turn signal lamp | Orange |
Loading legs | 28T |
LED | 1set |
Miscellaneous: | |
Painting | According to the requirement of the buyer |
Marking | According to the requirement of the buyer |
Side Guard | According to the requirement of the buyer |
Tools box | One piece (1*0.5*0.5m) |
