| Type | Flatdeck Interlink tandem trailers |
| Gross Weight | About 7.5 tons |
| Outer side dimension(mm) | 13000mm × 2500mm × 2850mm |
| Loading Capacity (Ton) | ≤ 50T |
| AXLES | 13 T /PER, 3axles FUWA Brand, |
| Tire | 12.00R22.5, 13pieces Triangle or double coin brand |
| Rim | 9.00-22.5, 13pieces China Brand |
| Suspension | Mechanical suspension (America Type) |
| Spring leaf | 90(W)mm*13(Thickness)mm *10pices, heavy duty type |
| King pin | JOST brand 2.0 or 3.5 inch bolts type |

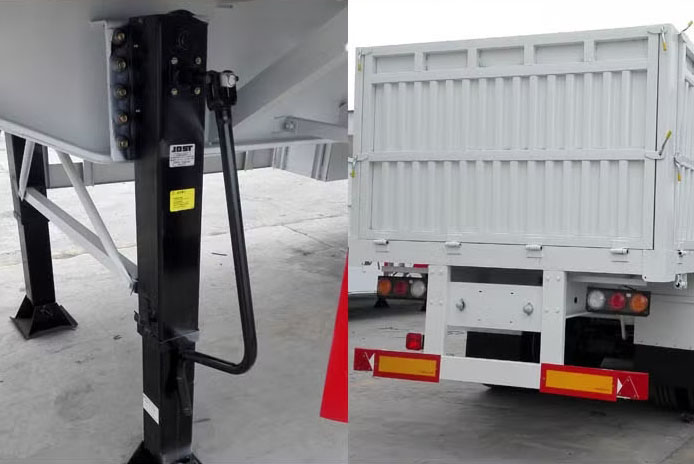

| Support leg | 28T or JOST brand E100 |
| Main Beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel . |
| Plateform | 3mm diamond plate steel |
| Side beam | 16# channel steel |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tank |
| Fuel tank | 1000L |
| Hooks | With |
| Twist Locks | 12 pieces (Lifting type) |
| Valve | WABCO valve |
| ABS | Without |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms | Transport by RORO or 45FT container. |
PRODUCT DETAIL:
