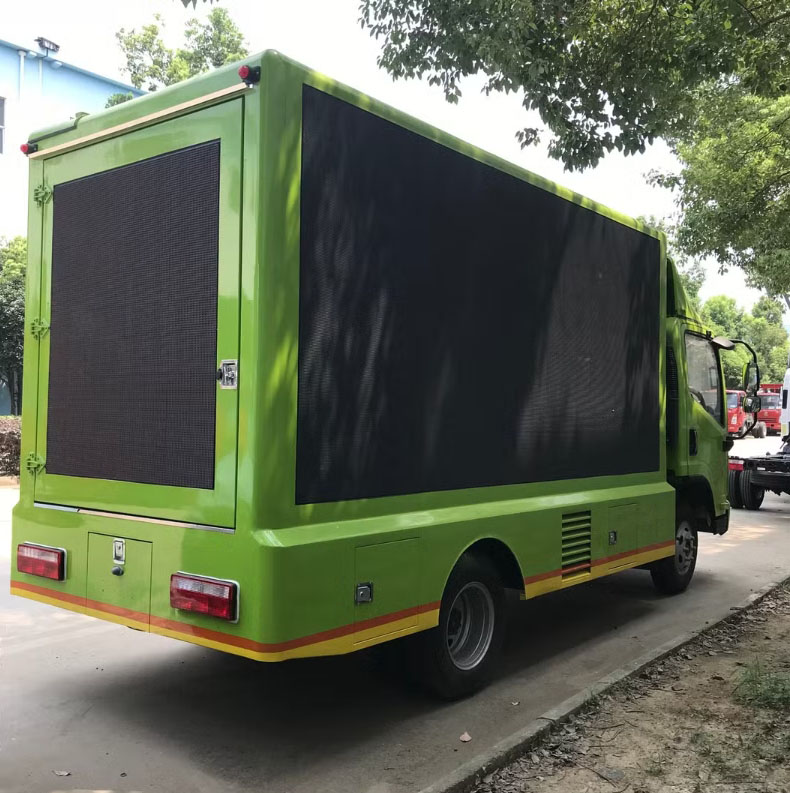

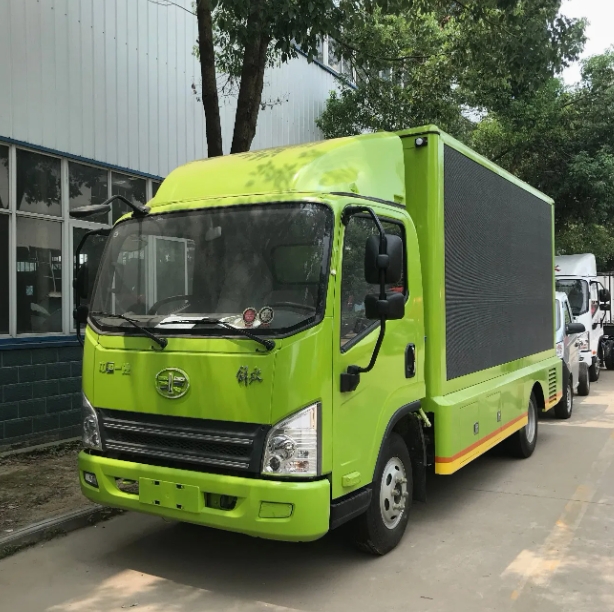

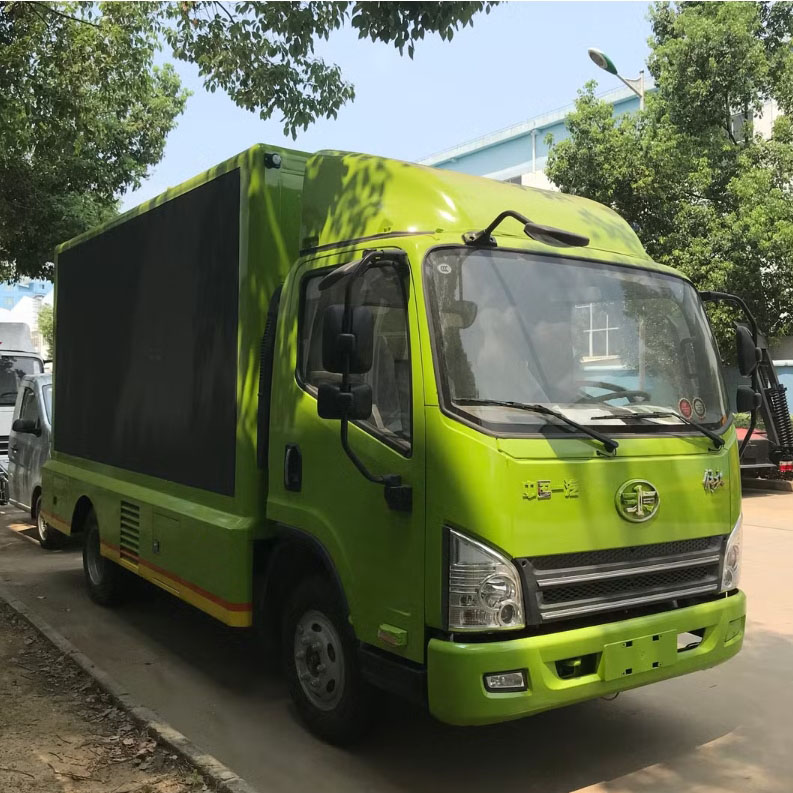

Mobile LED Screen Advertising Truck FAW P6 China Factory



Overall dimension(mm) 5998*2150*3000(REF)
Chassis model CA1044P40K2L1BE4A84
wheel base(mm) 3260
GVW 4490
  • Improve safety devices

  • Excellent manufacturing process

FEATURES

Product Details

Product Info.

Vehicle main dimension Overall dimension(LxWxH)mm 5998*2150*3000(REF)
Chassis model CA1044P40K2L1BE4A84
wheel base(mm) 3260
Weight in KGS GVW 4490
Curb weight 4095
Rear axles loading capacity 4.8Tx1
Max driving speed(km/h) 90
Engine Brand
Model CA4DC2-12E4
(CC)KW 91KW/3168ML
Emission standard Europe IV
Max Torque/speed 220N.m/1700rpm
Transmission 5 speed forward , 1 reverse
Drive system LHD
Tire 7.00-15
Others One spare tyre,power steering ,120L oil tanker
Body Screen Side LED screen square meter 3.84MX1.92M
Rear single color screen size 1.92*1.53M
right &left &rear side are LED screen P6
Generator  High-performance silent diesel,20kw
Cooling system Gree air conditioner
5CM composite steel cabinet, external cold rolled steel, aluminum interior, wooden floor, four hydraulic legs,legs and lifting are key control, ventilation and cooling systems, intelligent power distribution switching systems, computer auxiliary lamp only 2-7 painting switching. Send a Taiwan high with industrial computer, 2 waterproof speakers, a broadcast amplifier, one control station

    Message:

    Custom FAQs

    China sepcial truck is an enterprise with extensive influence and outstanding achievements in the field of special vehicles..We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

    The types of special-purpose vehicles we export are extremely rich and varied, covering dump trucks, sprinkler trucks, oil tank trucks, advertising vehicles, engineering operation vehicles and many others. This wide range of products can fully meet the diverse needs of different customers.

    We have a strict quality control system. Every link from raw material procurement to production and processing is subject to strict inspection. At the same time, our vehicles have passed a series of international certifications, such as ISO quality system certification, etc., to ensure reliable product quality.

    We usually use sea transportation for shipping.  According to customer requirements, railway transportation or road transportation can also be selected. We will cooperate with professional logistics companies to ensure that vehicles are safely and timely delivered to destinations. function. What’s more, the plasma cutting also is available.

    Delivery time depends on multiple factors including vehicle model, order quantity, transportation method, etc. Generally speaking, it takes several months from signing the contract to delivering the vehicle. We will clearly specify the delivery time in the contract and do our best to complete the delivery according to the agreed time.
