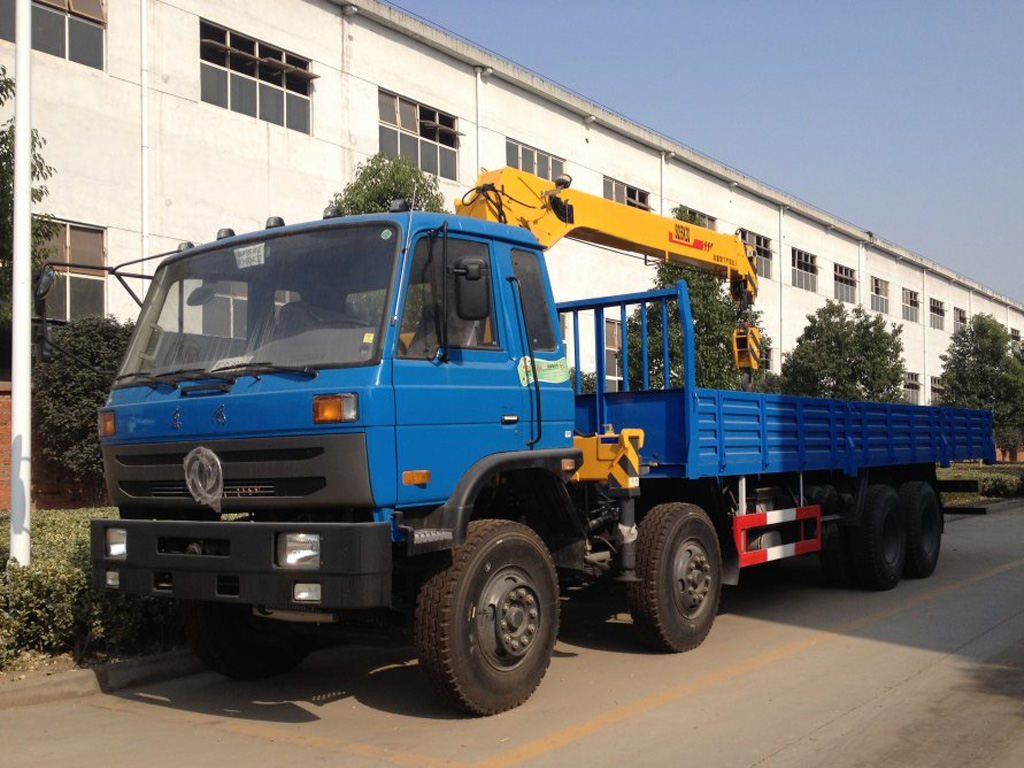

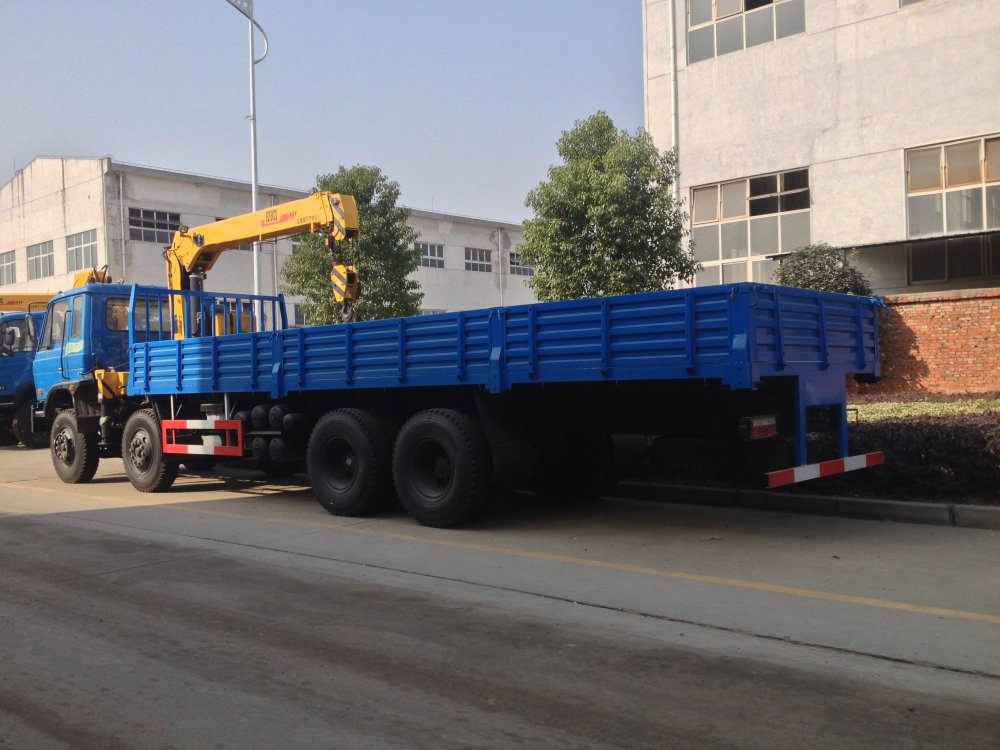

Crane Truck Telescopic Hydraulic Boom Dongfeng 8×4 Crane Truck with Crane China Factory



Product Name Dongfeng 6×4 crane truck
Driving Type 8×4,left hand drive
Rated payload weight(kg) 15000
Curb weight(kg) 12805



FEATURES

Product Details



Product Info.
Product Name  Dongfeng 6×4 crane truck
Driving Type  8×4,left hand drive
Weights
Rated payload weight(kg) 15000
Curb weight(kg) 12805
Dimensions
Wheelbase(mm) 1950+4250+1300
Overall Dimension(mm) 11980×2490×3850
Box dimension 8500×2294×600
Max speed(km/h) 85
Engine
Engine model YC6J260-33
Engine type 4 stroke water-cooled, water-cooling.
No. of cylinders straight-6 cylinders
Displacement(L) 7.256 L
Max. output (kw) 191kw
Drive Line
Transmission 9 speeds,9 forwards,1 reverse gear, manual operation
Steering With power steering
Brake system Air brake
Cab
Air container Have
Standard configuration sound, and so on
Axle
Front axle 5 tons
Rear axle 10 tons
Tire specification
Tire specification 10.00-20 standard tire,10 tires+1 spare tire
Crane
Crane 14 tons or 16 tons

More Models

SQ16SK4Q

Crane model SQ16SK4Q Unit
Max Lifting Capacity 16000 kg
Max Lifting Moment 40 T.M
Recommend Power 45 kw
Max Oil Flow of Hydraulic System 80 L/min
Max Pressure of Hydraulic System 28 MPa
Oil Tank Capacity 260 L
Rotation Angle All Rotation
Crane Weight 6020 kg
Installation Space 1400 mm
SQ16SK4Q
Working radius(m) 2.7 5.6 8.5 11.5 14.5 18.5
Lifting weight(kg) 16000 7000 4200 3200  2200 1000







SQ14SK4Q

Crane model SQ14SK4Q Unit
Max Lifting Capacity 14000 kg
Max Lifting Moment 35 T.M
Recommend Power 32 kw
Max Oil Flow of Hydraulic System 63 L/min
Max Pressure of Hydraulic System 26 MPa
Oil Tank Capacity 160 L
Rotation Angle All Rotation
Crane Weight 4800 kg
Installation Space 1300 mm
SQ14SK4Q
Working radius (m) 2.5 5 8 11 13.2 15.8
Lifting weight(kg) 14000 6000 3500 2300 1800 1200



SQ14ZK4Q

Model SQ14ZK4Q Unit
Max Lifting Moment 35 t.m
Max Lifting Capacity 14000 kg
Recommend Power Needed At Recommend Oil Flow 32 kw
Max Oil Flow of Hydraulic System 63 L/min
Rated Pressure Of Hydraulic System 26 MPa
Oil Tank Capacity 220 L
Rotation Angle All Rotation
Crane Weight 4800 kg
Installation Space 1300 mm
SQ14ZK4Q:
Working radius (m) 2.5 4.046 5.826  7.646 9.516 11.4
Lifting weight(kg) 140000  8400 5478 4080 3148 245



    Message:

    Custom FAQs

    China sepcial truck is an enterprise with extensive influence and outstanding achievements in the field of special vehicles..We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

    The types of special-purpose vehicles we export are extremely rich and varied, covering dump trucks, sprinkler trucks, oil tank trucks, advertising vehicles, engineering operation vehicles and many others. This wide range of products can fully meet the diverse needs of different customers.

    We have a strict quality control system. Every link from raw material procurement to production and processing is subject to strict inspection. At the same time, our vehicles have passed a series of international certifications, such as ISO quality system certification, etc., to ensure reliable product quality.

    We usually use sea transportation for shipping.  According to customer requirements, railway transportation or road transportation can also be selected. We will cooperate with professional logistics companies to ensure that vehicles are safely and timely delivered to destinations. function. What’s more, the plasma cutting also is available.

    Delivery time depends on multiple factors including vehicle model, order quantity, transportation method, etc. Generally speaking, it takes several months from signing the contract to delivering the vehicle. We will clearly specify the delivery time in the contract and do our best to complete the delivery according to the agreed time.
