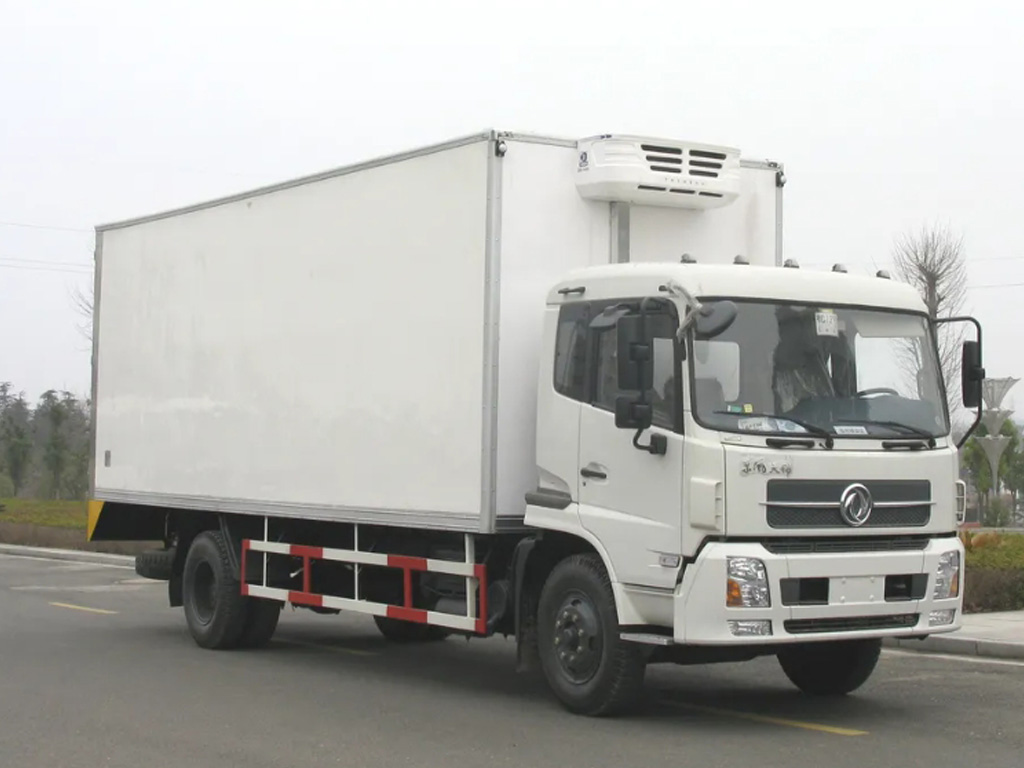

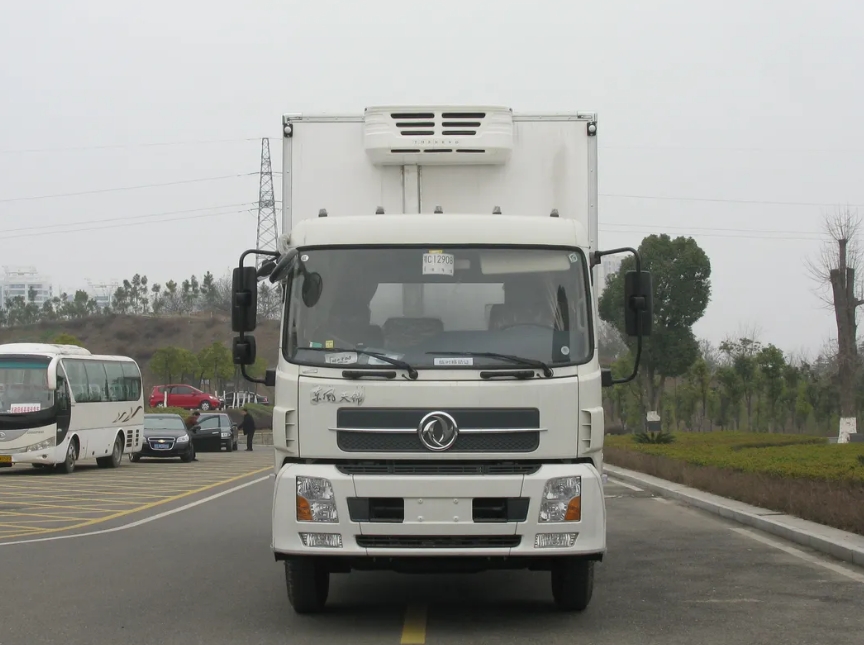

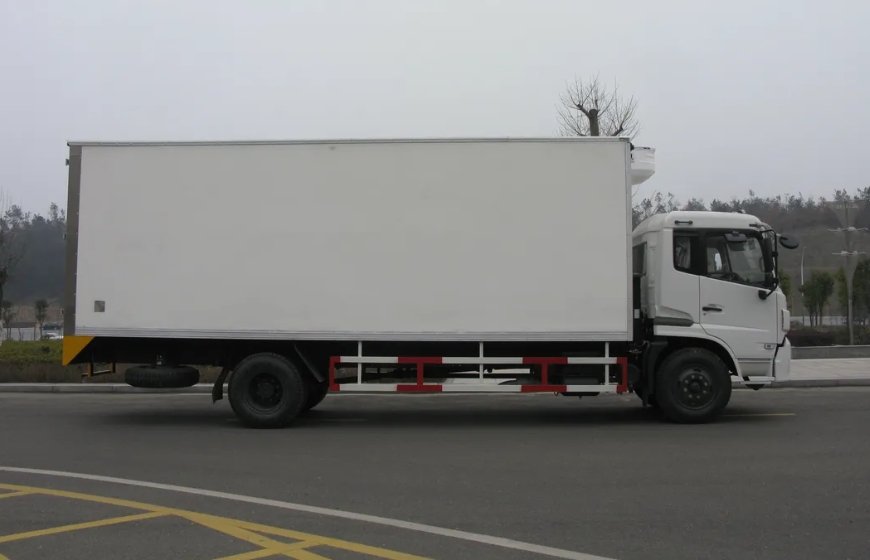

Refrigerated Truck with Rear Hydraulic Platform Fish/Meat/Vaccine/Vegetables Transport Dongfeng 8tons 10tons Refrigerated Truck

Overall Dimension (mm) 9990*2495*3850
Curb Weight (Kg) 6900
Gross Vehicle Weight (Kg) 16300
Loading Weight (Kg) 10000



FEATURES

Product Details

General Technical Parameters
Overall Dimension 9990*2495*3850(mm) Gross Vehicle Weight 16300(Kg)
Curb Weight 6900(Kg) Loading Weight 10000(Kg)
Chassis Specification
Chassis parameters Chassis Brand Dongfeng
Cabin Row and half, Left Hand Driving, with A/C
Engine Model 6 Cylinders
Power 180HP
Emission standard EURO V
Fuel type Diesel
Gearbox 8 Forward & 1 Reverse Gear
Front and Rear Axle load 4T/8T
Wheel base 5000(mm)
Overhang( Front/Rear) 1630/2105(mm)
Angle(Approach/departure) 20/16(°)
Brake System Air brake
Steering Gear Power Assistant
Tire 6 Pieces with 1 Spare Tire
Maximum speed 105(km/h)
Superstructure

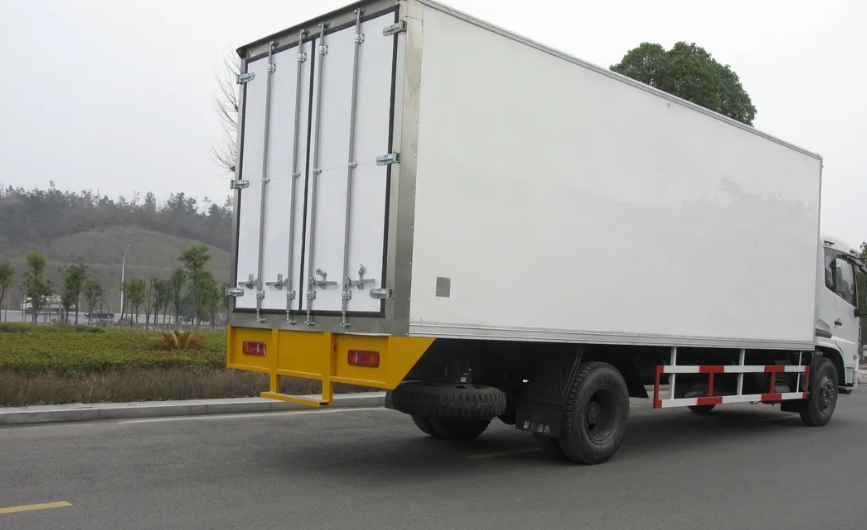

Van Box size 7400*2280*2400mm
Material Fiberglass
Insulating Layer 8cm Polyurethane Foam

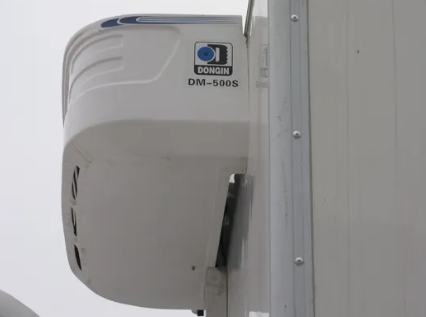

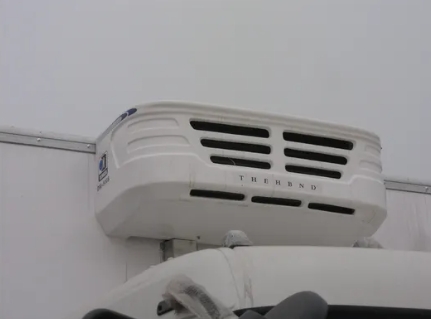

Truck refrigeration unit Brand THERMOKING or Carrier
Model KV300
Applicable temperature (ºC) -18~0
Remarks Part Optional: Ventilation slot
Hook
External power supply
Side door

    Message:

    Custom FAQs

    China sepcial truck is an enterprise with extensive influence and outstanding achievements in the field of special vehicles..We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

    The types of special-purpose vehicles we export are extremely rich and varied, covering dump trucks, sprinkler trucks, oil tank trucks, advertising vehicles, engineering operation vehicles and many others. This wide range of products can fully meet the diverse needs of different customers.

    We have a strict quality control system. Every link from raw material procurement to production and processing is subject to strict inspection. At the same time, our vehicles have passed a series of international certifications, such as ISO quality system certification, etc., to ensure reliable product quality.

    We usually use sea transportation for shipping.  According to customer requirements, railway transportation or road transportation can also be selected. We will cooperate with professional logistics companies to ensure that vehicles are safely and timely delivered to destinations. function. What’s more, the plasma cutting also is available.

    Delivery time depends on multiple factors including vehicle model, order quantity, transportation method, etc. Generally speaking, it takes several months from signing the contract to delivering the vehicle. We will clearly specify the delivery time in the contract and do our best to complete the delivery according to the agreed time.
