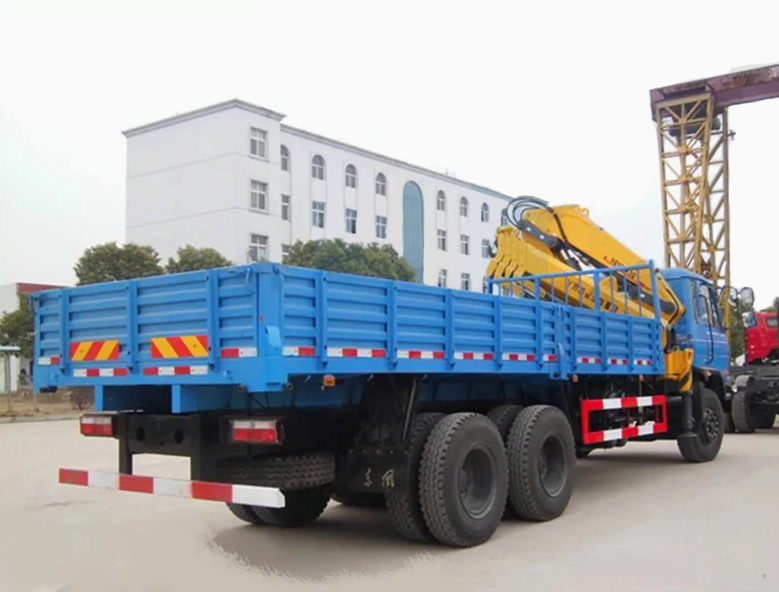

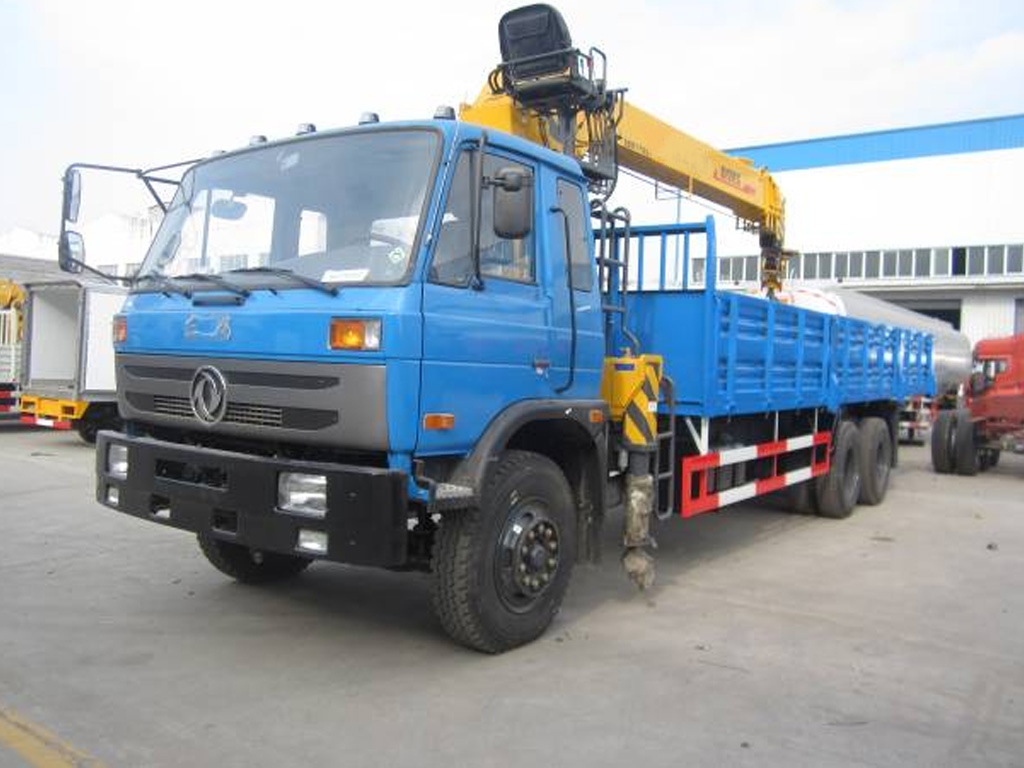

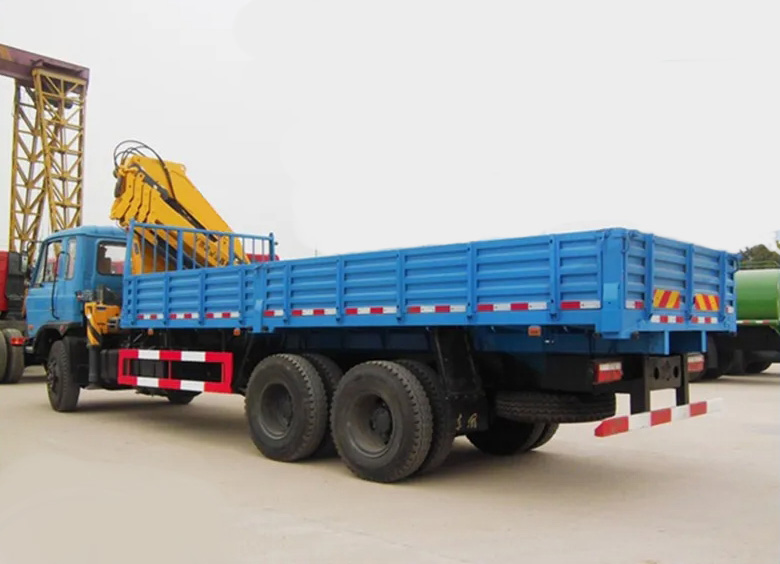

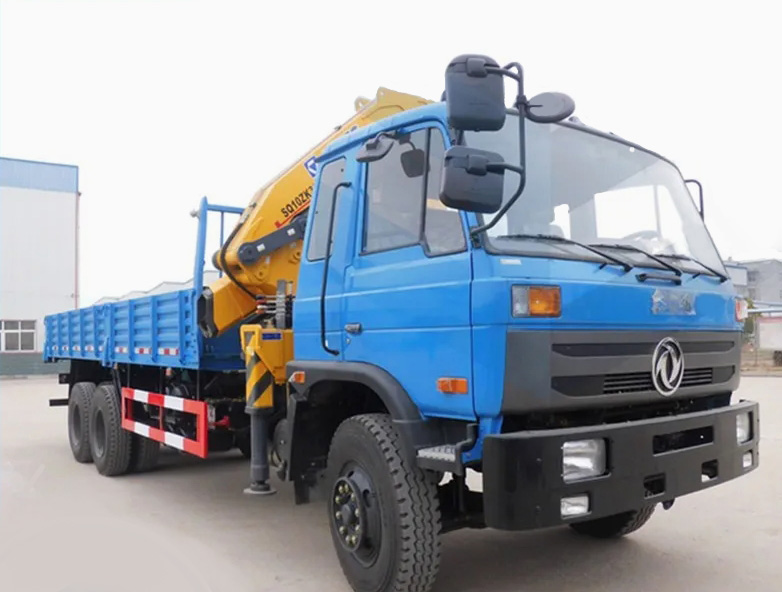

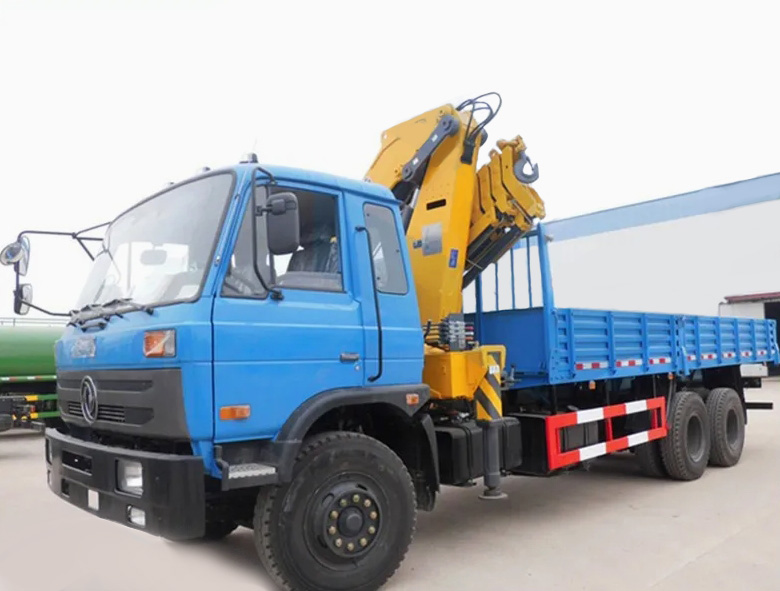

Crane Truck Telescopic Hydraulic Boom Dongfeng 6×4 Crane Factory Wholesale Truck with Crane

Product Details

Driving Type:                                 6×4,left hand drive

Overall Dimension(mm):            11900×2500×3800

FEATURES

Product Details

Basic info.
Product Name  Dongfeng 6×4 crane truck
Driving Type  6×4,left hand drive
Weights
Rated payload weight(kg) 15000
Curb weight(kg) 12805
Dimensions
Wheelbase(mm) 5350+1300
Overall Dimension(mm) 11900×2500×3800
Box dimension 8500×2294×550,800
 Max speed(km/h) 85
Engine
 Engine model B210 33(210HP)
Engine type 4 stroke water-cooled, water-cooling.
No. of cylinders straight-6 cylinders
Displacement(L) 5.9 L
Max. output (kw) 155kw
 Drive Line
Transmission 8JS118,8 forwards,1 reverse gear, manual operation
Steering With power steering
Brake system Air brake
Cab
Air container Have
Standard configuration sound, and so on
Axle
Front axle 5 tons
Rear axle 10 tons
Tire specification
Tire specification 10.00-20 standard tire,10 tires+1 spare tire
Crane
Crane SQ12SKA3





SQ12SK3Q

Crane model SQ12SK3Q Unit
Max Lifting Capacity 12000 kg
Max Lifting Moment 30 T.M
Recommend Power 30 kw
Max Oil Flow of Hydraulic System 63 L/min
Max Pressure of Hydraulic System 26 MPa
Oil Tank Capacity 160 L
Rotation Angle All Rotation
Crane Weight 4200 kg
Installation Space 1300 mm
Choice of Chassis DFL1250A9 ;DFL1311A3 ;CA1240PK2L7T4EA81;EQ5201GFJ6;BJ1317VNPJJ-S5;BJ5253ZKPJJ;DFL1253AX;



    Message:

    Custom FAQs

    China sepcial truck is an enterprise with extensive influence and outstanding achievements in the field of special vehicles..We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

    The types of special-purpose vehicles we export are extremely rich and varied, covering dump trucks, sprinkler trucks, oil tank trucks, advertising vehicles, engineering operation vehicles and many others. This wide range of products can fully meet the diverse needs of different customers.

    We have a strict quality control system. Every link from raw material procurement to production and processing is subject to strict inspection. At the same time, our vehicles have passed a series of international certifications, such as ISO quality system certification, etc., to ensure reliable product quality.

    We usually use sea transportation for shipping.  According to customer requirements, railway transportation or road transportation can also be selected. We will cooperate with professional logistics companies to ensure that vehicles are safely and timely delivered to destinations. function. What’s more, the plasma cutting also is available.

    Delivery time depends on multiple factors including vehicle model, order quantity, transportation method, etc. Generally speaking, it takes several months from signing the contract to delivering the vehicle. We will clearly specify the delivery time in the contract and do our best to complete the delivery according to the agreed time.
