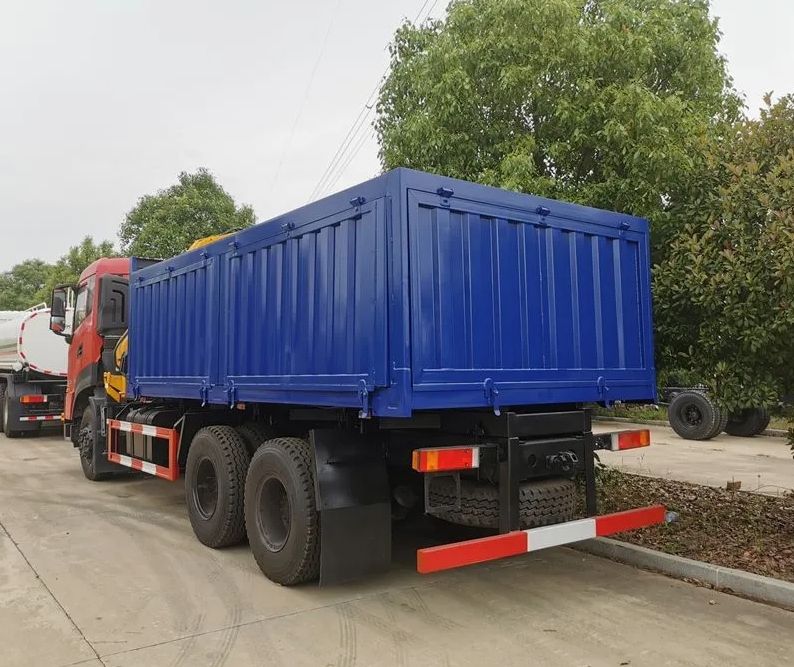

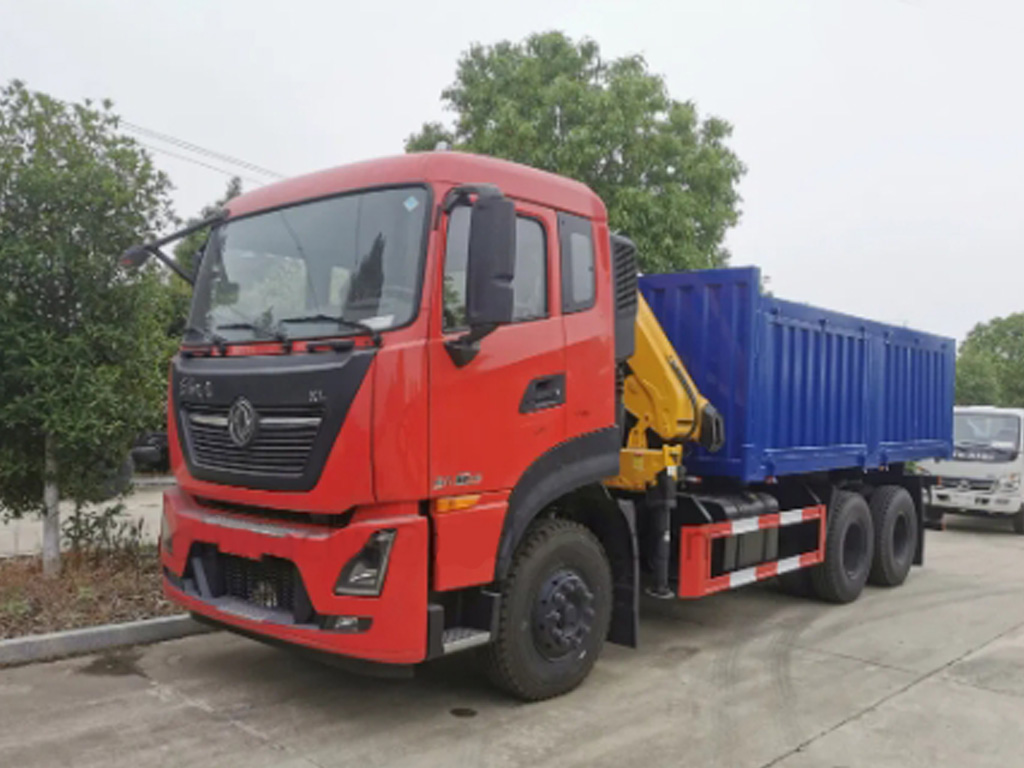

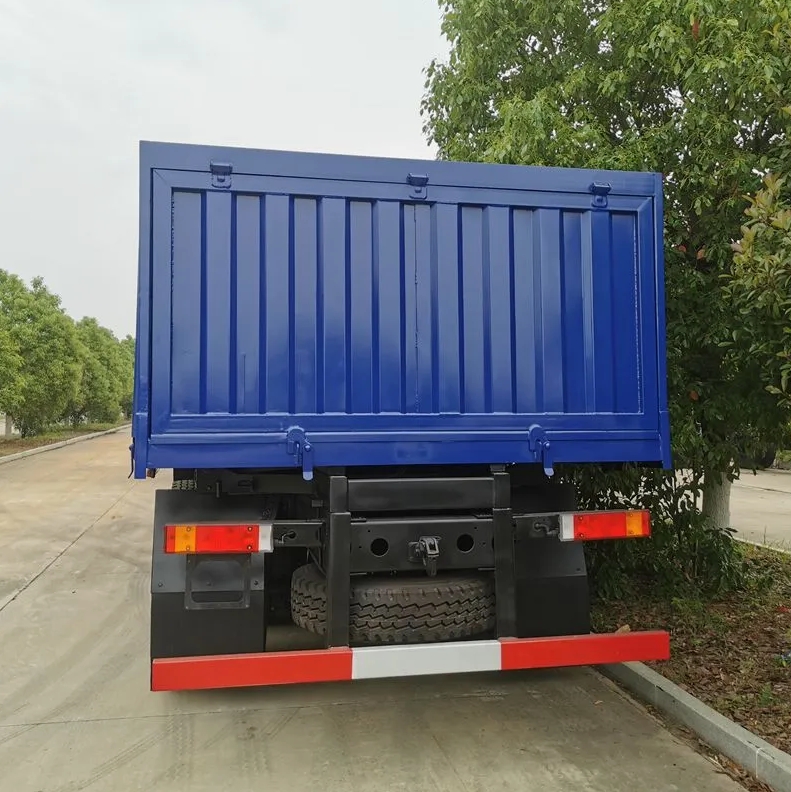

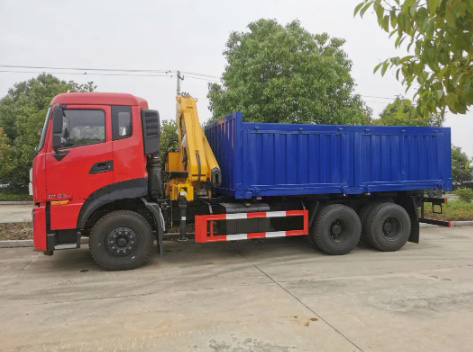

Dongfeng 6X4 Dump Truck With Knuckle Crane
|
|
Brand
|
DONG FENG |
Wheel base
|
4350+1350(mm) |
Cab
|
HW76 cabin, with one sleeper berth, with air conditioner
|
Engine
|
D6.7NS6B290, 290HP, EURO III emission
|
Gearbox
|
HW19710, 10 front gear, 2 reverse gear, manual
|
PTO
|
With HW50 PTO
|
Front axle
|
HF9*2, 18000kg loading capacity
|
Rear axle
|
HC16*2 , 32000kgs loading capacity, 5.73 speed ratio
|
Tire
|
11.00R20 18PR.radial tire, 13 pcs, with one spare tire
|
Dump box
|
6300 * 2200 * 1500 (25cbm), floor 8mm, side 6mm, front lifting ;
|
Oil tanker
|
300L
|
Max speed
|
90km/h
|
Curb weight
|
25000kgs
|
Overall
|
9100X2500X3250mm
|

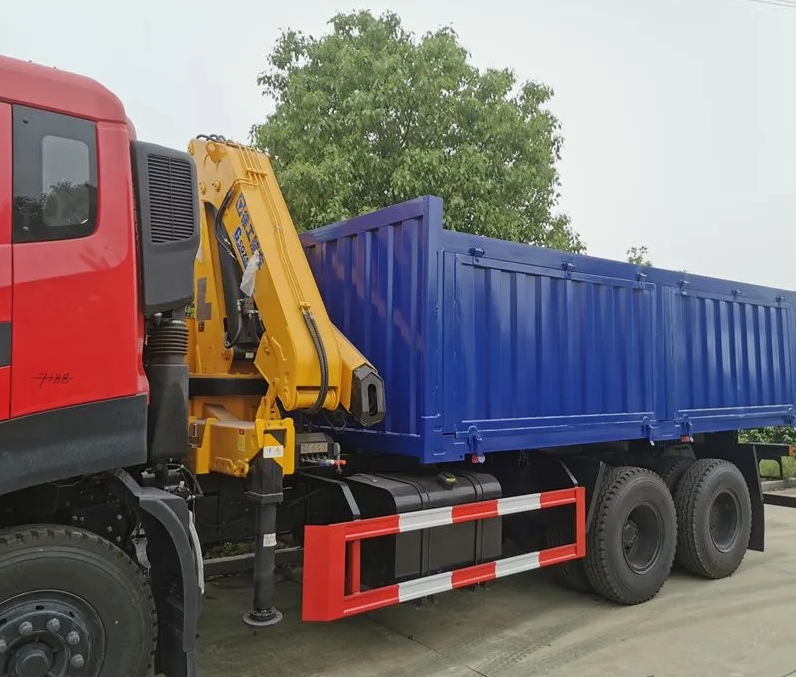

Crane
|
China famous brand X-CMG 10T folded arm crane
|
