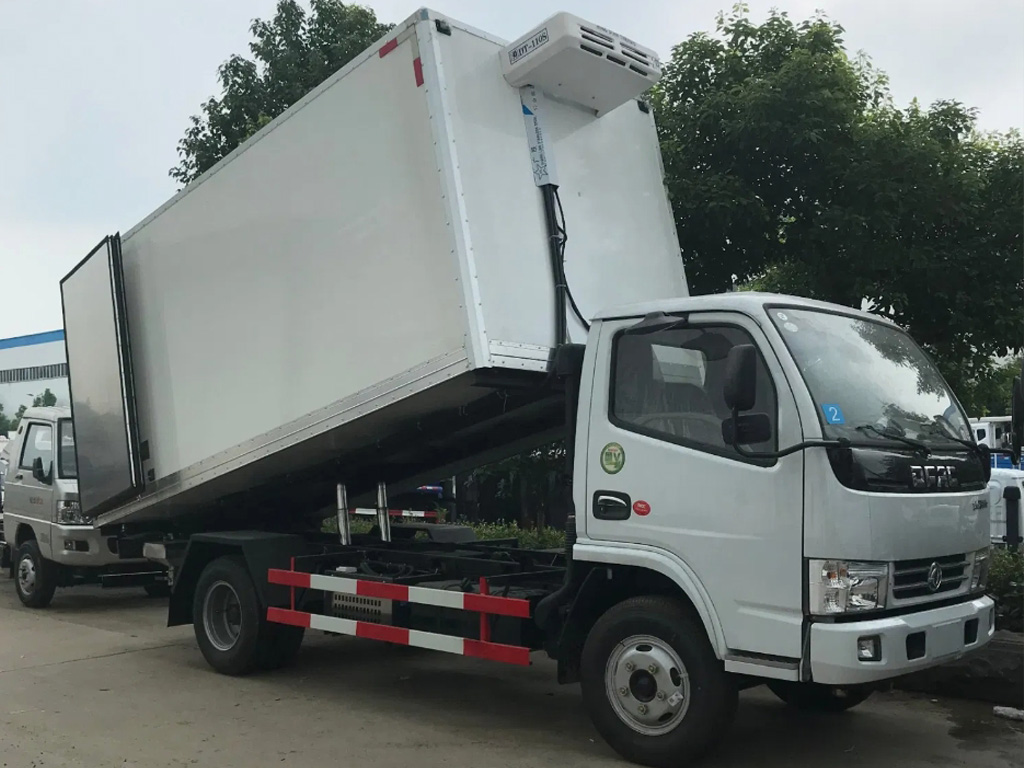

Refrigerator Truck 4t 5t Dumped Dongfeng 4X2 Refrigerated Freezer Van Truck



Vehicle Dongfeng 4X2 refrigerator truck
Overall dimensions (mm) 5995*2020*3000
Curb weight (kg) 3500
Loading capacity (kg) 5000

FEATURES

Product Details

Chassis Model Dongfeng 4X2 refrigerator truck
Vehicle main dimension Overall dimension(LxWxH)mm 5995*2020*3000
wheel base(mm) 3300
wheel track(front/rear)(mm) /
Overhang(front/rear)(mm) 1032/1663
Approach/Departure angle 19/10
Weight in KGS GVW 6495
Curb weight 3500
Loading capacity 5000
Chassis model EQ1060TJ20D3
Max driving speed(km/h) 98
Engine Brand Dongfeng Chaoyang
Model CY4102-C3F
(CC)KW 3856/70
Emission standard Europe II
Transmission 5 gear box ,5 forward ,1 reserve
brake Oil brake
Tire 7.00-15

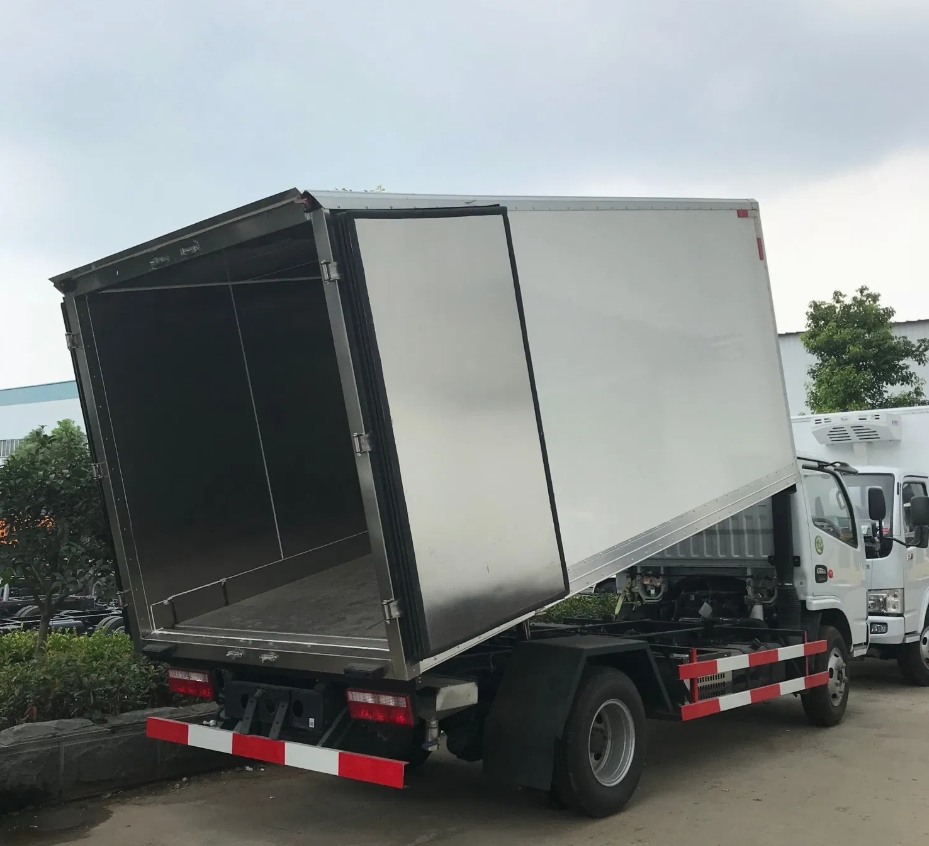

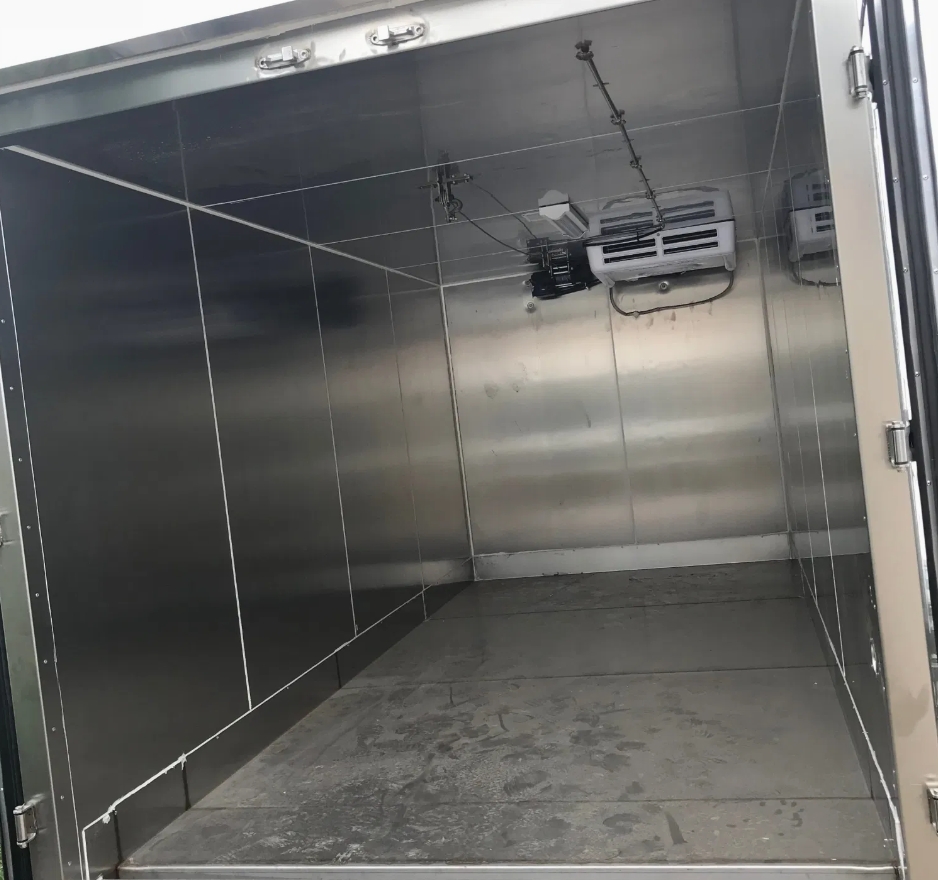

Body Cargo body Dimension LxWxH 4000x1850x1800
materials Both Inside and Outside are glass fiber reinforced plastics
thermal insulation material Polyurethane foam
Thickness 8cm

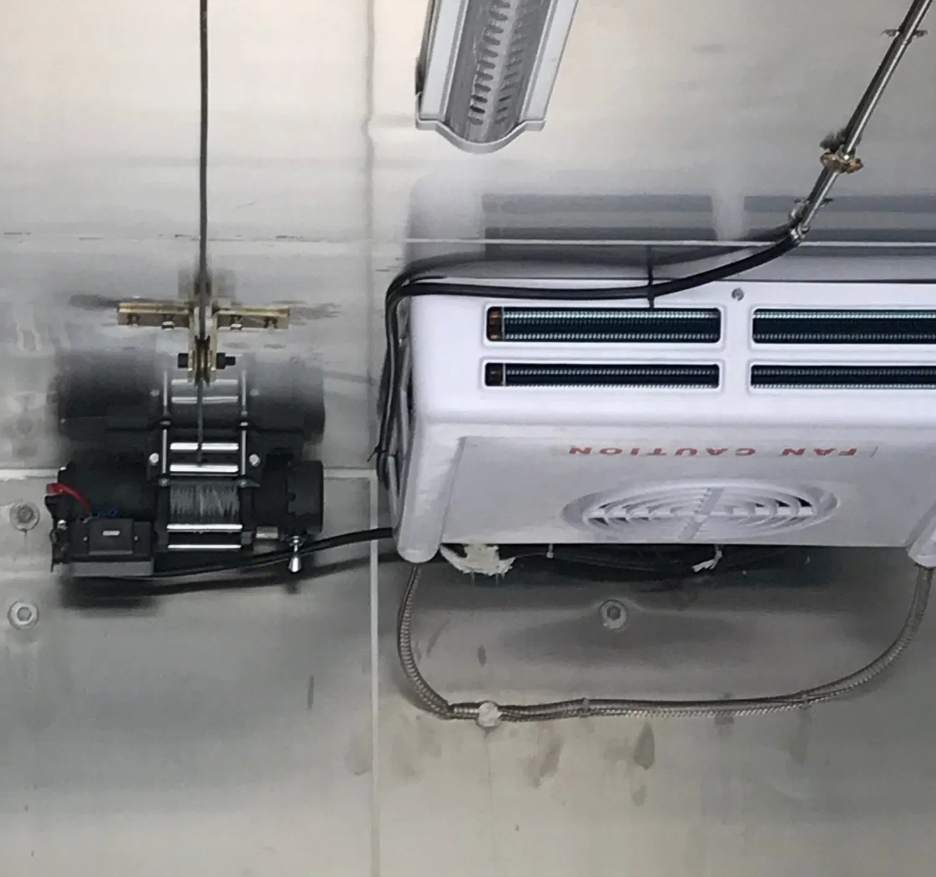

Cooling system Brand Hanya
Model DT-150S
Temperature -18ºC-0ºC
Tipping system cylinder 120
Lifting Front lifting system
others Stainless steel lock, stainless steel Contour corner protection, stainless steel door frame, dome light and Bumper block, two rear door
option 1,Side door ,
2,cargo material can choose both stainless steel, both glass fiber reinforced plastic ,or stainless steel+ glass fiber reinforced plastic
3,refrigerator machine :thermoking, carrier ,and others you like
