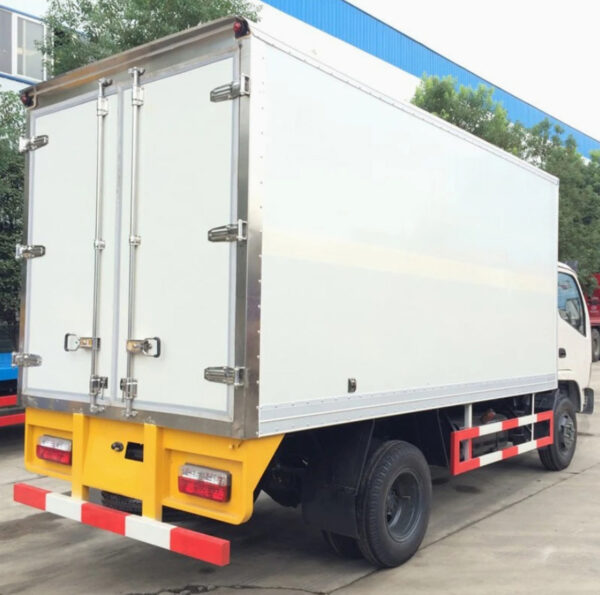

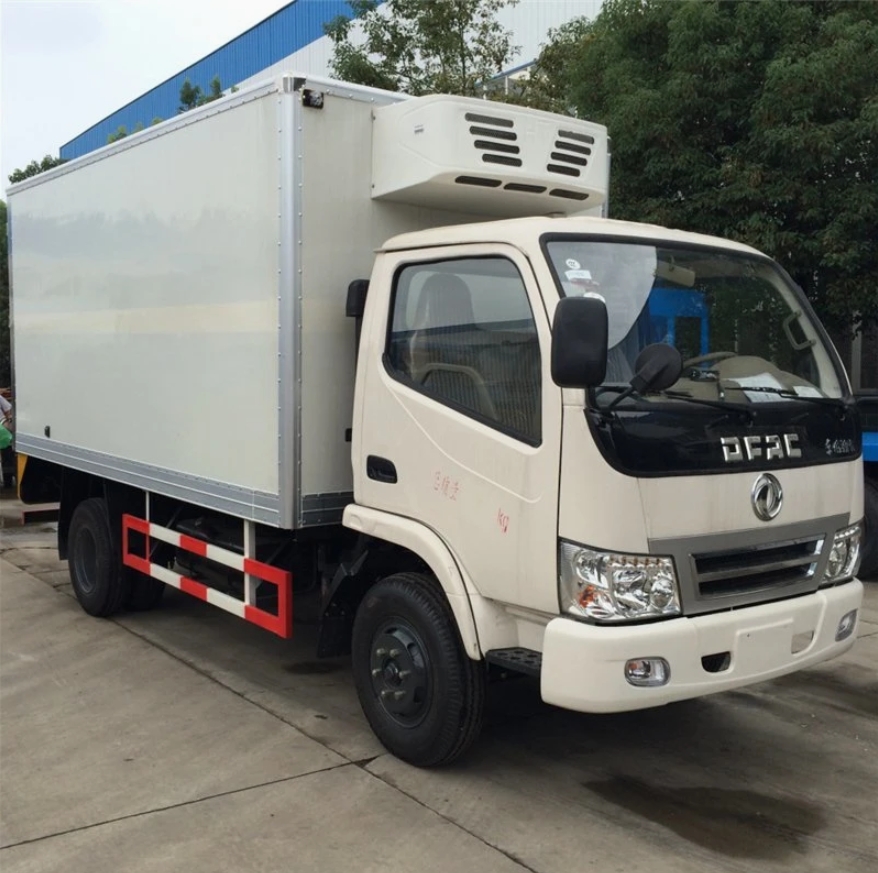

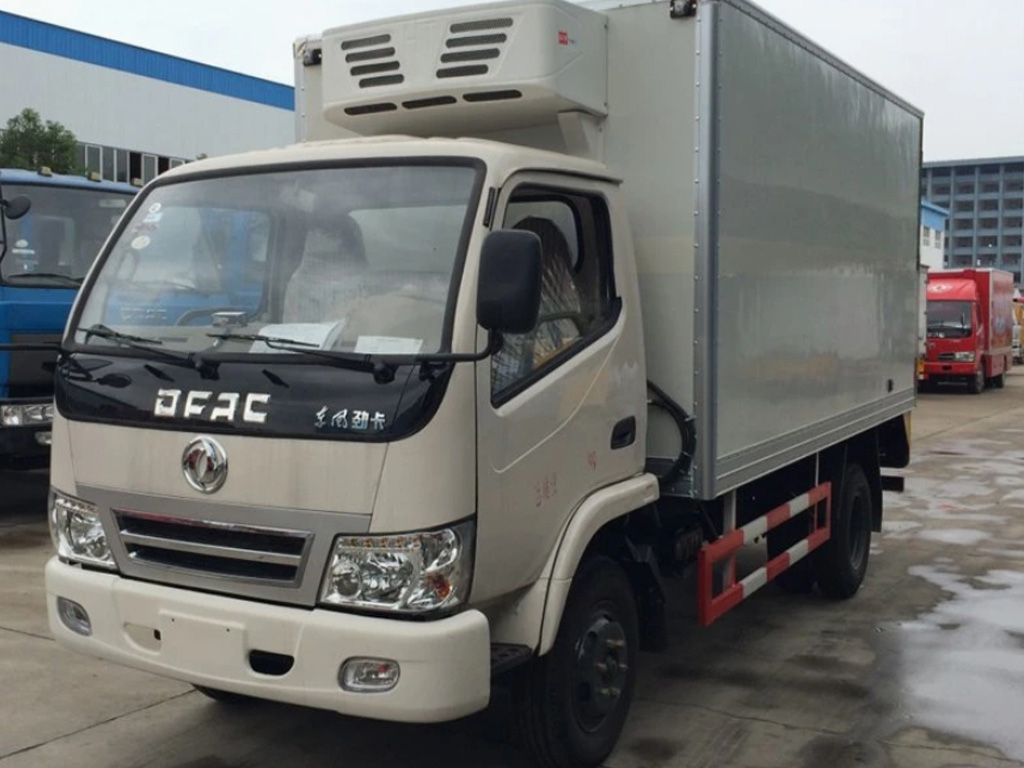

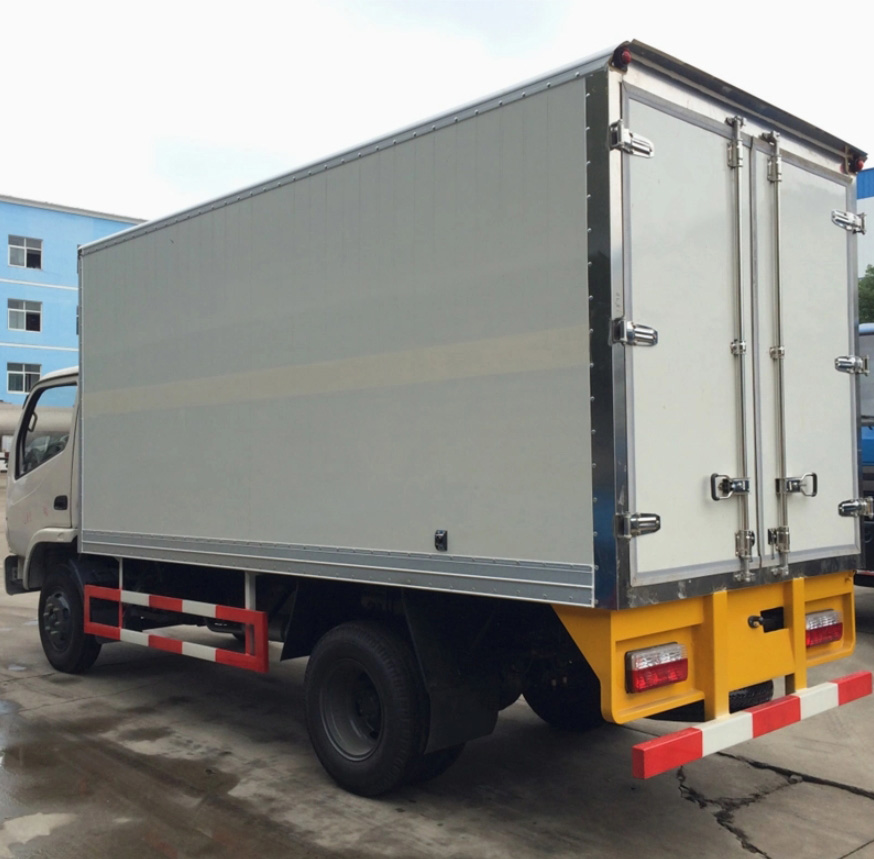

Fresh Vegetables and Pork Meats Transport Dongfeng 4 Cubic 18 Degree Refrigerator Van Truck



Vehicle Dongfeng refrigerator van truck
Overall dimensions (mm) 5995×2285×3100
Box dimensions (mm) 4080x2050x2100
Curb weight (Kg) Appro×3250

FEATURES

Product Details

ITEM UNIT PARAMETER
Vehicle Dongfeng refrigerator van truck
Overall dimensions mm 5995×2285×3100
Box dimention mm 4080x2050x2100
GVW kg Appro×8250
Curb weight kg Appro×3250
Payload kg Appro×5000
Wheel base mm 3300
F/R track base 1300/1240
F/R Suspension 1010/1385
Approach/departure angle ° 20/13
Max speed km/h 85
Axle Load kg 2540/3820
Drive model 4×2 Fuel type Diesel
Tire specification 7.50-16 Number of axles 2
Engine model Manufacturer Anhui QuanChai power co., LTD
Engine CY4102-C3F
Emission/kw 3856ml/70Kw, 95Hp
type 5F/1R
Standard Configuration side door, color plate, hook line 3 way with ventilating slot
Refrigerator system The lowest temperature -5ºC

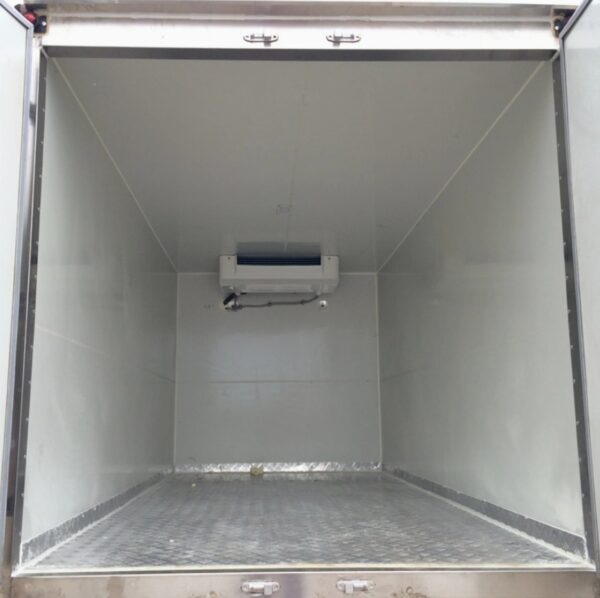

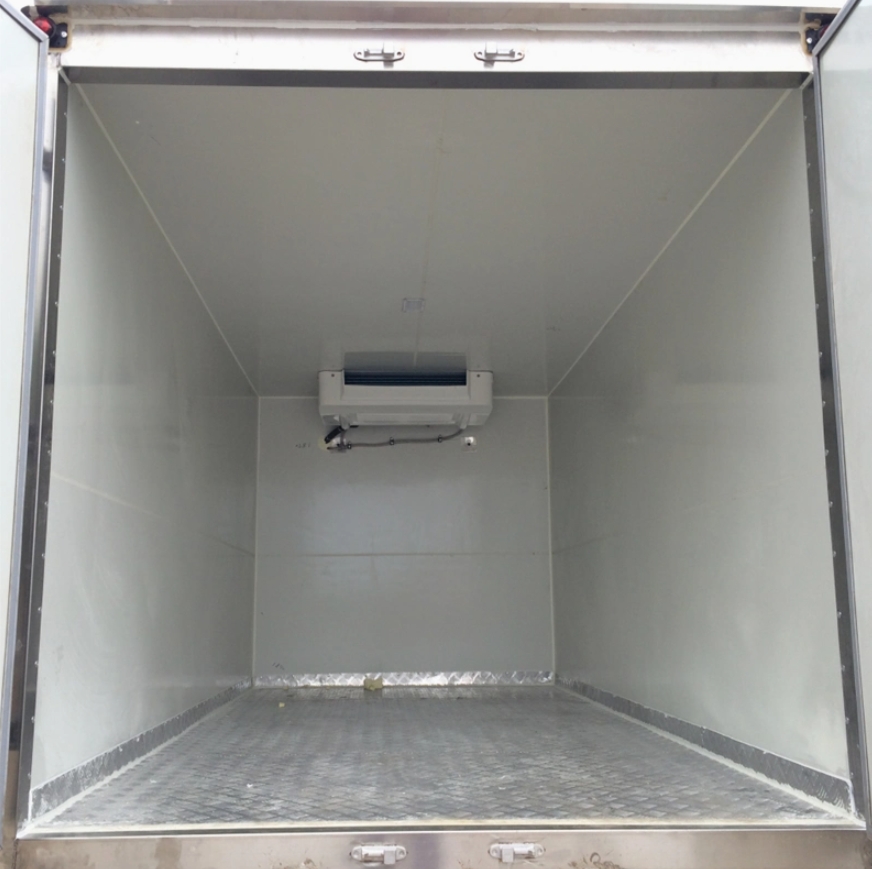

Box specification inner and out side reinforced plastic thickness 2.2 mm, middle insulating layerpolyurethane, box and door thickness 80mm,
bottom plate Aluminium checkered plates and color plate
Accessory for free Envelope surrounding 2.5mm aluminum edging, stainless steel corners, stainless steel door locks, anti-collision rubber 4, stainless steel door, stainless steel hinges, energy-efficient lighting inside
