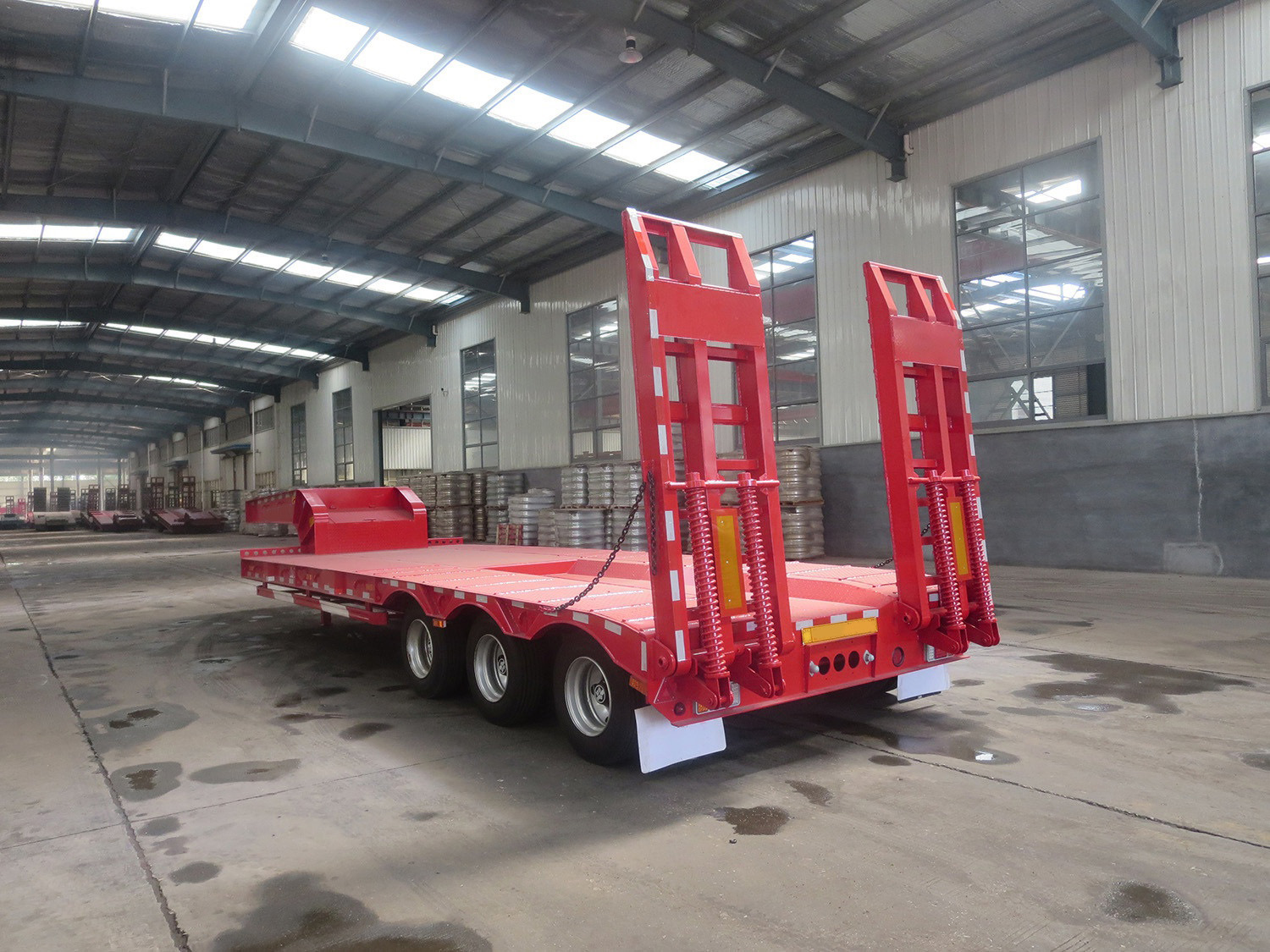

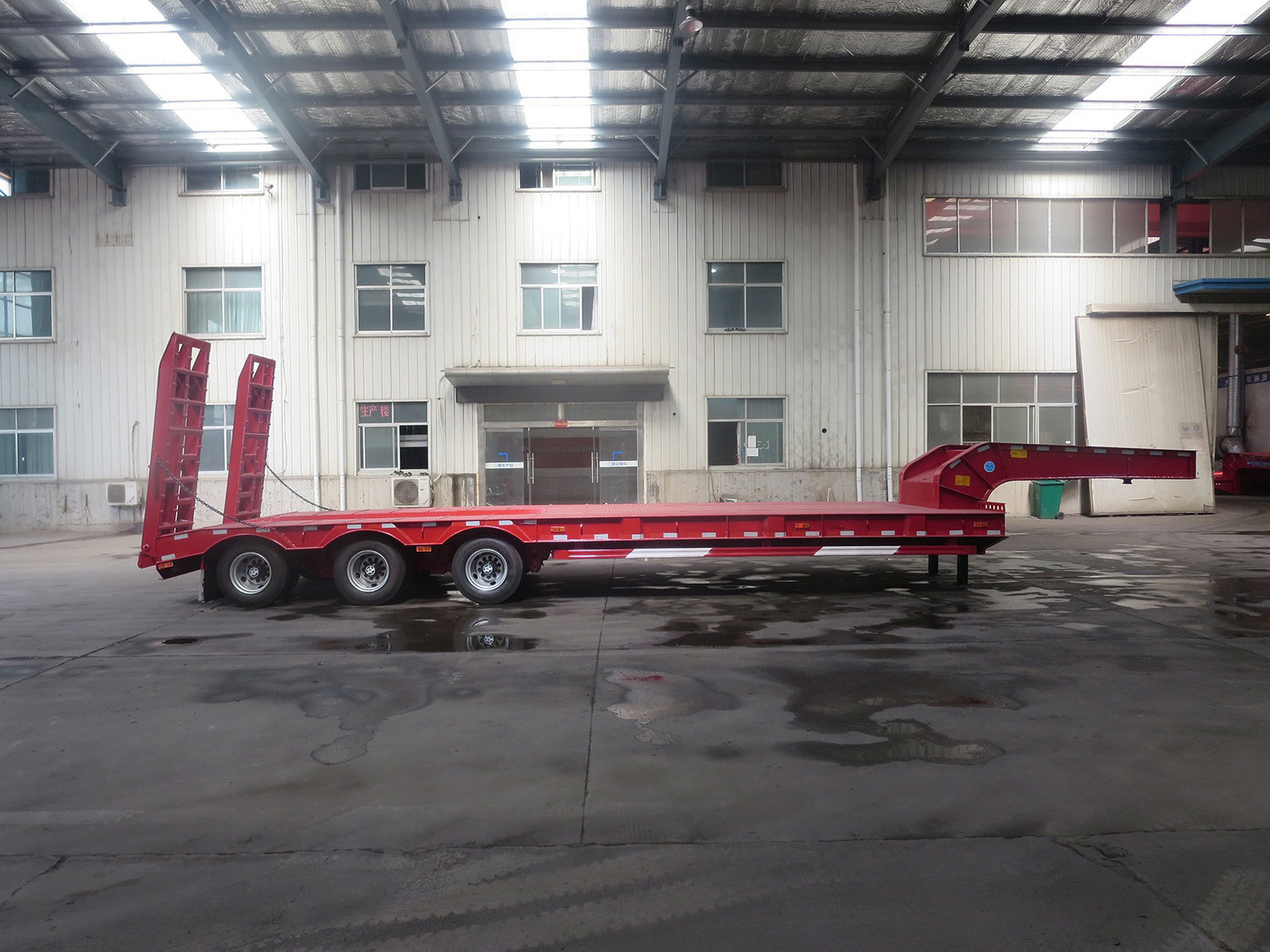

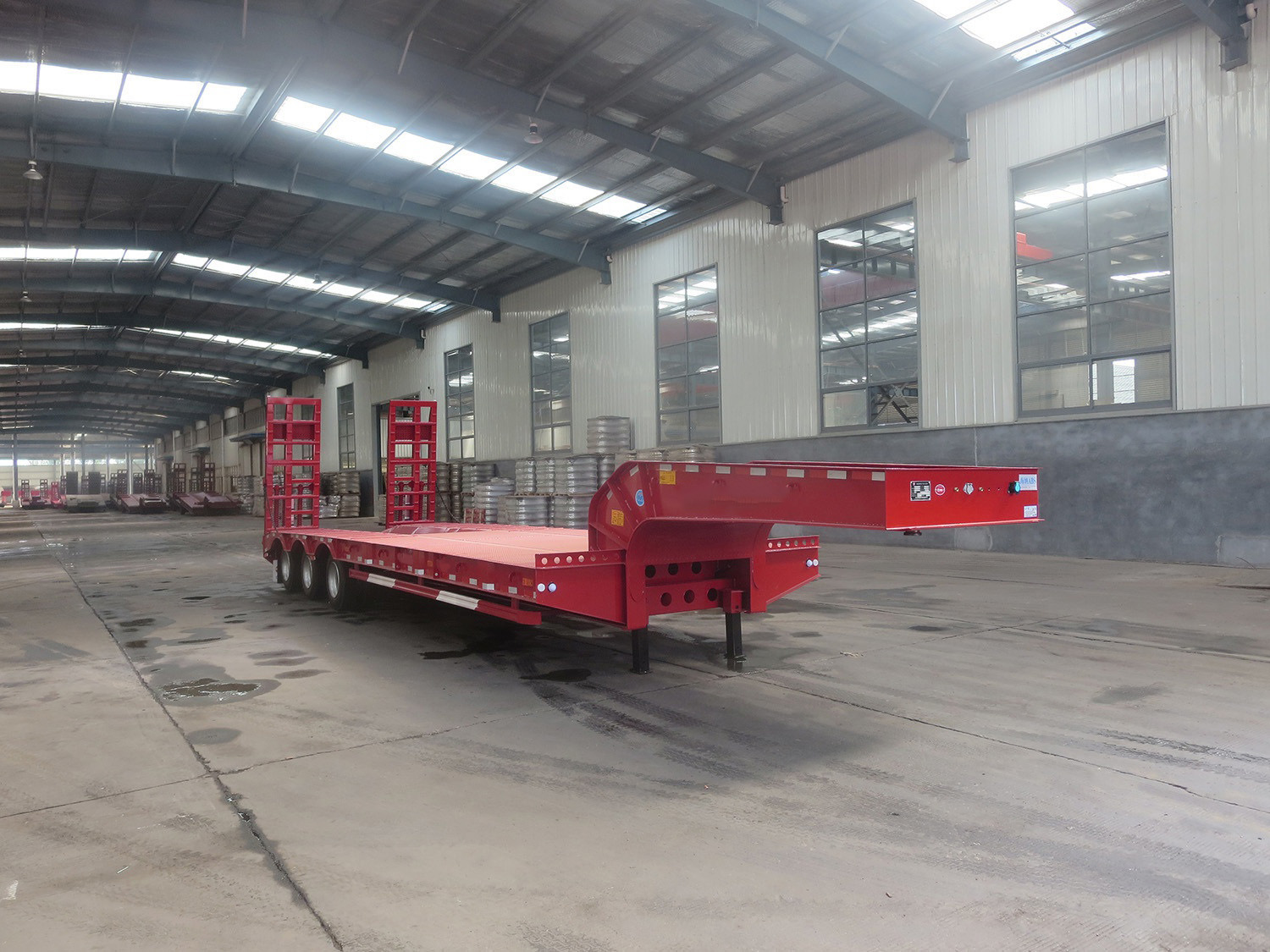

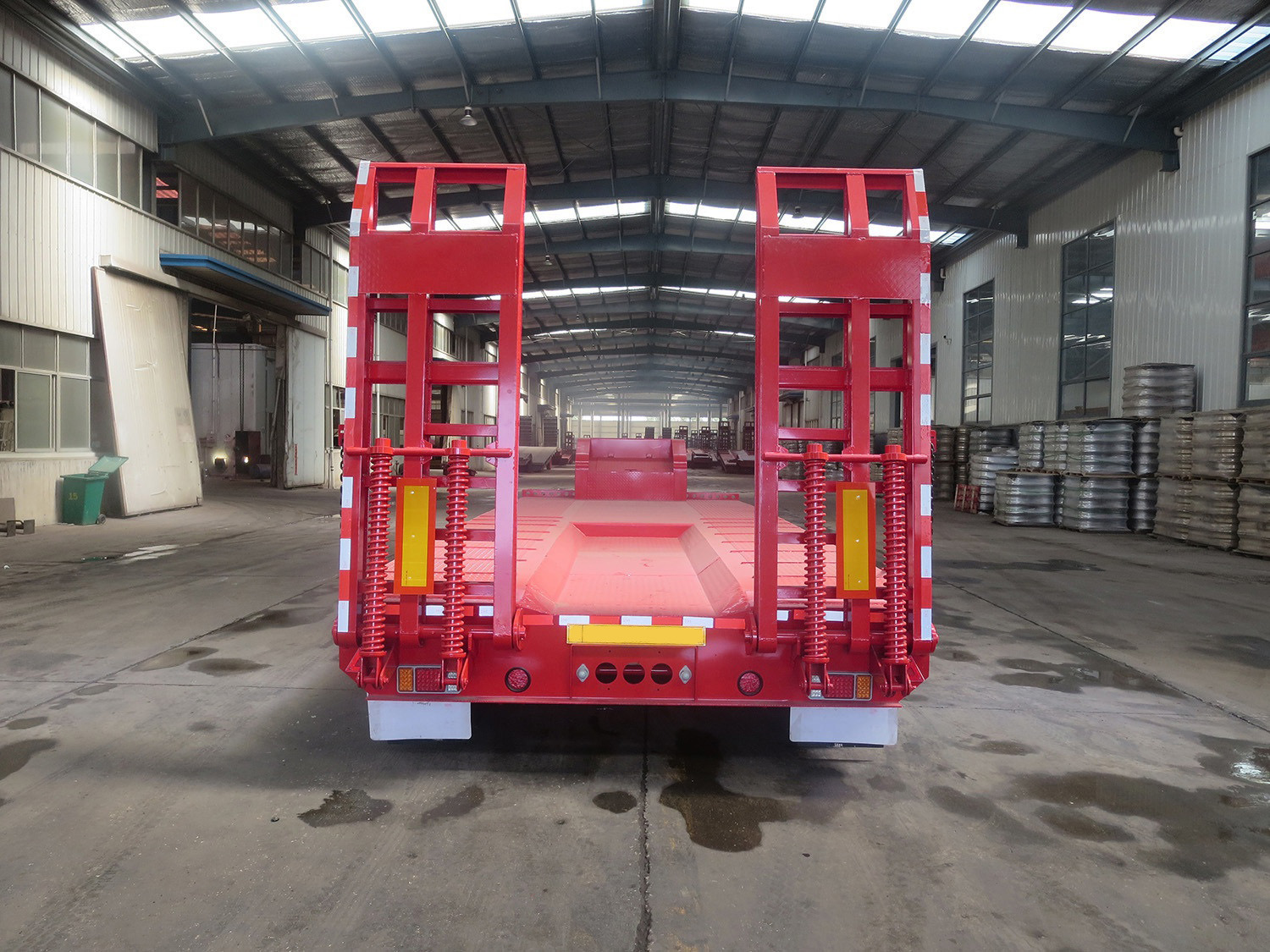

Type | Low-bed semi-trailer |
Overall Dimension (mm) | Length×width×height:12000,11500×3000×1750,3100,3300,3500 |
Total weight (Kg) : | 38000 |
Approach Angle/Departure Angle: | -/33 |
Front/rear suspension (mm) : | -/1170 |
Wheelbase (mm) : | 7800+1300+1300,7300+1300+1300 |
Axle Load: | -/21000(Three axes) |
number of axles: | 3 |
Number of spring pieces: | -/4/4/4,-/8/8/8 |
Number of tires: | 12 |
Tire Specifications: | 8.25R20 14PR,8.25R16LT 18PR,235/75R17.5 16PR |
Front wheel base: | / |
Rear wheel base: | 2180/2180/2180,2250/2250/2250,2330/2330/2330 |
Others: | The height of the cargo platform bearing surface from the ground is 880mm, 900mm, 930mm, 980mm, 1100mm. It is only used for transporting non-removable objects, and the gooseneck part is not allowed to carry goods. When the length is 12000mm, the corresponding relationship between the external dimension (mm)/wheelbase (mm)/rear suspension (mm) is: 12000/7800 + 1300 + 1300/1170; when the length is 11500mm, the corresponding relationship between the external dimension (mm)/wheelbase (mm)/rear suspension (mm) is: 11500/7300 + 1300 + 1300/1170; the height is 1750mm when the optional ladder is not installed, and the optional loading surface style is 1750mm. Optional tires are exposed or not exposed. Body reflective signs have been installed on the side and rear. Side protection material: Q235B, connection method: bolt. Body parts replace rear lower protection, rear structure height from the ground: 400mm. ABS system model: HNABS4S/4M, ABS system manufacturer: Liangshan Haina Electronic Technology Development Co., Ltd. |
