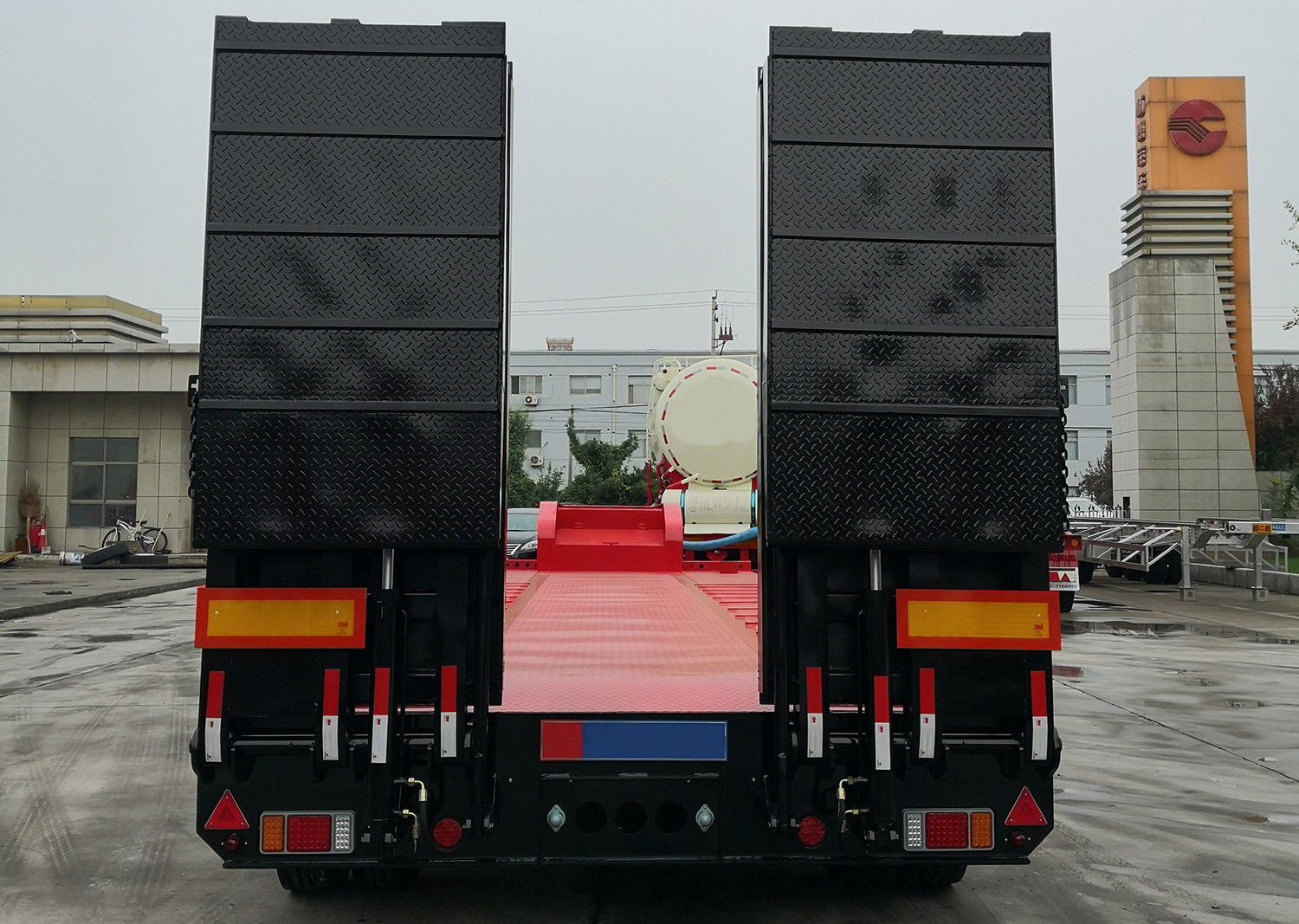

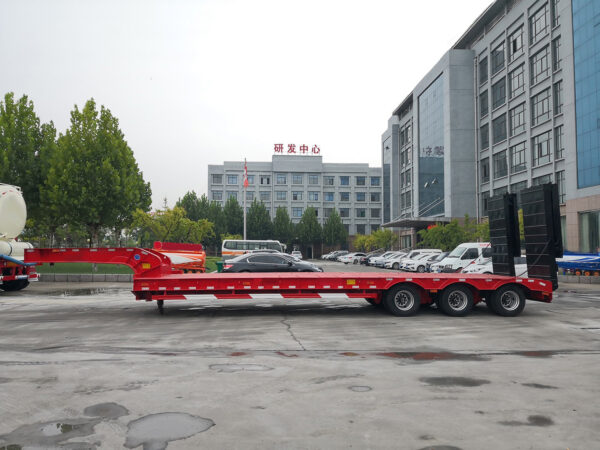

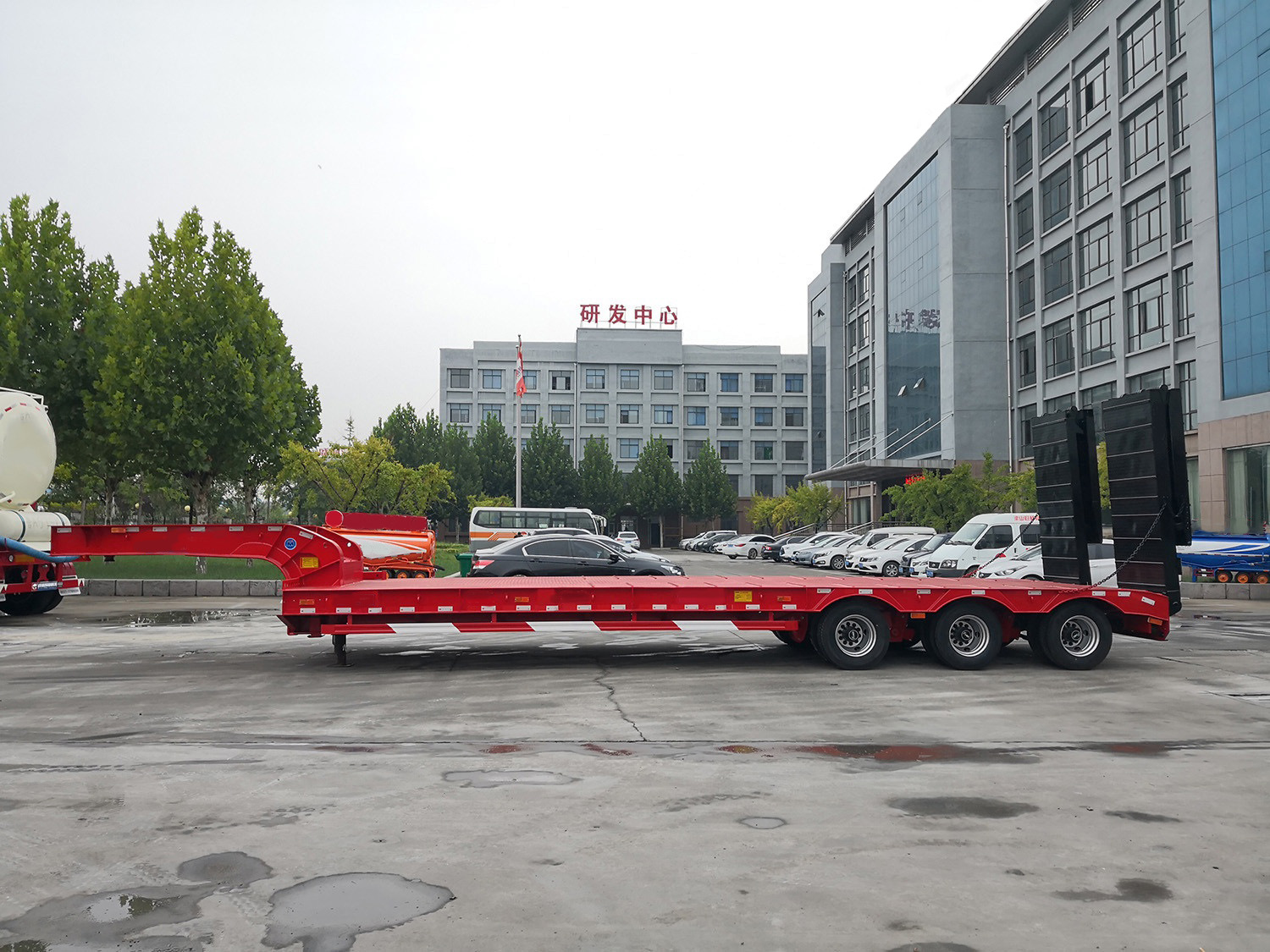

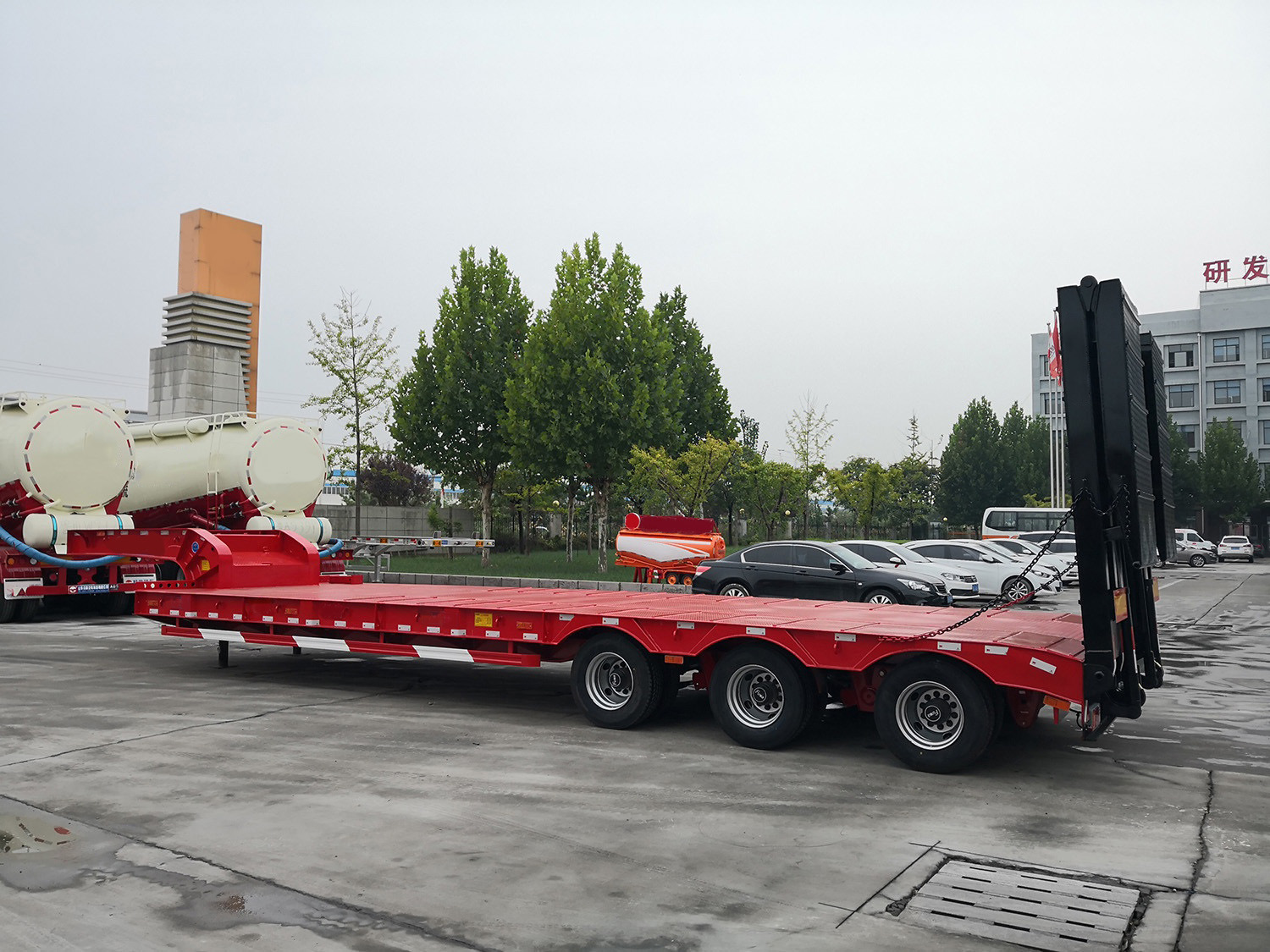

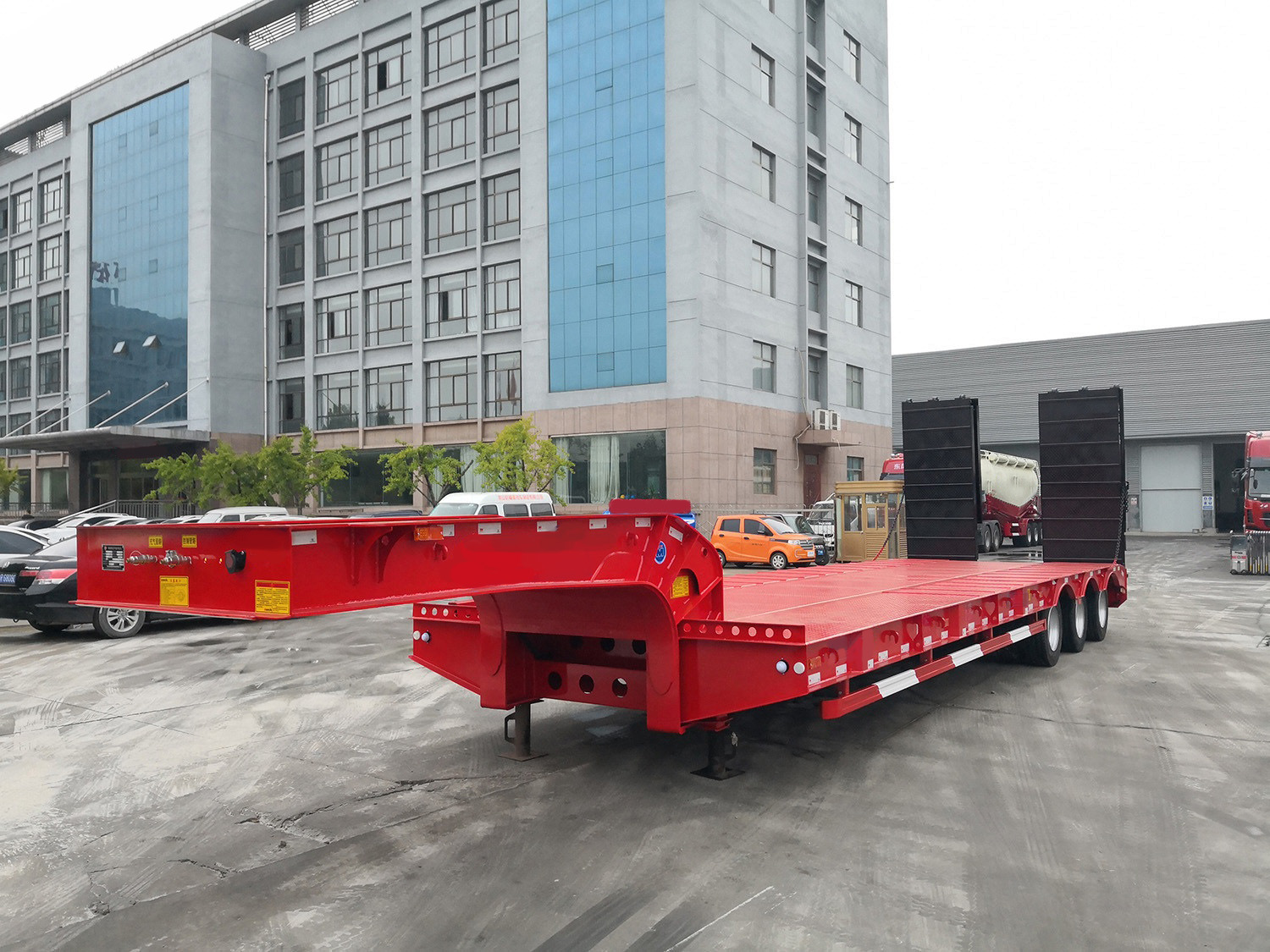

Low Flatbed Semi-Trailer China Factory for Sale

Type Low-bed semi-trailer
Overall Dimension (mm) 13750,12990,12500×3000×3200,3300,3500,3700
Total weight (Kg) 38000
Wheelbase (mm)  8090+1300+1300

FEATURES

Product Details

Type Low-bed semi-trailer
Overall Dimension (mm) Length×width×height:13750,12990,12500×3000×3200,3300,3500,3700
Total weight (Kg) : 38000
Approach Angle/Departure Angle: -/20
Front/rear suspension (mm) : -/1300
Wheelbase (mm) : 8090+1300+1300
Axle Load: -/21000(Three axes)
number of axles: 3
Number of spring pieces: -/4/4/4,-/8/8/8
Number of tires: 12
Tire Specifications: 8.25R20 14PR,235/75R17.5 16P
Front wheel base: /
Rear wheel base: 2180/2180/2180,2250/2250/2
Others: When the tire is 235/75R17.5, the height from the ground to the cargo platform is 880mm, 930mm, and 960mm. When the tire is 8.25R20, the height from the ground to the cargo platform is 1020mm and 1100mm. It is only used for transporting non-detachable objects. The gooseneck part is not allowed to carry cargo. The corresponding relationship of the overall length/distance from the semi-trailer kingpin to the front end of the vehicle/wheelbase/rear overhang is: 13750/1760/8090+1300+1300/1300; 12990/1000/8090+1300+1300/1300; 12500/510/8090+1300+1300/1300. The ladder of this model is a hydraulic ladder. Optional rear styles of the hydraulic ladder and installation positions of the tail signboard are available. Reflective markings for the vehicle body have been installed on the sides and rear. Side protection material: Q235B. Connection method: bolts. Vehicle body parts replace the lower rear protection. The height from the ground to the rear structure is 400mm. ABS system model: HNABS4S/4M. ABS system manufacturer: Liangshan Haina Electronic Technology Development Co., Ltd.
