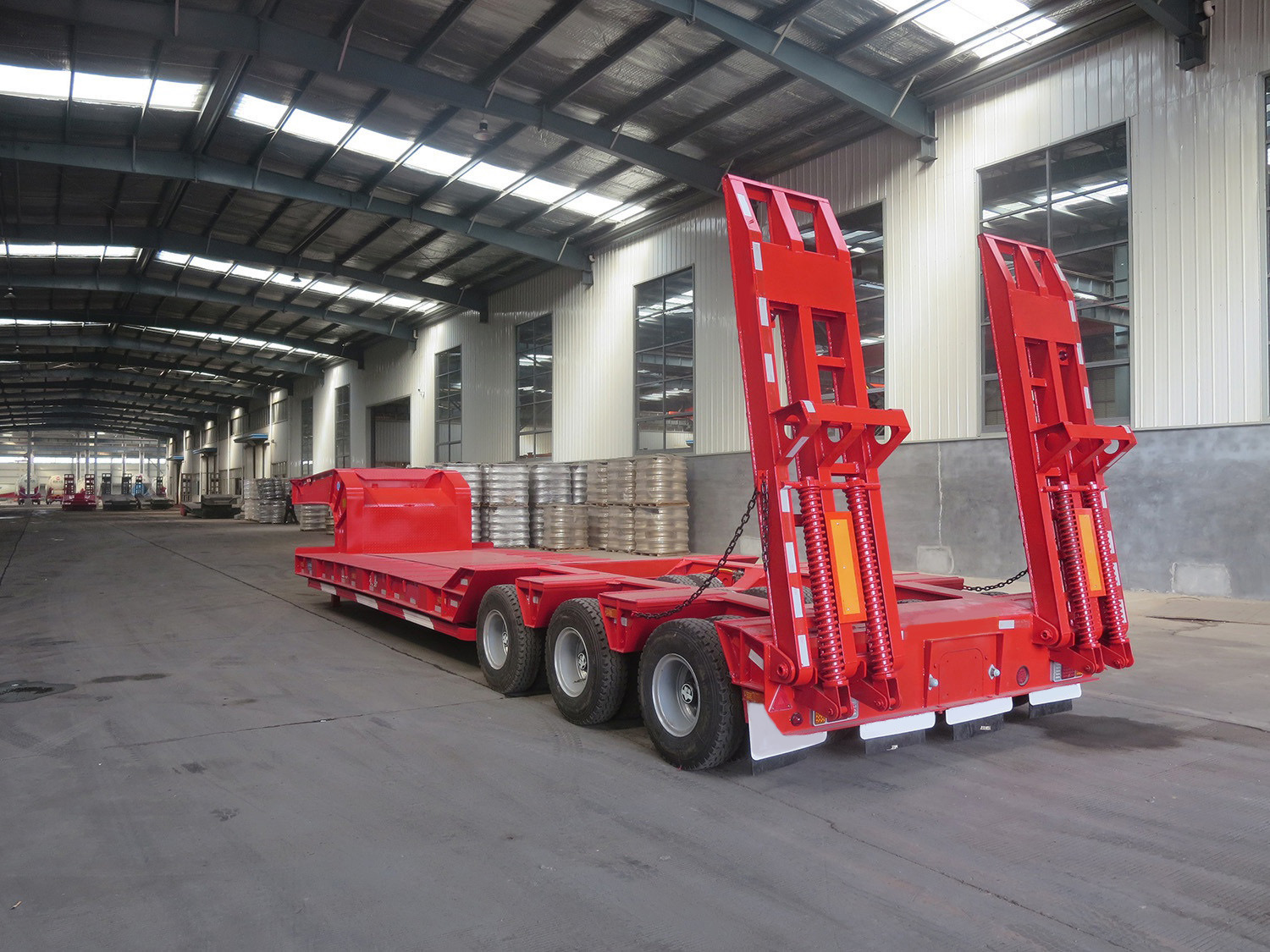

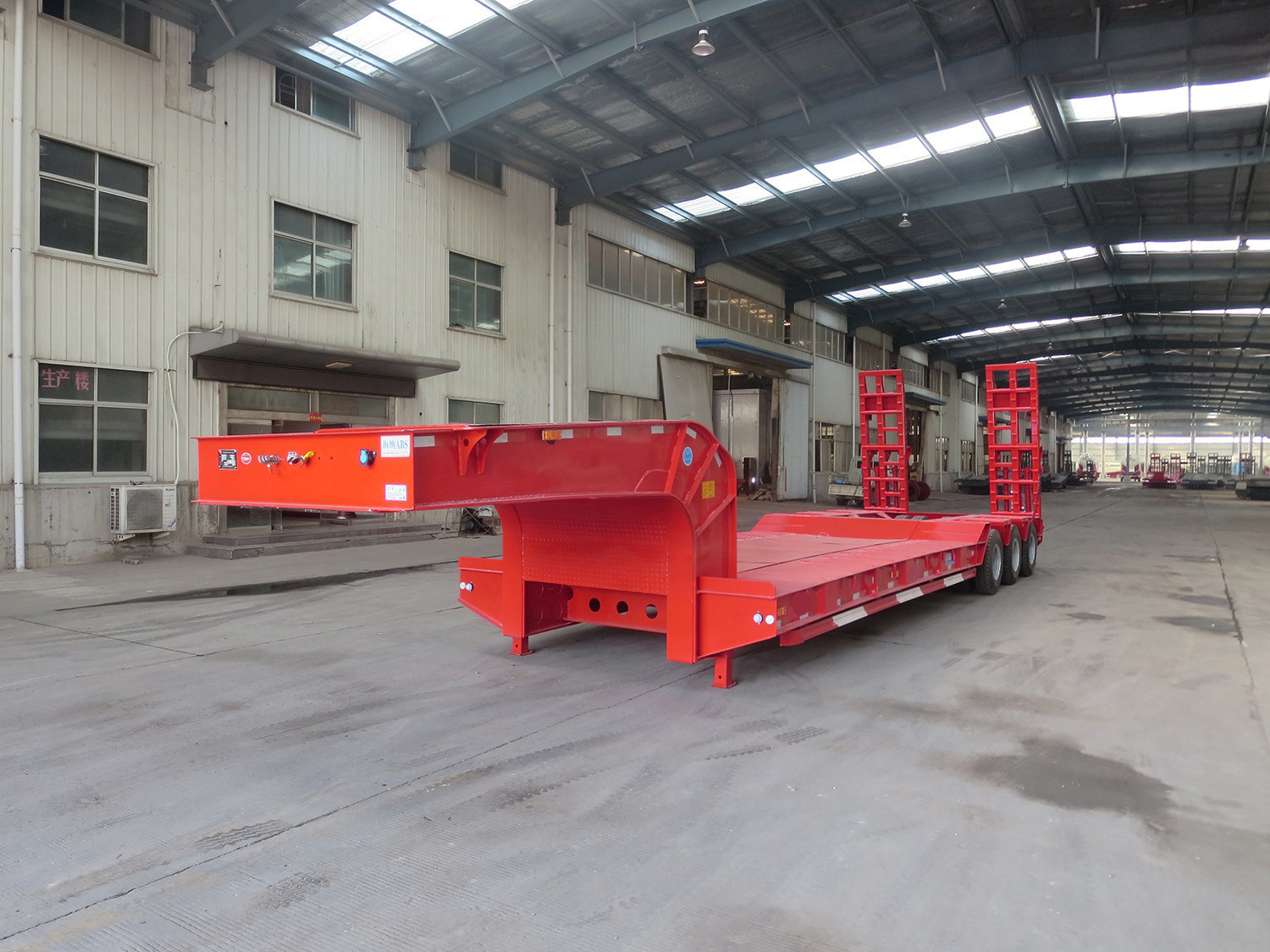

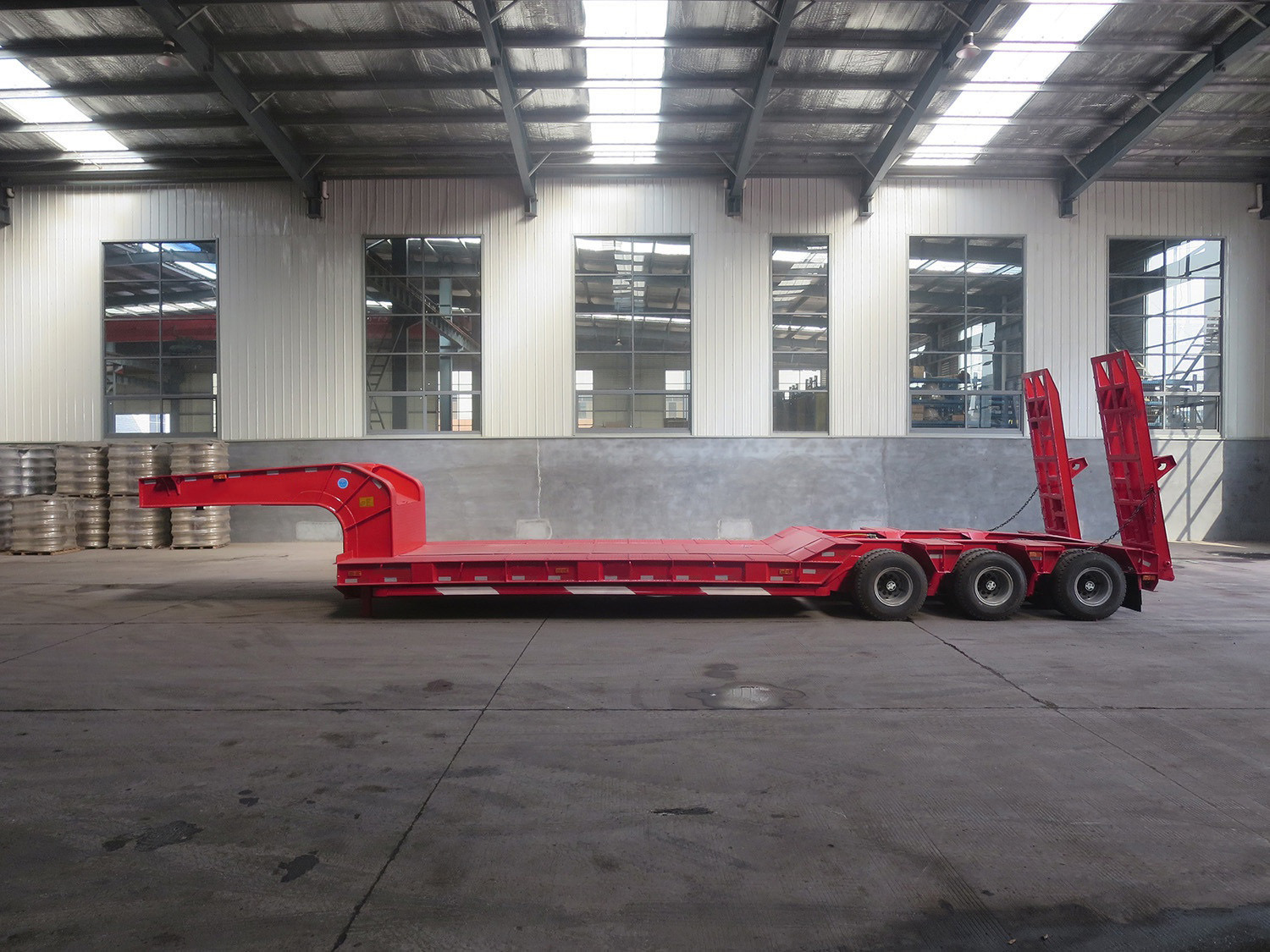

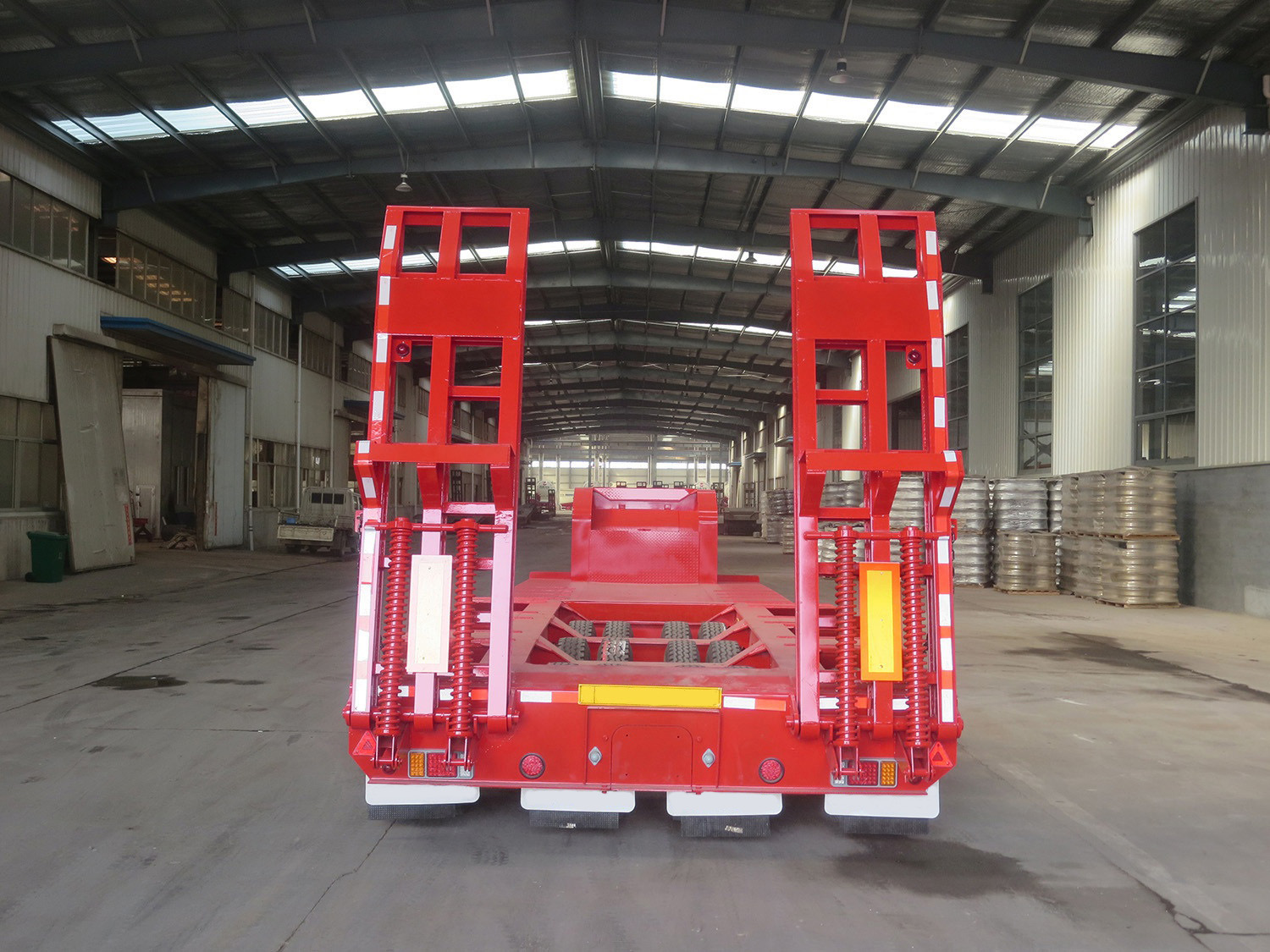

Type | Low-bed semi-trailer |
Overall Dimension (mm) | Length×width×height:13750,13000,12500×3000×1800,3100,3300,3500 |
Total weight (Kg) : | 38000 |
Approach Angle/Departure Angle: | -/28 |
Front/rear suspension (mm) : | -/1100 |
Wheelbase (mm) : | 8450+1220+1220 |
Axle Load: | -/7000/7000/7000(three lines and six axles) |
number of axles: | Three-wire six-axis |
Number of spring pieces: | -/-/-/- |
Number of tires: | 24 |
Tire Specifications: | 8.25R16LT 6PR |
Front wheel base: | / |
Rear wheel base: | 2480/2480/2480 |
Others: | The height of the cargo platform bearing surface from the ground is 750mm, 800mm, 930mm, 950mm, which is only used for transporting non-removable objects. The total height without climbing ladders is 1800mm. The installation position of the tail marking board when not climbing ladders is optional, and the external dimensions are long/semi-trailer traction pin to the front end of the vehicle distance/wheelbase/rear suspension. The corresponding relationship is: 13750/1760/8450 + 1220 + 1220/1100; 13000/1010/8450 + 1220 + 1220/1100; 12500/510/8450 + 1220 + 1220/1100. The body reflective logo has been installed on the side and rear. Side protection material: Q235B, connection method: bolt. The body parts replace the rear lower protection, and the rear structure is off the ground: 400mm. ABS system model: HNABS4S/4M, ABS system manufacturer: Liangshan Haina Electronic Technology Development Co., Ltd |
