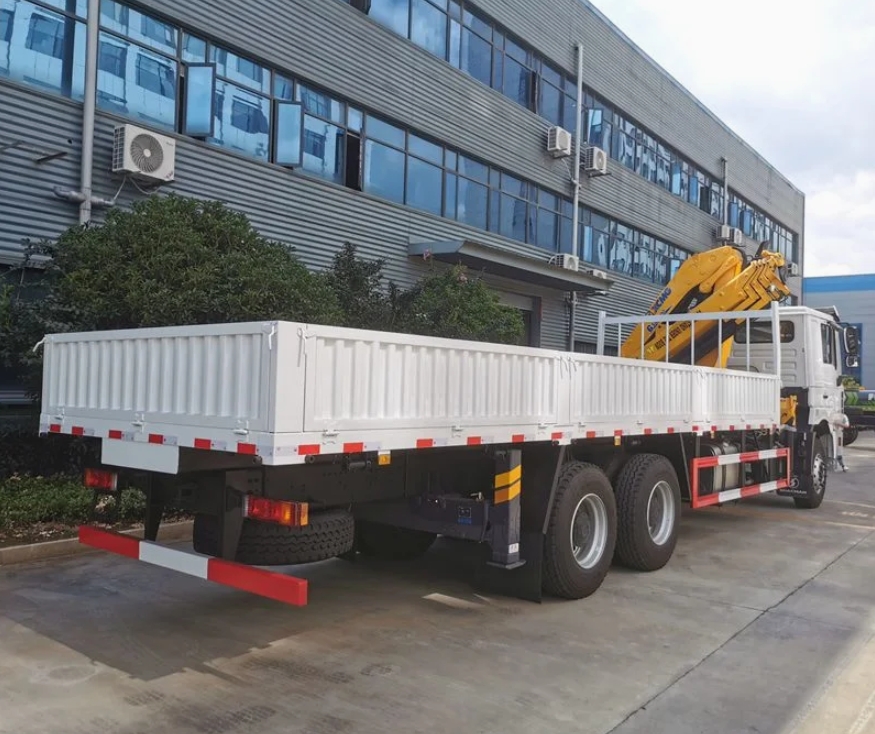

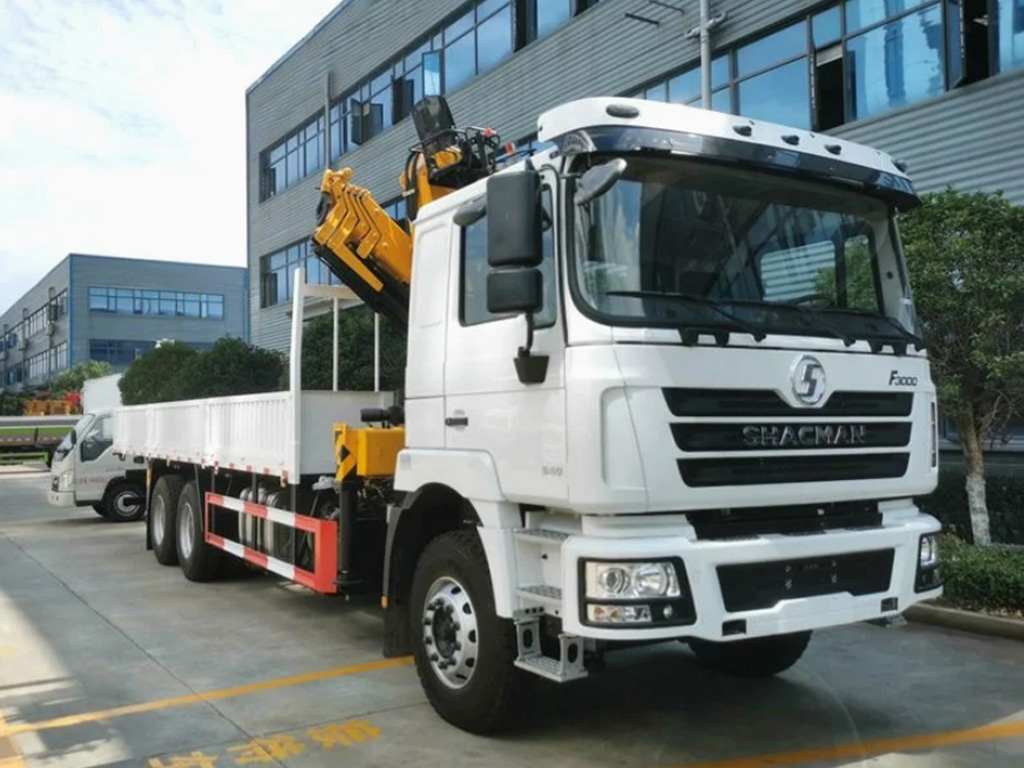

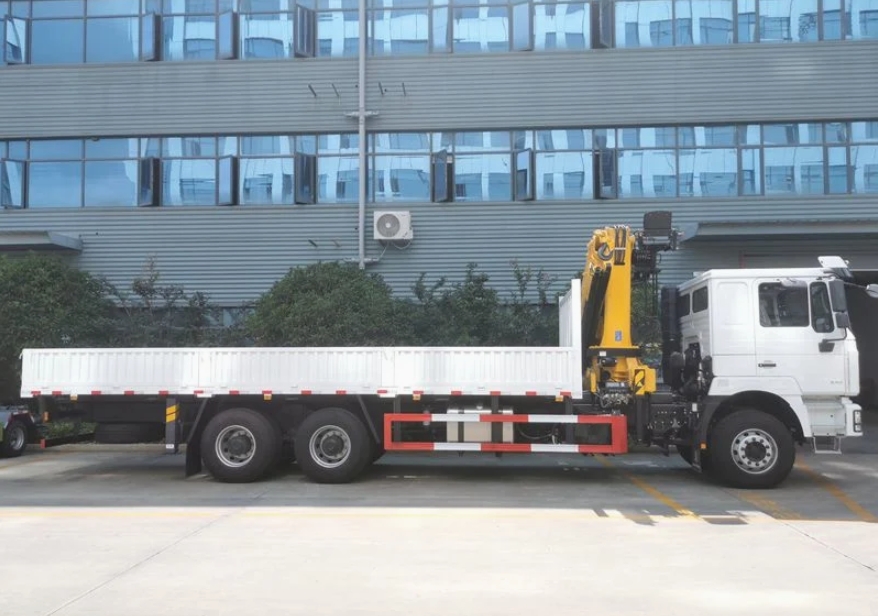

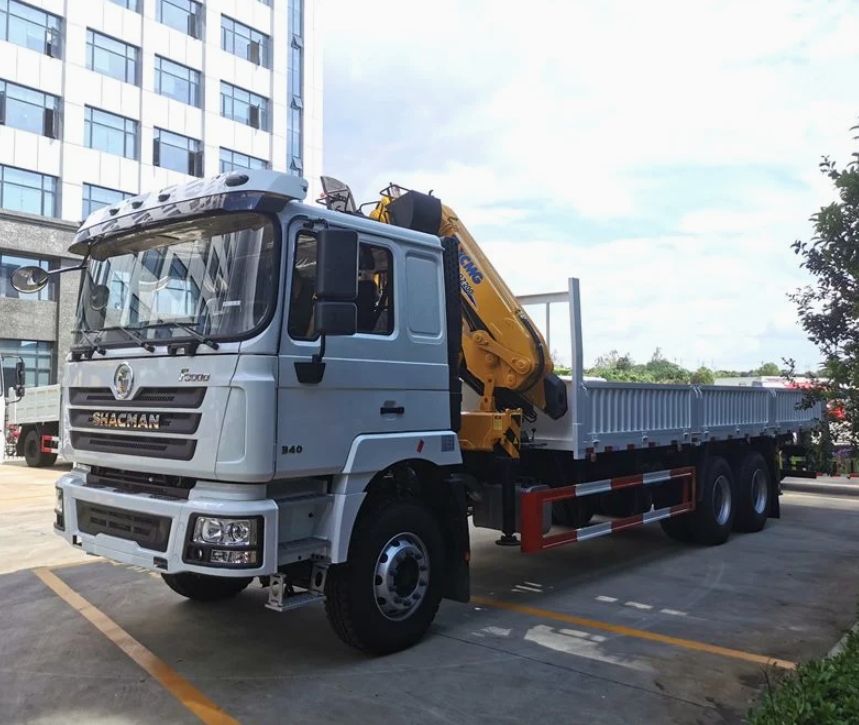

| General | Vehicle Name | Shacman 6×4 truck with crane |
| Chassis Brand | Shacman | |
| Overall Dimension(mm) | 12000 * 2550 * 3780 | |
| GVW(kg) | 17000 | |
| Payload(KG) | 7870 | |
| Cab | Cab Seat | 3 |
| Air Conditioner | Yes | |
| Engine | Fuel Type | Diesel |
| Engie Model | WP9H350E62 | |
| Engine Brand | Weichai | |
| Power(KW) | 340HP | |
| Emmission Standard | Euro 2/3/4/5/6 | |
| Chassis | Drive Type | 6X4 LHD/RHD |
| Transmission | 6-speed gearbox, Manual | |
| Wheelbase(mm) | 5775+1400mm | |
| Tyre Specification | 11.00R20 18PR | |
| Tyre No.(pcs) | 10+1 | |
| Max Speed(km/h) | 110 | |
| Paint | as your required | |
| ABS | Yes | |

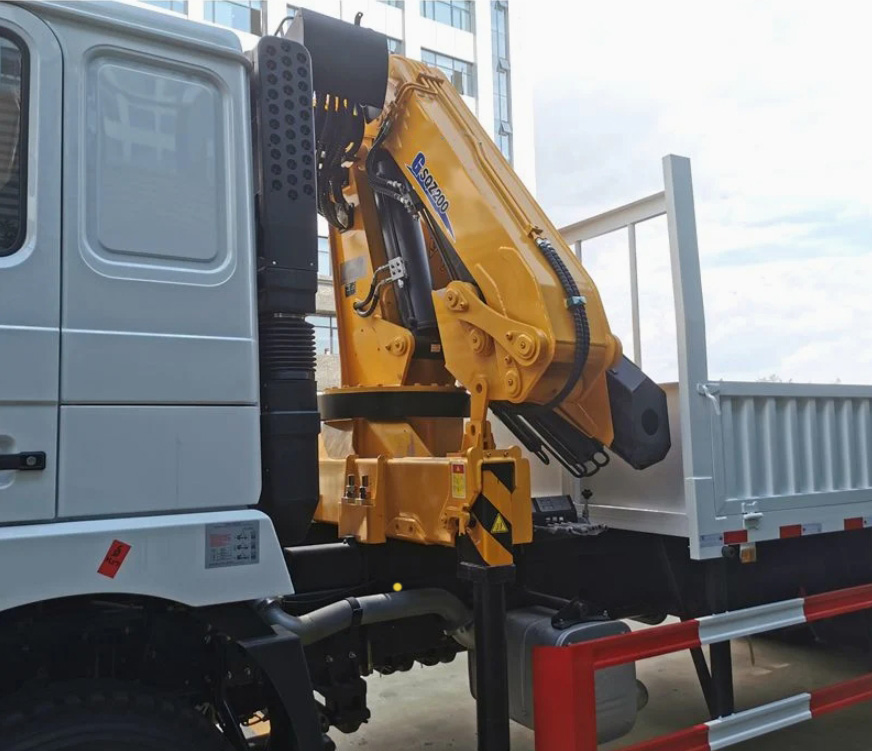

| Superstructure | Crane | 6.3Ton/8Ton/10Ton/12Ton/14Ton Crane |
| Box material | Bottom 4 sides 3 | |
| Crane type | Straight Telescopic or folding arm | |
| box size | 9600 X2450 x600mm | |
| Optional function | 1. knuckle boom crane. | |
| 2. Hydraulic tipper box. | ||
| 3. Box thickness according to requirement.4. Box height could be nominated | ||
| 5. Brick clamping apparatus | ||
| 6. Remote control operation | ||
| 7. Grab bucket | ||
| 8. Aerial work basket | ||
| 9. Drill | ||
| 10.Double row cab |
